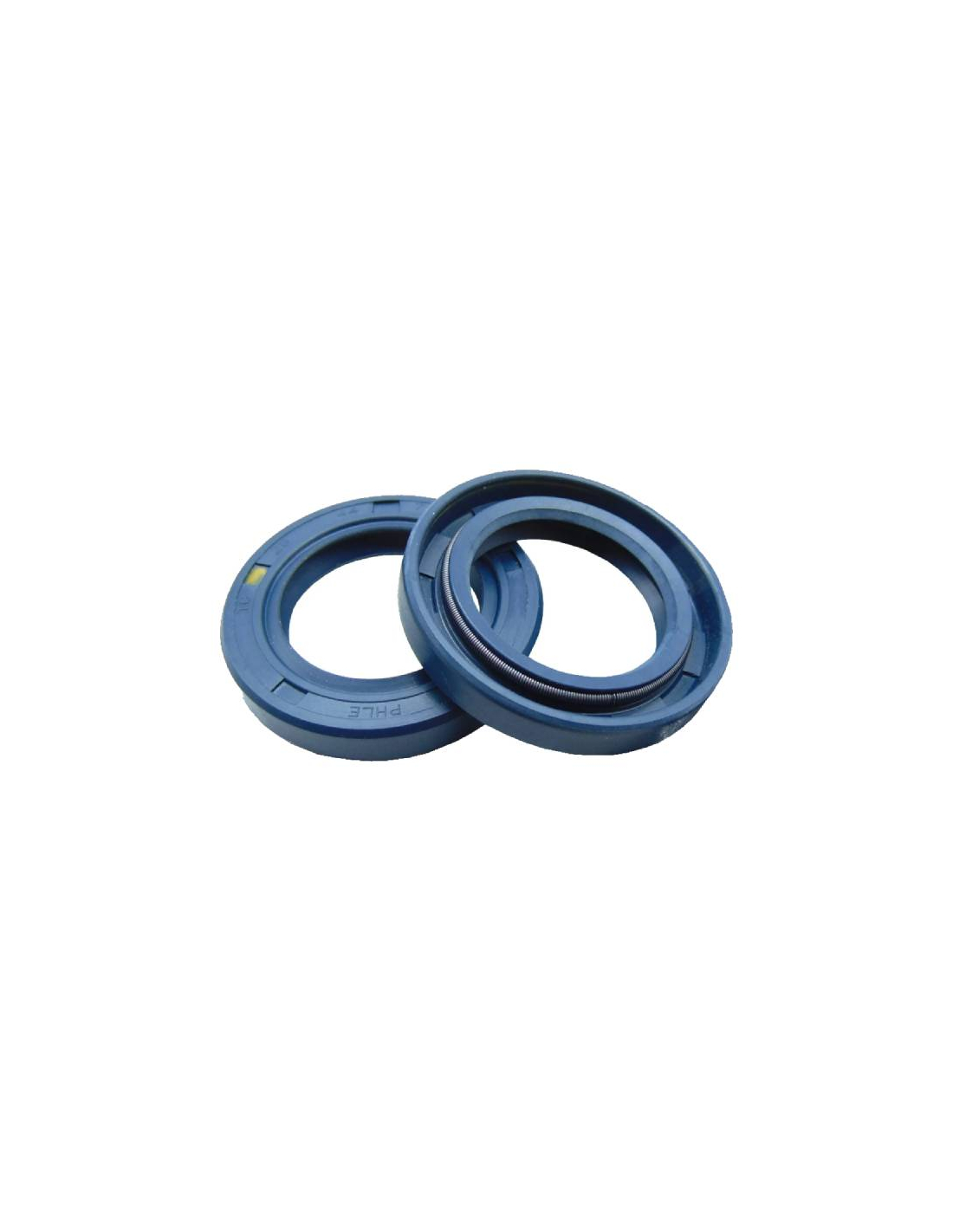

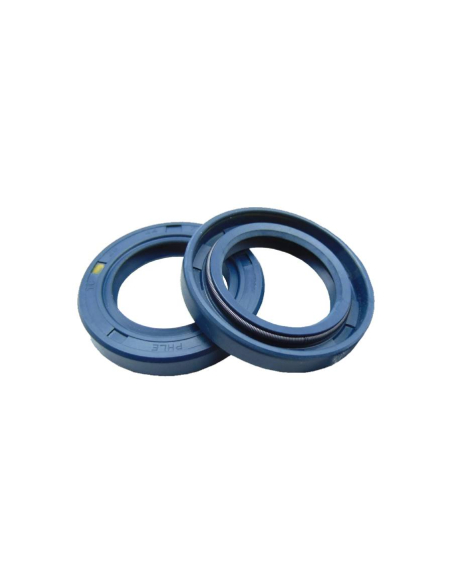

Radial seal 17x37x7 double lip TC NBR Blue
Radial seal 17x37x7 double lip TC NBR Blue

Radial seal 17x37x7 double lip TC NBR Blue

€2.52 Tax included

€2.08 tax excl.

Radial seal for universal use measuring 17x37x7, NBR material in blue with double lip and sealing gaskets. Metal armor structure covered with elastic rubber in blue. They have high resistance to wear, suitable for use with mineral oils and greases, indicated for inorganic, alkaline and acidic compounds in concentration.


Reference: R-17X37X7 TC-NBR BLUE


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Quantity Unit price You Save
10 €2.01 €5.03
No queries yet, leave the first!

The seals are technical joints for fluid sealing in rotating shafts, made of blue NBR material (nitrile rubber), with double lip and sealing gaskets; The elastomer membrane has a toroidal spring on the vertical sealing edge to maintain the tightness of the shaft. These seals are universally used due to its high wear resistance and temperature range.


They have an outer elastic rubber cover with an inner metal reinforcement that provides rigidity and straightness to the seal, at the same time that it provides a perfect seal between the outside of the seal and the housing hole, even in rough housings with great expansion.

Nitrile rubber or NBR is characterized by having good oil resistance, high tensile strength, high water absorption, high resistance to breakage and wear, resistance to temperatures of 125ºC in oil, 100ºC in air and 80ºC in water. .







As a complement to the assembly instructions of the DIN 3760 standard, it is very important to ensure that after assembly, the seal is completely perpendicular to the axis.



Characteristics:
  • Manufacturer: Technox
  • Reference: R-17X37X7 TC-NBR BLUE
  • Shaft diameter (d): 17 mm
  • Outer diameter (D): 37mm
  • Width (H): 7mm
  • Design: TC (double lip)
  • Admissible low temperature: -40ºC
  • Material: Blue NBR



The following table shows the designation of different manufacturers depending on the lip shape and cover type:





Material for professional use, install in compliance with the regulations in force at the installation site.


For more information you can download the technical sheet by clicking on the "Attachments" tab
