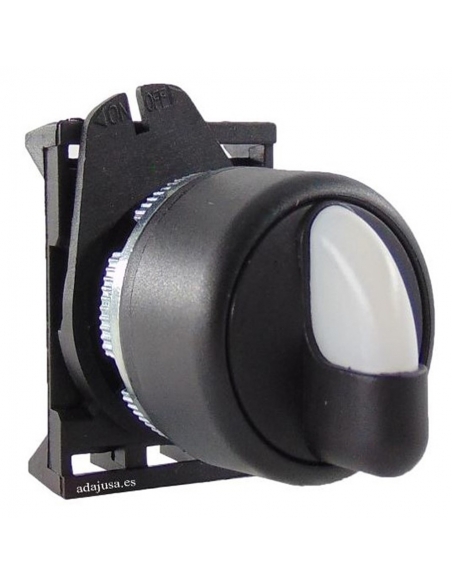

Selector head 3 fixed positions 45o - Giovenzana

€5.89 Tax included

€4.87 tax excl.

Selector head three positionsmaintained, angle of rotation 45o and indication in white, diameter of the drill for fixing 22.5mm. Support for contacts included, allows the assembly of up to 2 contacts, both open and closed.

Ref: PSMB5T0

Logotipo Giovenzana para fichas

No queries yet, leave the first!


Selector head of three fixed positions, atthe turning 45º, indicated in white. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 2 contacts, both open and closed.

European manufacture according to EN ISO 13850, in high-strength technopolymer, with mechanical visual indication of condition, located on the front of the button easy indication, allows to identify if the pushbutton is activated or not.

This emergency pushbutton head can only accommodate contact blocks of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable fastening: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.
  • 1 nc (NC), screw cable fixation: GIPL004001.
  • 1 no (NO), screw cable fixation: GIPL004002.

The supply does not include any contact, it will have to be ordered separately.

dimensions:

https://adajusa.es//img/cms/Giovenzana/Pulsadores%20Pegasus/Dimensiones%20selector%20Giovenzana%20Pegasus.JPG

https://adajusa.es//img/cms/Giovenzana/Pulsadores%20Pegasus/Imagen%20selector%202%20posiciones%2045%20grados%20Giovenzana.JPG

Mounting the contact blocks on the media (contact blocks not included in the supply):

Montaje pulsadores serie Pegasus

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
