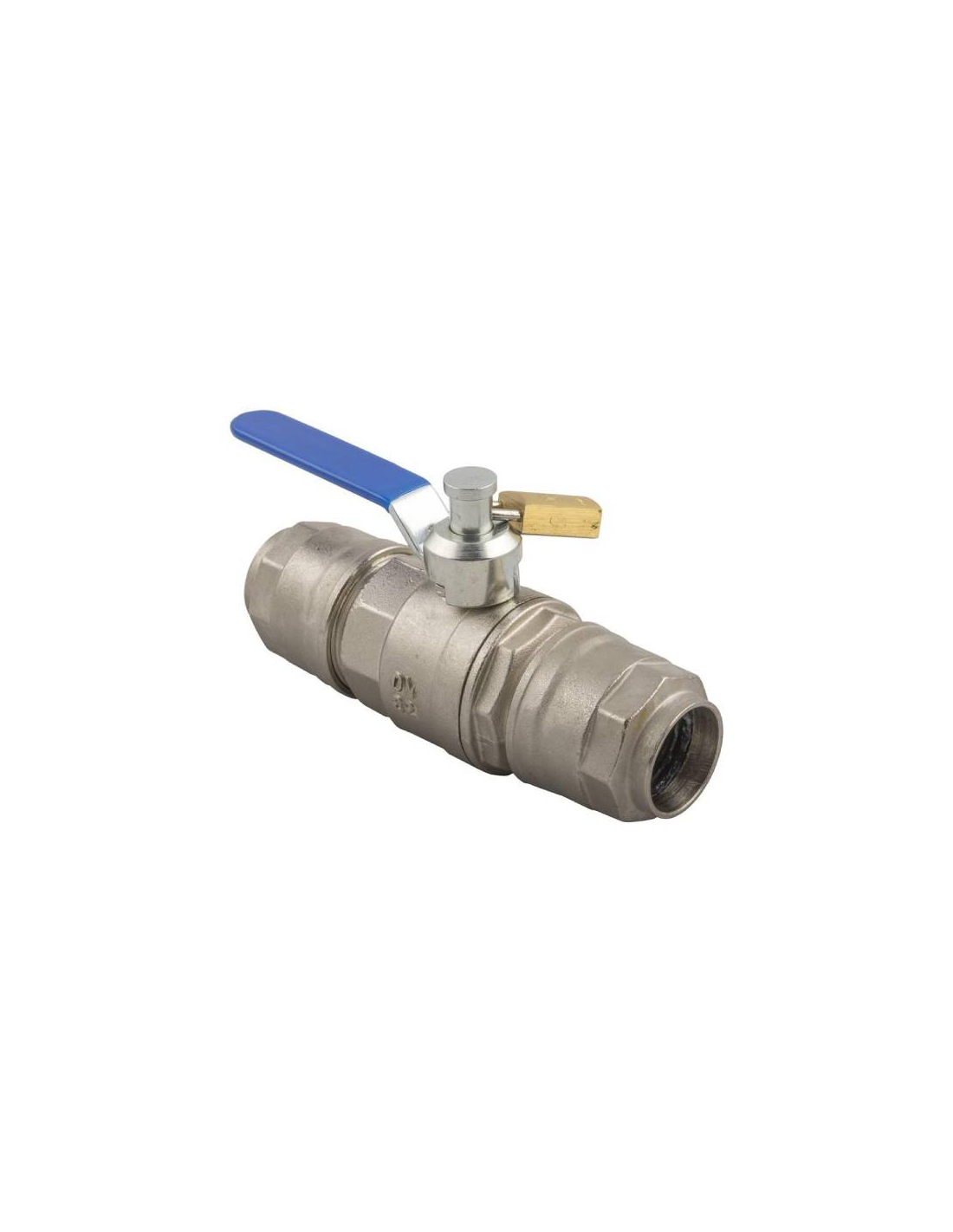

20mm tube-tube 2 way ball valve with padlock -...
20mm tube-tube 2 way ball valve with padlock - Aignep

20mm tube-tube 2 way ball valve with padlock - Aignep

€59.59 Tax included

€49.25 tax excl.

Shut-off valve or 2 way ball valve, tube/tube connection for 20mm outer diameter, actuation by lever and padlock included. Automatic type valve for quick and easy assembly in networks and installations of compressed air, vacuum and inert gases. Made of brass.


Reference: 90705 20

aignep
mini-regulation
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Two- way ball valve, lever-actuated tube/tube type. Cut-off valve for 20mm outer diameter tube, quick and easy installation. Made of brass, it guarantees a reliable seal and a secure connection between components. Includes security lock to prevent unwanted manipulation of the valve status.


Ball valves are suitable for use in compressed air installations and other pneumatic applications in order to facilitate maintenance operations, since they are designed to section the system in localized interventions, allowing the passage of air to be closed. They are very useful for the correct evacuation of condensate in installations where the use of condensate-free air is required. They are on-off type valves with two possible positions, open or closed ; In the ON position, the fluid from the circuit passes through the valve and in the OFF position, it completely blocks the flow of fluid.




Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 90705 20
  • Series: Infinity
  • Tube diameter: 20mm
  • Material: Brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard).










https://vimeo.com/358320920

Material for professional use, install in compliance with the regulations in force at the installation site.
