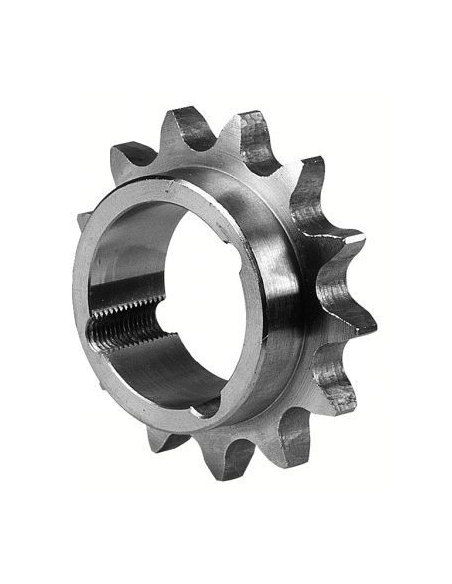

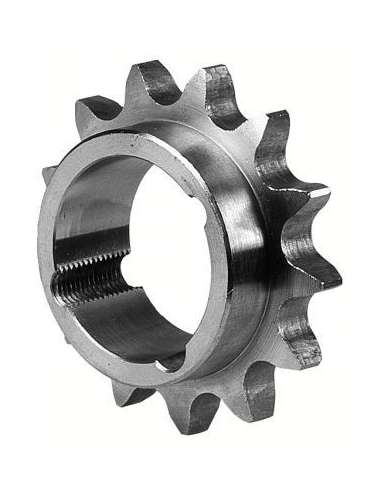

Simple sprockets Z14 with taper T1610 16B-1 ISO 606

€54.17 Tax included

€44.77 tax excl.

Simple sprockets with cap taper lock 1610 for roller chain 16B-1 according to European standard DIN ISO 606

Teeth: 14

ISO: 16B-1

Taper lock available in various shaft diameter sizes. Select the desired measurement.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Simple sprockets with cap lock taper 1610 roller chain 16B-1 according to European standard DIN ISO 606

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

Manufacturer: Technox

Taper reference: T.L 1610-0xx
Pinion reference: PINHON Z14 1-T16108

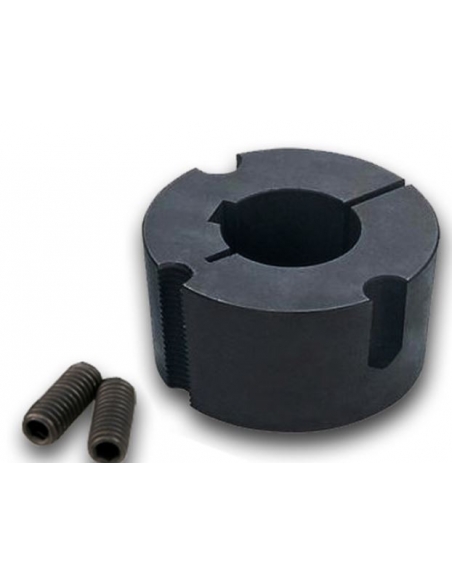

Taper features:

Dimensiones-taper

  • Size: 1610.
  • Available diameters: 14,15,16,17,18,19,20,21,22,24,25,28,30,32,35,38,40 and 42.
  • Tightening torque: 19.6.
  • D1: 57 mm.
  • Type: A.
  • S: 25.4.

Characteristics pine nut:


  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17.02 mm
  • Teeth: 14
  • Taper Lock: 1610



Material for professional use, install in compliance with the regulations in force at the place of installation.
