Simple sprockets Z14 with taper T1108 10B-1 ISO 606

€25.80 Tax included

€21.32 tax excl.

Simple sprockets with cap lock taper 1108 for roller chain 10B-1 according to European standard DIN ISO 606

Teeth: 14

ISO: 10B-1

Taper lock available in various shaft diameter sizes. Select the desired measurement.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Simple sprockets with cap lock taper 1108 roller chain 10B-1 according to European standard DIN ISO 606

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

Manufacturer: Technox

Taper reference: T.L 1108-0xx
Pinion reference: PINHON Z14 5/8-T11088

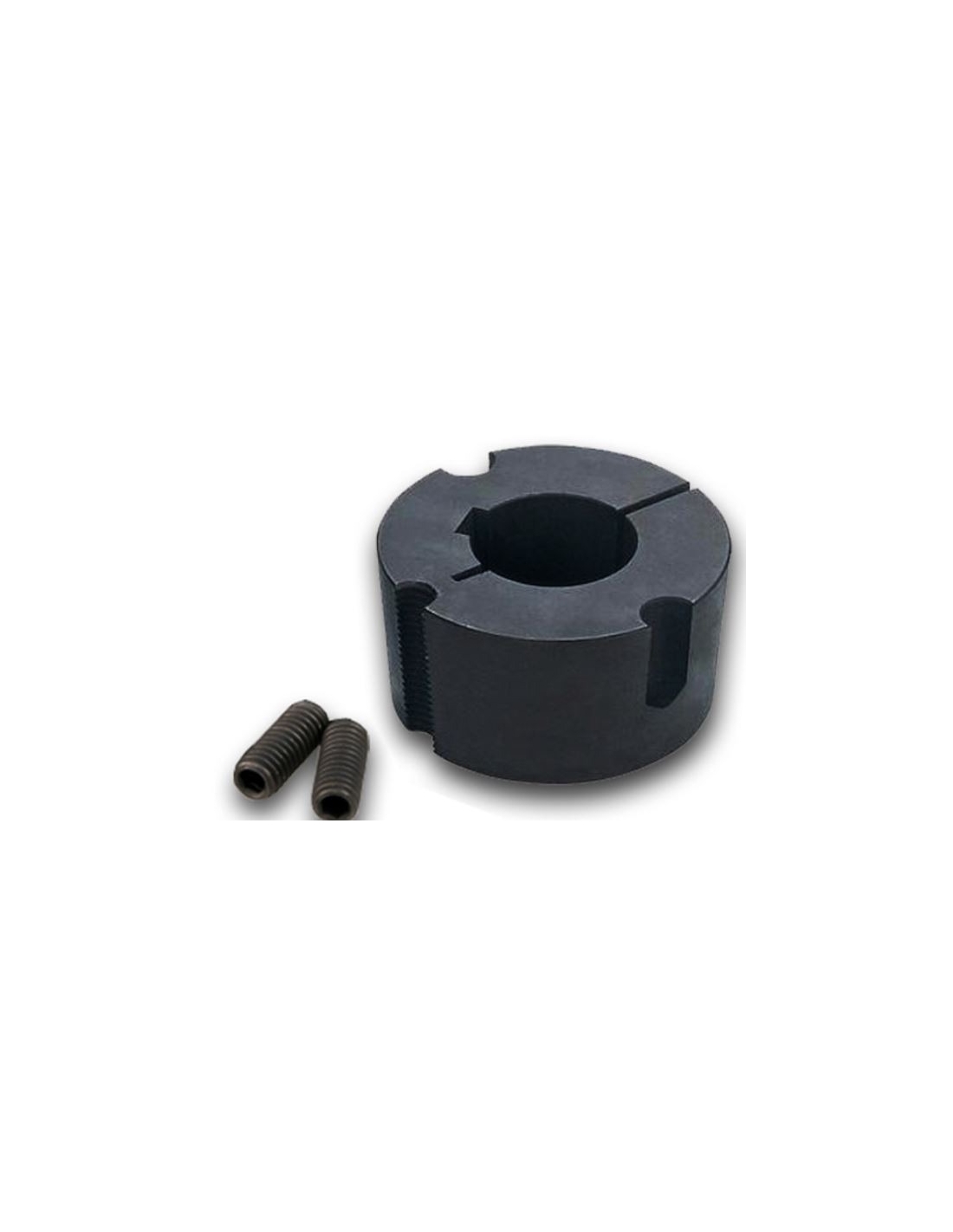

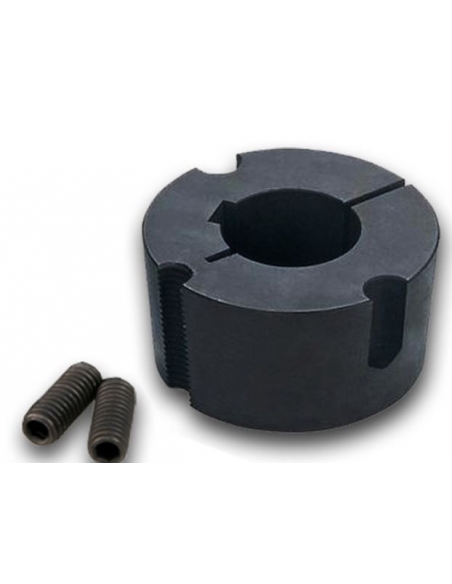

Taper features:

Dimensiones-taper

  • Size: 1108.
  • Available diameters: 10,11,12,14,15,16,17,18,19,20,22,24,25 and 28.
  • Tightening torque: 5.6.
  • D1: 38 mm.
  • Type: A.
  • S: 22.3.

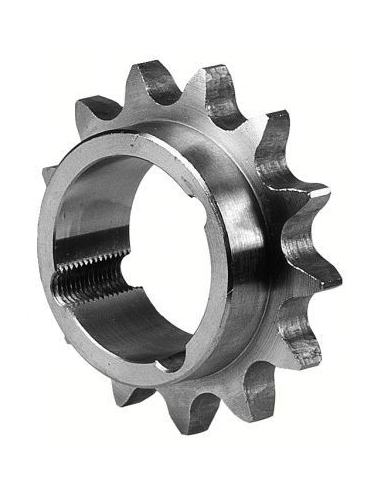

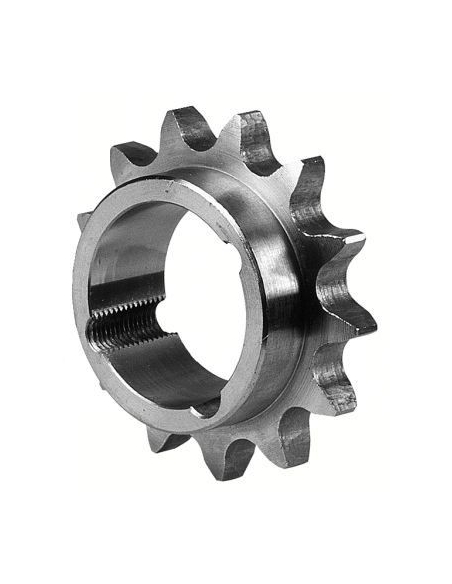

Characteristics pine nut:


  • 5/8" x 3/8" mm ISO 10B-1
  • 15.875 x 9.65 mm
  • Teeth: 14
  • Taper Lock: 1108



Material for professional use, install in compliance with the regulations in force at the place of installation.
