Single-phase autotransformer 5000VA 230/400Vac IP-20

Special manufacturing material
€272.47 Tax included

227.06 tax excl.

ATI2 5000

5000VAsingle-phase encapsulatedreversible autotransformer, allows voltage adaptation between 230/400Vac. Degree of protection IP-20.

It allows to adapt the voltage in small machinery and household appliances in an economical way.

Reference: ATI2-5000

Esquema electrico autotransformador 230-400

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Single-phase autotransformer encapsulated in resin, for voltage change, reversible, intended for voltage change. They are indicated when it is required to adapt the voltage from 230 to 400V / 400 to 230Vac, in an economic way, without galvanic separation. Their usual field of application is the use in small machinery and household appliances.

Manufactured with low-loss magnetic sheet and with wire windings of copper, providing high performance.

Technical characteristics:

  • Reference: ATI2 5000
  • Transformer ratio: 230/400 Vac Reversible
  • Power: 5000VA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Test voltage: 3KV between ground.
  • Encapsulation: Self-extinguishing resin.
  • Protection: IP-20.
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certificate: UNE-EN 61558.

Indicaciones de medidas autotransformadores IP-20Dimensiones autotransformadores 230-400V IP20

The transformer is supplied without any type of protection against overload, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Le transformateur a t'il des points d'entrées sélectionnables?
Par exemple un choix 230- 260. ou (+ 10% / +15%)
Ou, avez-vous un autotransformateur 220v-260v.?
Answer

Bonjour,

Merci pour votre message.

Nous vous confirmons que nous disposons d’un transformateur monophase de 5000 VA, modèle IP00, dont la tension d’entrée et de sortie peut être définie librement par le client au moment de la commande.

? Il est donc possible de le fabriquer avec une entrée 220 V et une sortie 260 V, ou toute autre combinaison comprise entre :

  • 100 à 500 V pour le primaire

  • 10 à 500 V pour le secondaire

➡️ Voici le lien vers le produit concerné :
https://adajusa.es/es/transformadores-monofasicos/9870-transformador-5000va-ip00-tensiones-especiales-8435532898702.html

? Délai estimé de fabrication : à confirmer au moment de la commande (environ 10–15 jours ouvrés)
? Prix : 490,26 € TTC (expédition gratuite vers l’Espagne)

⚠️ Il s’agit d’un matériel de fabrication spéciale, non modifiable ni annulable une fois en production. Aucune prise en charge par PayPal ni contre remboursement.

Nous restons à votre disposition pour toute précision ou pour établir une offre formelle.

Important : Produit destiné à un usage professionnel. L’installation doit être réalisée par du personnel qualifié, conformément à la législation en vigueur.

Cordialement,
ADAJUSA
https://adajusa.fr

SRL on 05/30/2025 14:21:36
Question
Quelle est la tension d'entrée maximale?
Answer

Bonjour,

Merci pour votre message.

Concernant l’autotransformateur monophase encapsulé de 5000 VA 230/400 V (référence ATI2-5000), nous vous confirmons que la tension d’entrée maximale dépend du sens d’utilisation, car il s’agit d’un transformateur réversible.

? Tensions d’entrée maximales recommandées :

  • Si utilisé de 230 V vers 400 V → tension d’entrée maximale : 253 V (limite haute conforme à la norme IEC pour une alimentation 230 V +10 %)

  • Si utilisé de 400 V vers 230 V → tension d’entrée maximale : 440 V (tolérance maximale en réseau 400 V +10 %)

⚠️ Important :

  • Ce transformateur ne possède pas de protection thermique intégrée.

  • Il est encapsulé en résine (refroidissement naturel) avec isolation classe B (130 °C) et bobinages classe N (200 °C).

  • Toute utilisation au-delà de ces tensions peut entraîner une surcharge thermique et réduire sa durée de vie.

Nous vous recommandons fortement d’utiliser une protection contre les surtensions et les surcharges en amont du transformateur.

Restons à votre disposition pour toute information complémentaire.

Important : Veuillez vérifier que le produit est compatible avec votre installation. Chez ADAJUSA, tous les produits doivent être installés par du personnel qualifié.

Cordialement,
ADAJUSA
https://adajusa.fr

SRL on 05/30/2025 14:13:01

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Special manufacturing material
Single-phase and three-phase autotransformers

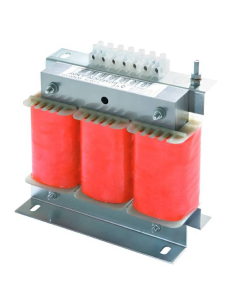

Three-phase 230/400V 4KVA reversible autotransformer IP00 XMN Series

MANUMAG
XMN02240620
€183.77 (€153.14 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 4kVA without box, IP00 protection degree. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors,...
Special manufacturing material
Single-phase and three-phase autotransformers

Three-phase autotransformer 230/400V 7.5KVA reversible IP00 XMN Series

MANUMAG
XMN02275620
€264.82 (€220.68 tax excl.)
Three-phase reversible voltage autotransformer 230/400Vac of 7.5kVA without box, IP00 protection degree. Allows adaptation of three-phase voltages 230Vac to 400Vac or of three-phase voltages 400Vac to 230Vac. Generates neutral.Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors,...

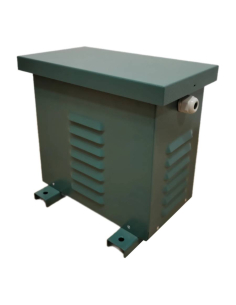

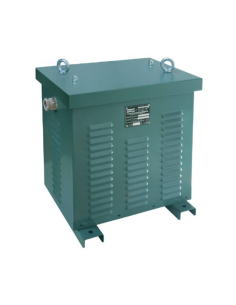

Three-phase reversible autotransformer with 0.5 KVA box XMN series | ADAJUSA | price Three-phase reversible autotransformer with 0.5 KVA box XMN series | ADAJUSA | price 2
