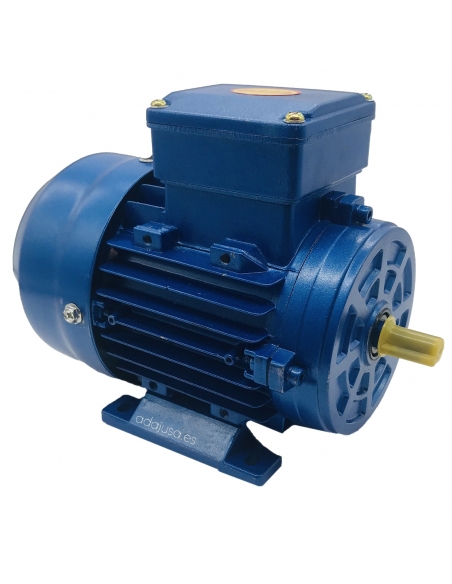

Single-phase motor 3Kw 4HP 230V 1500 rpm high starting torque, Flange B3 foot

€348.12 Tax included

290.1 tax excl.

SL100L14B3

Single-phase electric motor 3kW (4HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SL-100L1-4 B3
  • Voltage: 230Vac 50Hz.
  • Power: 3Kw - 4HP
  • Type: High boot torque.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B3 foot
  • Shaft diameter: 28mm.
  • Size: 100(100L1)
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

6 questions about the product
Privacy
Shipments
Returns


Single-phase electric moto  3kw (4HP) 230Vac 50Hz r, 4 poles (1500 rpm), B3-legged flange and high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SL-100L1-4 B3
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 3Kw (4HP).
  • High start torque.
  • Number of poles: 4 (1500 rpm).
  • Nominal intensity (In): 17A
  • Starting intensity (Ia): 95
  • Revs: 1430 rpm.
  • Yield: 79%
  • Power factor (Cos): 0.97
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.8
  • Starting torque / Nominal torque (Ts/Tn): 2.3
  • Permanent capacitor: 60uF/450V
  • Starter capacitor: 400uF/300V
  • Service: permanent S1
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft Diameter: 28mm
  • Enclosure Size: 100(100L1)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 83.
  • Weight: 30 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Salve ho visionato questo motore vorrei sapere se è possibile fargli fare l’inversione di marcia,ovvero farlo girare sia in senso anti orario che orario ?
Dovrei montarlo su un tornio parallelo per metallo ora ho un motore 380 V da 4hp e dovrei farlo funzionare con la corrente di un abitazione normale calcolando che ad oggi possiedo 6kw 220v nella mia abitazione i 4 hp dichiarati sono reali ?
Answer
Buongiorno.

Un motore monofase può ruotare in senso orario o antiorario, tutto dipende da come è collegato nella morsettiera, nel suo caso, visto che vuole montarlo su un tornio, ha bisogno di un inverter monofase per farlo ruotare in senso orario o antiorario come desidera.

4 Hp equivalgono a 2944W, il problema saranno i picchi di avviamento generati, che possono arrivare a 5 volte la corrente nominale di un motore.

https://adajusa.it/it/motores-monofasicos-3000-rpm-brida-b3-patas-alto-par/910-motor-monofasico-3kw-4cv-230v-3000-rpm-alto-par-de-arranque-brida-b3-patas-8435532809104.html

Supponiamo di volere una velocità massima di 3000 giri/min.

Produttore/Importatore: Motorseg
N. rif.: SL-100L-2 B3
Tipo di motore: asincrono a gabbia di scoiattolo.
Tensione: 230 Vac. 50Hz.
Potenza: 3Kw (4CV).
Elevata coppia di spunto.
Numero di poli: 2 (3000 rpm).
Corrente nominale (In): 16,6A
Corrente di avviamento (Ia): 95
Giri: 2830 giri/min.
Efficienza: 80%.
Fattore di potenza (Cos): 0,98
Coppia massima / Coppia nominale (Tmax/Tn): 1,8
Coppia di avviamento / Coppia nominale (Ts/Tn): 2,3
Condensatore permanente: 60uF/450V
Condensatore di avviamento: 400uF/300V
Servizio: permanente S1
Grado di protezione: IP55.
Tipo di montaggio: flangia B3 gambe
Diametro dell'albero: Ø28mm
Dimensioni dell'alloggiamento: 100(100L)
Colore: blu.
Materiale dell'alloggiamento: Alluminio.
Livello sonoro (dB): 88.
Peso: 25 kg.
Marchio CE.

Corrente nominale: 16,6 A

Inviamo un link a un inverter monofase per un motore con queste caratteristiche.

https://adajusa.it/it/interruptores-inversores-estrella-triangulo/12379-interruptor-inversor-monofasico-40a-completo-64x64-maneta-roja-giovenzana-8445340123798.html

Tuttavia, verificate che sia conforme alle vostre specifiche.

Saluti

ADAJUSA

Kevin on 05/25/2023 18:03:48
Question
Ce moteur peut il faire fonctionner un pont élévateur
Answer
Bonjour.

S'il s'agit du remplacement d'un vieux moteur, il doit avoir les mêmes caractéristiques que l'original, s'il s'agit d'un nouveau design ...... la fabrication des ascenseurs est régie par une réglementation très stricte, il n'est pas permis de fabriquer soi-même un ascenseur ou un palan, vous devez consulter la loi en vigueur dans votre pays, dans tous les cas si vous voulez acheter un moteur, sélectionnez les paramètres que vous considérez et l'utilisation que vous devez lui donner est votre responsabilité.

Salutations
ADAJUSA
Jean Luc on 02/09/2023 04:44:23
Question
Buenos dias Tengo un elevador de coches de 2500kg que actualmente esta gobernado por un motor trifasico de 3kw ,1430rpm y quisiera sustituirlo por uno para alimentarlo a una red monofásica 230v. Este motor monofásico serviría para sustituir por el trifasico que tiene actualmente el elevador? Tendría fuerza suficiente para funcionar sin problemas?
Answer
Estimado cliente, no es recomendable pasar de trifásico a monofásico dado que se pierde mucha potencia. Un saludo
FERNANDO on 02/27/2022 12:48:57
Question
Se puede poner un interruptor de tres posiciones 1 para que gire a la derecha 0 parado y 2 giró a la izquierda
Answer

Buenos días,

El interruptor inversor que tiene que instalar lo puede ver en el siguiente enlace de nuestra pagina:

https://adajusa.es/interruptores-inversores-estrella-triangulo/interruptor-inversor-monofasico-25a-.html

El modo de conexionado lo puede usted ver en la entrada de nuestro blog.

https://adajusa.es/es/blog/4-inversores-de-giro-para-motores-electricos-monofasicos

De todoas formas, le indico que es una potencia elevada para este tipo de interruptores inversores, aunque por caracteristicas puede hacerlo, si se realizan muchos cilcos o el motor arranca con mucha carga, la duración del interruptor sera reducida. Para estas potencias se suele instalar un inversor mediante contactores e instalar la protección térmica (guardamotor o relé termico) adecuado. Esto ultimo lo tiene usted que hacer tambien con el interruptor. Le indico que un magnetoermico solo no es una protección para motor, sino para linea, y que la garantia no cubre las averias que se puedan producir por sobrecarga en el motor.

Saludos

Faustino on 07/19/2018 23:20:22
Question
quisiera saber si el motor eléctrico monofásico de 3kw (4cv) 230v 1500 rpm brida b3(patas), alto par de arranque con disyuntor ¿ ES REVERSIBLE ? o cual es el sentido de giro, mirando al cabezal del eje.-en éste sentido me hace falta que rote en sentido de lass agujas del reloj.- espero su información .- grac ias .- j.breijo.-
Answer

Buenos días,

Todos los motores asincronos son reversibles, en función del conexionado. Adjunto enlace a nuestro bloc donde puede ver un articulo sobre este tema.

https://adajusa.es/es/blog/1-como-conectar-e-invertir-el-sentido-de-giro-en-motores-monofasicos

Saludos

jesús breijo cribeiro on 07/12/2018 18:31:51
Question
Buenos días. El motor tiene incluido protector térmico en la caja de bornas y condensador. Un saludo
Answer

Buenas tardes,

Si, el motor incluye protector térmico pero solo contra bloqueos en el arranque, es decir, solo proteje cuando el motor no puede arrancar o no alcanza el 70% de las revoluiones para desconectarse el disyuntor centrifugo, que suele ser uno de los problemas mas habituales en los motores monofásicos, problemas en el arranque.

Para protección fina durante la marcha, usar un disyuntor externo:

https://adajusa.es/dhttps://adajusa.es/disyuntores-guardamotores-proteccion-motor/isyuntores-guardamotores-proteccion-motor/

Si se instala diyuntor externo, no hace falta cablear el que tiene instalado de serie el motor.

Nota: El dinyuntor que se instala en la caja del motor tiene que ser cableado en la alimentación del motor para que funcione,

Antonio Palmero on 04/19/2018 09:26:03

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

8 other products in the same category:

Electric motor single-phase 3.7Kw 5HP 230V B3 foot 1500 high torque start | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase Motor 3.7Kw 5HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL120L4B3
€432.84 (€360.70 tax excl.)
Electric motor single-phase 3.7kW (5HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 3,7Kw – 5HP Type: high starting torque. Number of poles: 4. Revolutions: 1500 rpm. Flange: B3 foot Shaft diameter: 28mm. Size: 112(112M2) Energy efficiency: IE1....
Single-phase electric motor 0.37Kw 0.5HP 230V B3 legs 1500 high torque | ADAJUSA | price
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm high starting torque, B3 leg flange

Generico-MOT
SL7124B3
€123.11 (€102.59 tax excl.)
Single-phase electric motor 0.37kW (0.5HP) 230V 1500 rpm B3 leg flange, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-71M2-4 B3 Voltage: 230Vac 50Hz. Power: 0.37Kw – 0.5HP Type: High starting torque. Number of poles: 4. Revolutions: 1500 rpm . Flange: B3 legs Shaft diameter: 14mm. Size:...
Single-phase electric motor 0.55Kw 0.75HP 230V Flange B3 foot 1500 high starting torque| ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 0.55Kw 0.75HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL8014B3
€162.83 (€135.69 tax excl.)
Single-phase electric motor 0.55kW (0.75HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-80M1-4 B3 Voltage: 230Vac 50Hz. Power: 0.55Kw - 0.75HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 19mm. Size: 80(80M1)...
Single-phase electric motor 2.2Kw 3HP 230V B3 foot 1500 high torque | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 2.2Kw 3HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL100L4B3
€295.19 (€245.99 tax excl.)
Single-phase electric motor 2.2kW (3HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-100L-4 B3 Voltage: 230Vac 50Hz. Power: 2.2Kw - 3HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 28mm. Size: 100(100L) Energy...
Single-phase motor 0.25Kw 0.33CV 230V 1500 rpm high starting torque, B3 foot flange
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 0.25Kw 0.33HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL7114B3
€122.47 (€102.06 tax excl.)
Single-phase electric motor 0.25kW (0.33HP) 230V 1500 rpm Flange B3 foot,high starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.25Kw - 0.33hp. Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot. Shaft diameter: 14mm. Size: 71. Energy efficiency: IE1....
Single-phase electric motor 1.1Kw 1.5HP 230V B3 foot 1500 high torque | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 1.1Kw 1.5HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL90S4B3
€215.76 (€179.80 tax excl.)
Single-phase electric motor 1.1kW (1.5HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL90S4B3 Voltage: 230Vac 50Hz. Power: 1.1Kw - 1.5HP Type: Half boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 24mm. Size: 90(90S) Energy...
Single-phase electric motor 1.5Kw 2HP 230V B3 foot 1500 high torque |ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 1.5Kw 2HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL90L4B3
€237.60 (€198.00 tax excl.)
Single-phase electric motor 1.5kW (2HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-90L-4 B3 Voltage: 230Vac 50Hz. Power: 1.5Kw - 2HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 24mm. Size: 90(90L) Energy...
Single-phase electric motor 0.75Kw 1HP 230V B3 foot 1500 high torque | ADAJUSA
Single-phase motors 1500 rpm flange B3 (foot) high starting torque

Single-phase motor 0.75Kw 1HP 230V 1500 rpm high starting torque, Flange B3 foot

Generico-MOT
SL8024B3
€171.41 (€142.84 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SL-80M2-4 B3 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: High boot torque. Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot Shaft diameter: 19mm. Size: 80(80M2) Energy...

Customers who bought this product also bought:

Phase-free or neutral control relay Phase-free or neutral control relay 2
Control and protection relays, thermostats, temperature probes

Phase or neutral fault monitoring relay

TELE
E1YF400V01085
€140.44 (€117.03 tax excl.)
Phase failure, low voltage, loss of neutral on three-phase lines, the relay detects when the voltage on all phases exceeds 85% of the rated voltage and the neutral is present, the R output switches on. When a fault occurs, the relay disconnects. Associated to a contactor or circuit breaker, it allows to protect machinery and installations. Reference:...

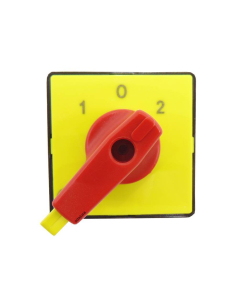

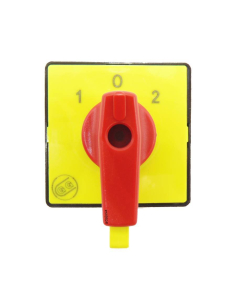

Inverter switch single-phase 25a full 48x48 red - Giovenzana
