Single-phase motor 0.09Kw 0.12CV 230V 1500 rpm...
Single-phase motor 0.09Kw 0.12CV 230V 1500 rpm half starting torque, B3 leg flange

Single-phase motor 0.09Kw 0.12CV 230V 1500 rpm half starting torque, B3 leg flange

€77.80 Tax included

€64.30 tax excl.

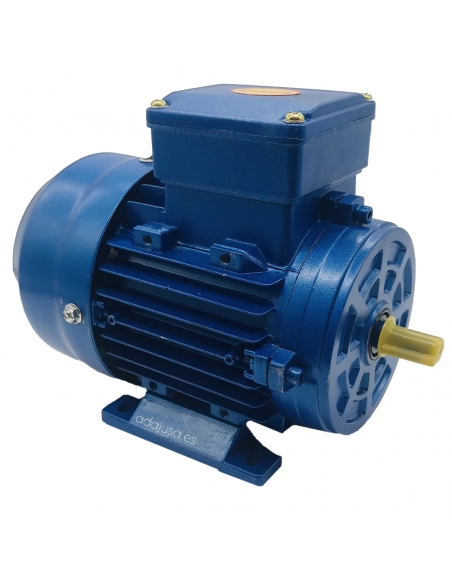

Single-phase electric motor 0.09kW (0.12CV) 230V 1500 rpm Flange B3 legs , half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-56M2-4 B3
  • Voltage: 230Vac 50Hz.
  • Power: 0.09Kw – 0.12CV
  • Type: Half starting torque.
  • Number of poles: 4.
  • Revolutions: 1500 rpm .
  • Flange: B3 Legs
  • Shaft diameter: 9mm.
  • Size: 56M2
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Single-phase electric motor of 0.09kw (0.12CV) 230Vac 50Hz, 4 poles (1500 rpm ), type B3 flange legs and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-56M2-4 B3
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.09 Kw (0.12 HP).
  • Medium starting torque.
  • Number of poles: 4 (1500 rpm ).
  • Nominal current (In): 0.83A
  • Starting current (Ia): 3
  • Revolutions: 1370 rpm .
  • Performance: 51%
  • Power factor (Cos): 0.92
  • Maximum torque / Nominal torque (Tmax/Tn): 1.75
  • Starting torque / Nominal torque (Ts/Tn): 0.45
  • Permanent capacitor: 6uF/450V
  • Service: continuous S1
  • Protection degree: IP55.
  • Fastening type: Flange B3 Legs .
  • Shaft diameter: Ø9mm
  • Case size : 56 (562)
  • Color blue.
  • Housing material : Aluminum.
  • Sound level (dB): 63.
  • Weight: 3.8 kg.
  • CE marking.
For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Dimensions of B3 single-phase motors

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.
