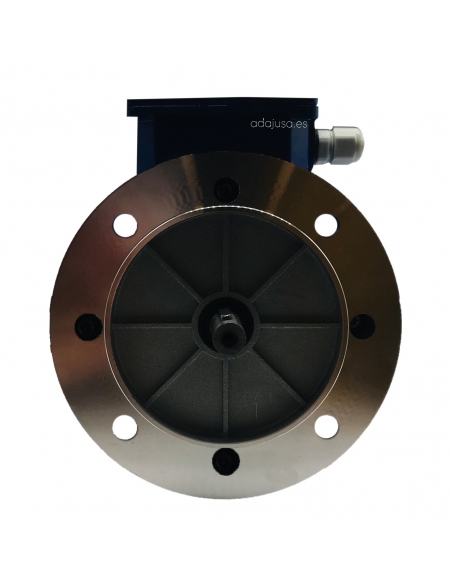

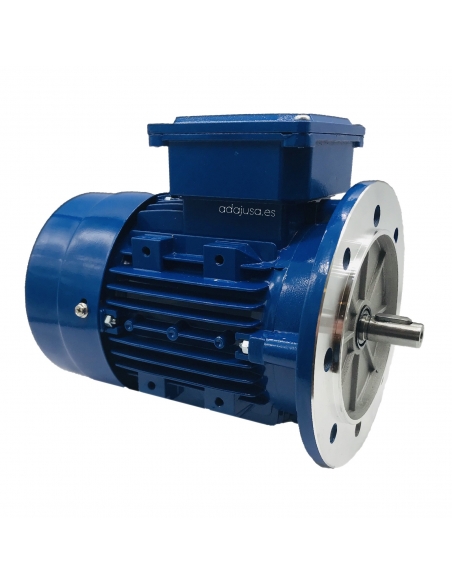

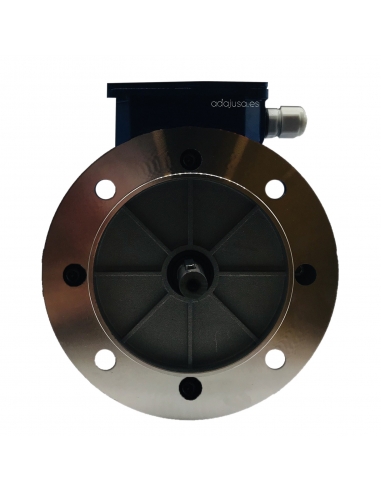

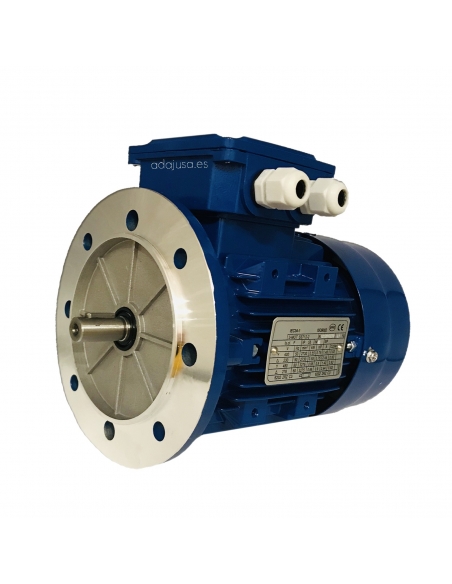

Single-phase electric motor 0.75kw (1HP) 230Vac 50Hz , 4 poles (1500 rpm), flange type B5 x 200mm (PAM200/19), high starting torque with centrifugal circuit breaker.
Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.
By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.
The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.
characteristics:
- Manufacturer/Importer: Motorseg
- Reference: SL-80M2-4 B5
- Engine type: asynchronous squirrel cage.
- Voltage: 230 Vac. 50Hz.
- Power: 0.75Kw (1HP).
- High start torque.
- Number of poles: 4 (1500 rpm).
- Nominal intensity (In): 4.75A
- Starting intensity (Ia): 30
- Revs: 1410 rpm.
- Yield: 73%
- Power factor (Cos): 0.94
- Maximum Torque / Nominal Torque (Tmax/Tn): 1.8
- Starting torque / Nominal torque (Ts/Tn): 2.3
- Permanent capacitor: 25uF/450V
- Starter capacitor: 150uF/250V
- Service: permanent S1
- Degree of protection: IP55.
- Clamping type: Flange B5
- Shaft Diameter: 19mm
- Flange diameter: 200mm
- PAM: 200/19
- Enclosure Size: 80(802)
- Color: Blue.
- Housing material: Aluminum.
- Sound level (dB): 71.
- Weight: 10.8 Kg.
- CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.
To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.
