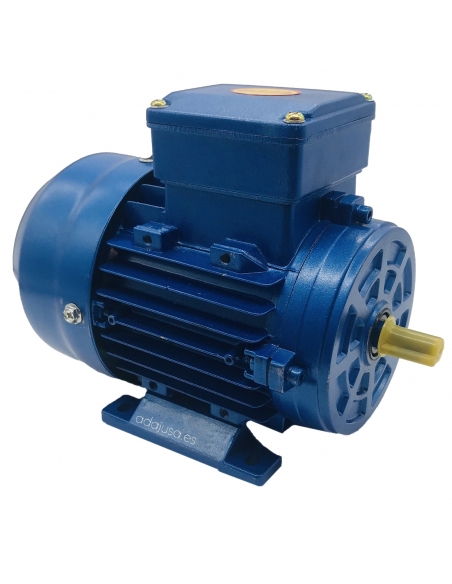

Single-phase electric motor 0.37kW (0.5HP) 230Vac 50Hz, 2 poles (3000 rpm ) B3 flange ( Legs ), high starting torque with centrifugal circuit breaker.
Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.
By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.
The starting system using a centrifugal circuit breaker and auxiliary starting capacitor allows for a reinforced starting torque; The system is fully automatic.
characteristics:
- Manufacturer/Importer: Motorseg
- Reference: SL-71M1-2 B3
- Motor type: squirrel cage asynchronous.
- Voltage: 230 Vac. 50Hz.
- Power: 0.37 Kw (0.5 HP).
- High starting torque.
- number of poles: 2 (3000 rpm ).
- Nominal intensity (In): 2.42A.
- Starting current / rated current: 15
- Revolutions: 2780 rpm .
- Yield: 70%.
- Power factor: 0.95
- Maximum torque / Rated torque: 1.7
- Starting torque / Rated torque: 2.2
- Permanent capacitor: 12uF/450V
- Ctarter capacitor : 75uF/250V
- Continuous service: S1.
- Protection degree: IP55.
- Fastening type: Flange B3 Legs .
- shaft diameter: Ø14mm
- Case size 71 (71M1).
- Color blue.
- Housing material : Aluminum.
- Sound level (dB): 75.
- Weight: 5.3 kg.
- CE marking.
For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.
For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.
