2KVA ultra-insulated single-phase transformer with IP23 box
2KVA ultra-insulated single-phase transformer with IP23 box

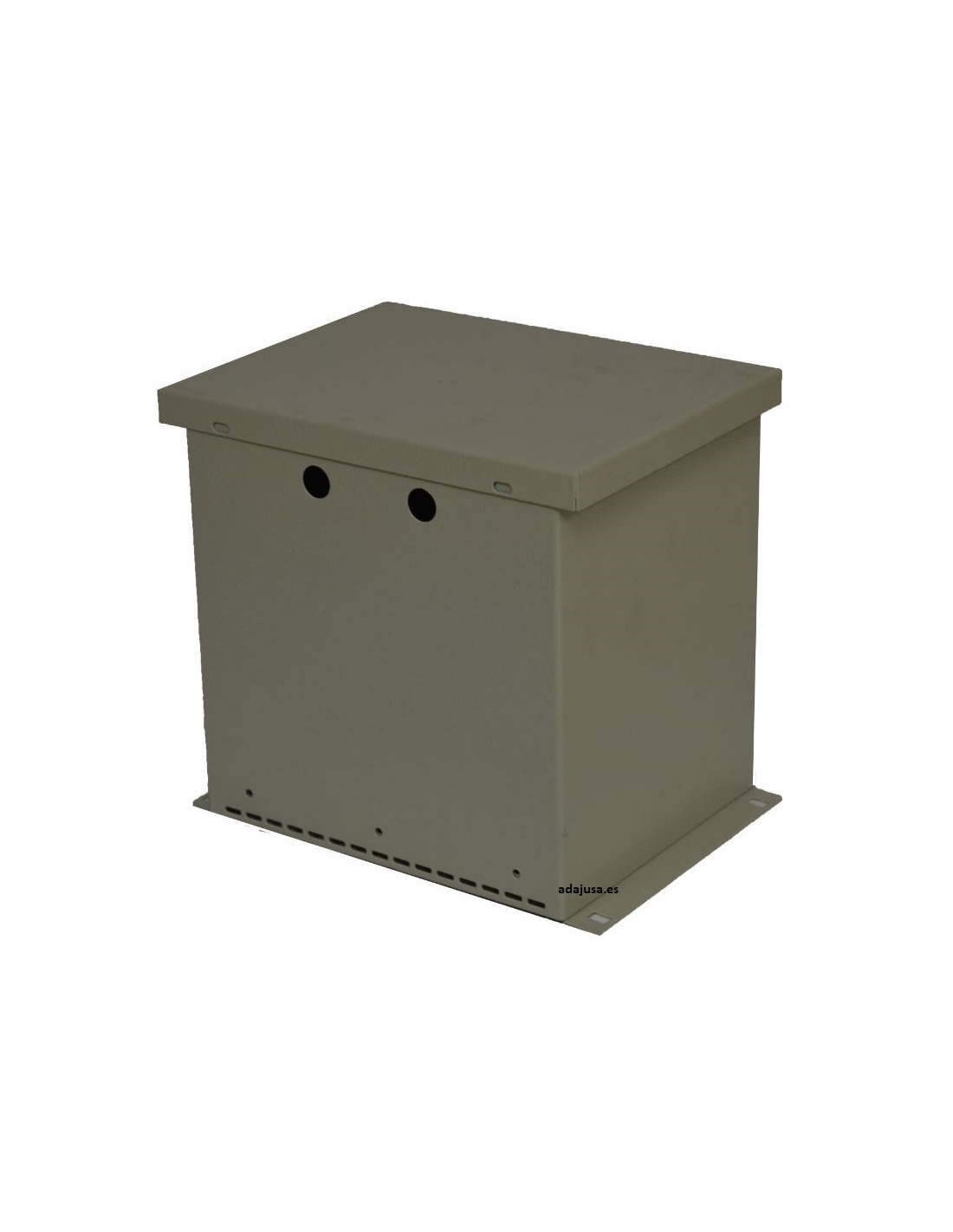

Single-phase transformer 2000 VA 230/230V ultra insulation box IP23

Special manufacturing material
€298.36 Tax included

€246.58 tax excl.

Ultra-insulated 2kVA (2000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive to electrical noise.

Reference: TRA2000
transformer symbol 230-230 with screen

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Single-phase ultra-insulation transformer for galvanic separation of circuits or machinery, dry type, with electrostatic screen between primary and secondary. With a metal layer that offers a degree of protection IP23.

This ultra-isolation transformer provides separation between primary and secondary circuits through a safety electrostatic screen that filters and conducts unwanted signals and disturbances to ground. Referenced to ground it can generate neutral in two-phase installations. The degree of effectiveness of this screen depends directly on the quality of the installation's ground connection. For the generation or referencing of the neutral it is necessary to ensure an efficient ground connection.

They are supplied in a metal box that provides an IP-23 insulation degree, connection through terminals. It does not incorporate any overload protection circuit.

Manufactured with low loss magnetic sheet providing high performance.



Technical characteristics:


  • Reference: TRA2000
  • Windings: Thermal class N 200ºC.
  • Primary voltage: 230Vac.
  • Secondary voltage: 230Vac.
  • Power: 2KVA.
  • Frequency: 50/60Hz.
  • Electrostatic screen between primary and secondary
  • Test voltage: 3KV between windings and ground
  • Insulators: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metallic Box )
  • Ambient temperature: TA=25ºC
  • Cooling: ANAN (Natural Air)
  • Certificate: UNE-EN 61558


TRA transformer dimensions

The transformer is supplied without any type of overload protection; its installation is mandatory to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the installation site.
