Transformer 100VA 230/230Vac ultra-insulated IP-20

€59.37 Tax included

€49.07 tax excl.

Single-phase ultra-isolation transformer 100VA primary 230Vac secondary 230Vac, designed to supply circuits where galvanic safety separation and disturbance filtering are required.

Manufactured in resin encapsulator, protection degree IP-20.

Part number: TRIA100

esquema transformador monofásico con pantalla 230-230

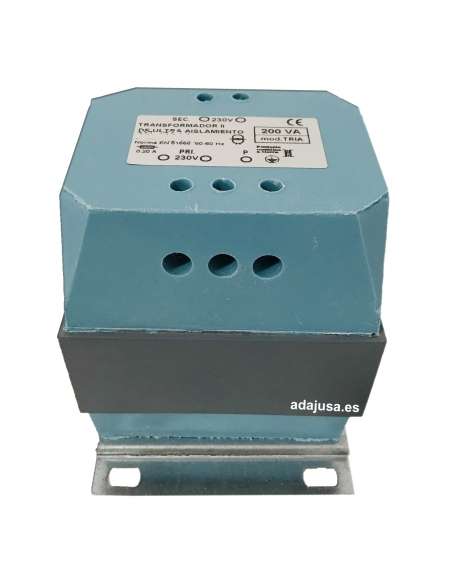

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Single-phase ultra-isolation transformer of 100VA, 230Vac input and 230Vac output, for control and maneuver in electrical circuits where safety galvanic isolation and disturbance filtering are required. The maximum current supplied is 0.43 A (apparent current).
The main application of this type of transformers is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits is required.

Ultra isolation transformer, with pharadic screen. Separation of primary and secondary circuits by means of a safety electrostatic screen, which filters and conducts unwanted signals and disturbances to ground. The degree of filtering of disturbances will depend directly on the quality of the grounding of the installation.

Manufactured with resin encapsulation that provides a degree of protection IP-20.

Technical characteristics of the transformer:


  • Part number: TRIA100
  • Available primary/secondary voltages: 230/230Vac
  • Transformer power: 100 VA
  • Maximum current (output) of the transformer: 0.43A (apparent)
  • Windings: thermal class N 200ºC
  • Insulation: Thermal class B 130ºC
  • Frequency: 50/60 Hz
  • Protection: IP-20
  • Transformer test voltage:
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC
  • Transformer encapsulation: Self-extinguishing resin
  • Transformer mounting: by means of screws
  • Certificate: UNE-EN61558

Indicaciones de medicas transformadores monofasicos en resina

Table dimensiones transformadores monofasicos TRIA



Esquema electrico transformador separador con triple pantalla

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load. Material for professional use, install in compliance with the regulations in force at the place of installation.
