Transformer 2500VA IP00 special voltages
Transformer 2500VA IP00 special voltages

Transformer 2500VA IP00 voltages as needed

Special manufacturing material
€297.43 Tax included

247.86 tax excl.

TR2-2500-ESP

Single-phase maneuver transformer for command, control and general uses. The transformer power is 2500VA and with protection level IP00. Primary and secondary voltage can be requested by the customer.

The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac.

Esquema transformador monofasico generico

Select the input voltage (primary) and output voltage (secondary) from the right side menu.

Reference: TR2-2500-Special

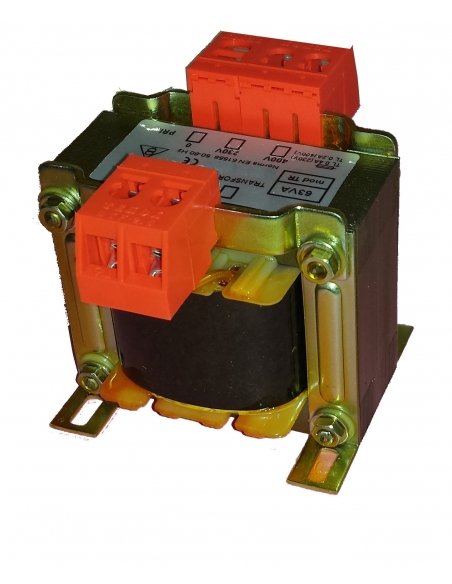

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Single-phase maneuver transformer for command, control and general uses. The transformer power is 2500VA and with protection level IP00. Primary and secondary voltage can be requested by the customer.

These types of transformers are fully reversible.

The stresses that can be requested are:

  • Primary or winding 1: between 100 and 400Vac.
  • Secondary or winding 2: between 10 and 230Vac.

Note: This transformer does not have intermediate sockets for various voltages.

Technical characteristics of the transformer:


  • Ref: TR2-2500-Special
  • Transformer primary voltage: at customer request
  • Transformer secondary voltage: at customer's request
  • Rated transformer power: 2500 VA.
  • Windings: Thermal class N 200oC.
  • Insulators: Thermal class B 130oC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage:
    • 5 KV between windings.
    • 2.5 KV between windings and dough.
  • Ambient temperature: Tao 25oC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: using screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 195 mm
  • B: 200 mm
  • C: 200 mm
  • D: 183 mm
  • E: 170 mm
  • 7 mm
  • Weight: 23 Kg.

The given dimensions are indicative, they may vary depending on the stresses.

Attention:

Special production material, once production has started, the order cannot be modified or reversed. Please note that payment order for cash back or non-refund PayPal incorporate this material is not supported.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Buenas tardes. Les propongo una duda, a ver si podrían aclararme.
Tengo una fregadora industrial que funcionas con dos baterías de 12v, las cuales están muertas.
La idea es la siguiente, sustituir las dos baterías por el transformador 2500VA, correctamente montado en una caja estanca. La fregadora monta tres motores a 24v, uno para mover la maquina, otro para rotar el disco fe fregado y el de aspiración, los tres a la vez son 2200 vatios.
Les agradecería e antemano cualquier aclaración al respecto, gracias de antemano.
Un saludo
Answer
Buenas tardes,

No nos queda muy claro el uso de un transformador para la aplicación que describe. Entendemos que esas baterías son las que alimentan la máquina industrial para su funcionamiento, es así? esas baterías con la energía que acumulan son lo que hacen funcionar la máquina.

La finalidad de un transformador de tensión, como su propio nombre indica es transformar una tensión de entrada en otra de salida, pero siempre conectado a una fuente de tensión. No acumulan energía que les permita alimentar su máquina industrial.


Un saludo

ADAJUSA
David on 03/02/2025 14:39:56

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Transformer 200VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 200VA IP00 voltages as needed

Especial-SEV
TR2-200-ESP
Starting from €64.06 (€53.38 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 200VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View
6KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 6000 VA 230/230V ultra insulation box IP23

Generico-SEV
TRA6000
€513.29 (€427.74 tax excl.)
Ultra-insulated 6kVA (6000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive...
Transformer 3000VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 3000VA IP00 voltages as needed

Especial-SEV
TR2-3000-ESP
Starting from €354.65 (€295.54 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 3000VA and with protection level IP00. Primary and secondary voltage can be requested by the customer.The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac.Select the...
View
Transformer maneuver 2500VA 115/230V Transformer maneuver 2500VA 115/230V 2
Special manufacturing material
Single-phase transformers

Transformer 2500VA E:230/400V S:115/230V

Especial-SEV
MI-2500-3
€382.45 (€318.71 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 2500VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 115Vac or 230Vac, each of them selectable by means of jumpers. Reference: MI-2500-3...

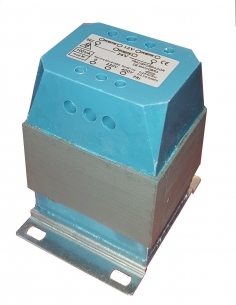

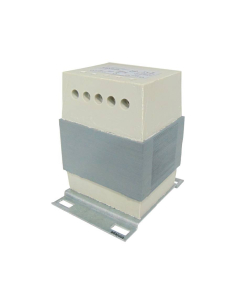

Transformer maneuver 315VA 115/230V Transformer maneuver 315VA 115/230V 2
