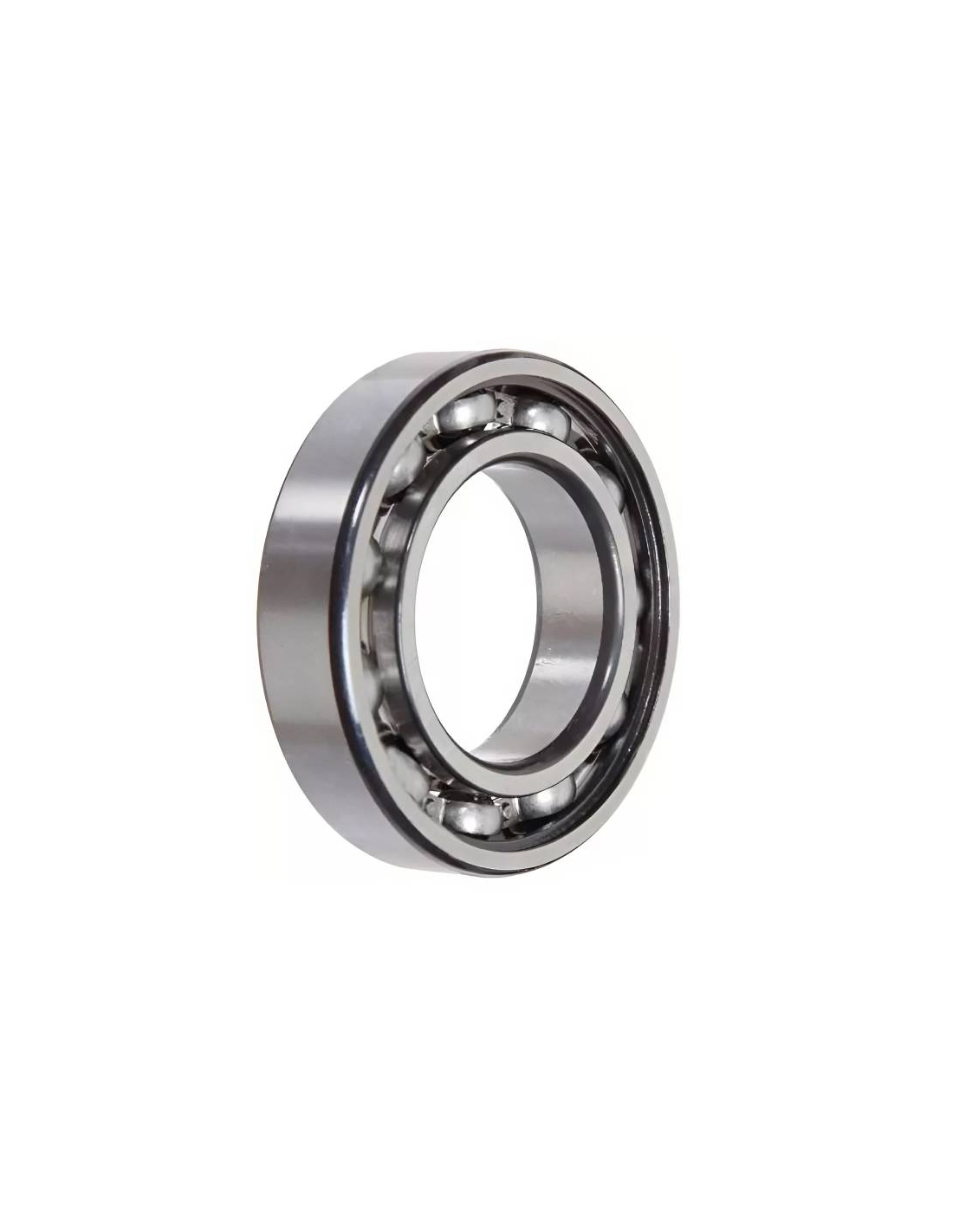

Bearing 7203 FAG 17x40x12mm

€18.63 Tax included

€15.40 tax excl.

7203 one row angular contact ball bearing,dimensions 17x40x12mm. Single row angular contact bearing, made of steel and cage for polyamide balls.

Brand fag.

Ref: 7203-B-XL-TVP

Marca FAG

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Angular contact ball bearing, one row, 7203 series according to DIN 628-1, without any kind of opturing (open). Cage made of polyamide.

One-row angular contact ball bearings withstand high radial loads and axial forces in one direction, the contact angle of this series is 40o. The usual mounting of this type of bearings in combination with another bearing.

This type of bearings are suitable for operating temperatures from -30oC to +110oC.

Dimensions: .17x.40x12.

For other references or measures consult.

DibujoRodamientoAngularFAG

characteristics:

  • Manufacturer FAG.
  • Reference: 7203-B-XL-TVP
  • Material: Tempered steel.
  • Cage: In polyamide
  • Dimension d: 17mm.
  • Dimension D: 40mm.
  • Dimension B: 12mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (N): 10500.
  • Static load capacity C₀r (N): 5700.
  • Contact Angle: ἀ-40o
  • Limit speed ng (min⁻1): 20000.
  • Weight: 0.065Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
