Bearing 7205 FAG 25x52x15mm

€21.56 Tax included

€17.82 tax excl.

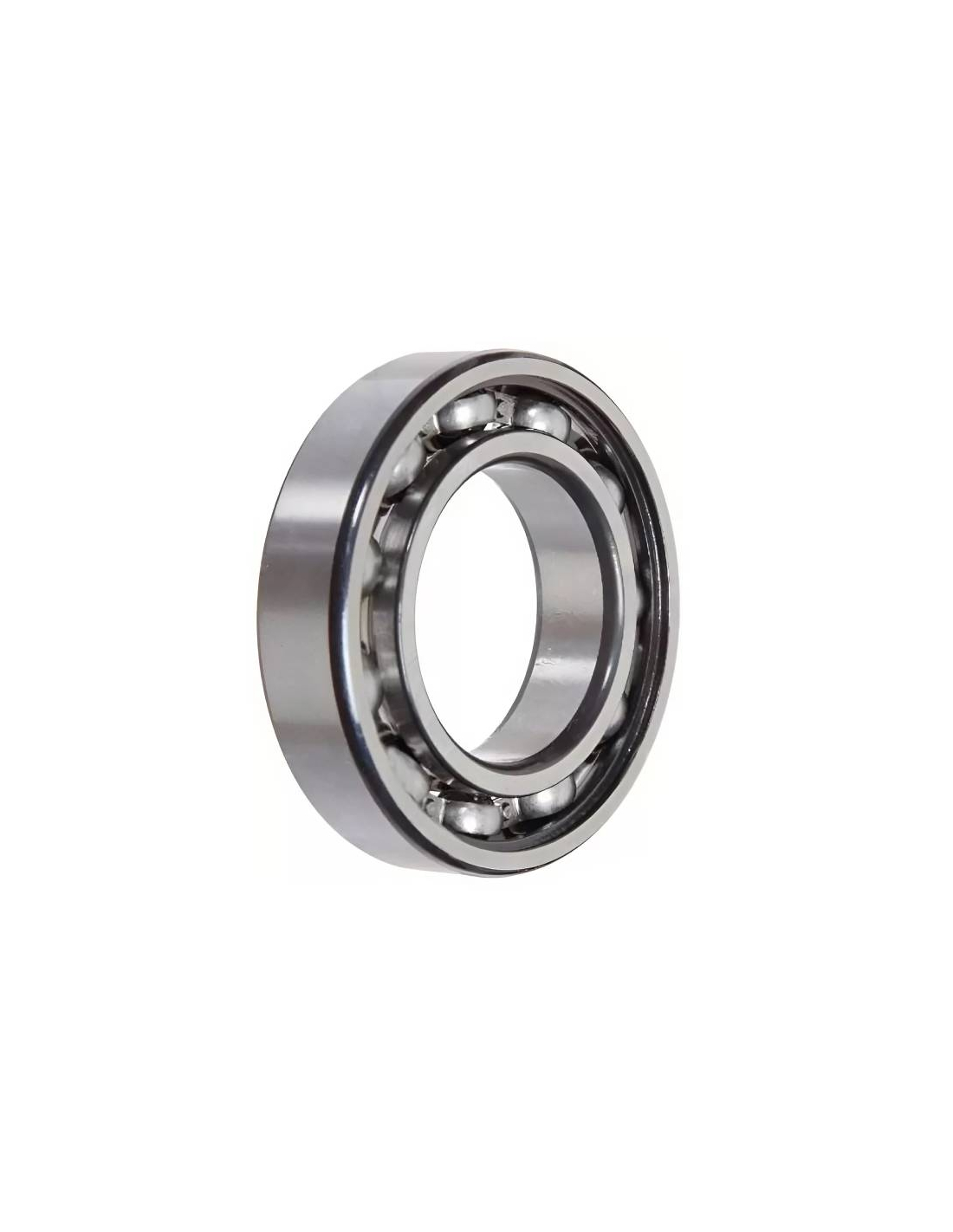

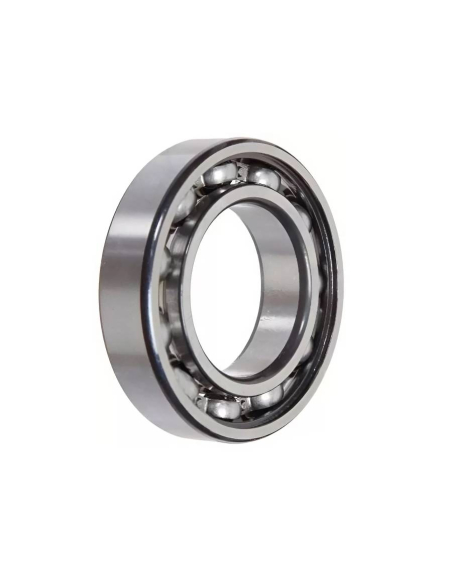

Ball bearing 7205 single row angular contact,dimensions 25x52x15mm. Single row angular contact bearing, made of steel and cage for balls in polyamide.

Reference: 7205 BTVP

Marca FAG

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Angular contact ball bearing, one row, 7205 series according to DIN 628-1, without any kind of opturing (open). Cage made of polyamide.

One-row angular contact ball bearings withstand high radial loads and axial forces in one direction, the contact angle of this series is 40o. The usual mounting of this type of bearings in combination with another bearing.

This type of bearings are suitable for operating temperatures from -30oC to +110oC.

Dimensions: .25x.52x15.

For other references or measures consult.

DibujoRodamientoAngularFAG

characteristics:

  • Manufacturer FAG.
  • Reference: 7205 BTVP.
  • Material: Tempered steel.
  • Cage: In polyamide
  • Dimension d: 25mm.
  • Dimension D: 52mm.
  • Dimension B: 15mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (N): 15300.
  • Static load capacity C₀r (N): 9000.
  • Contact Angle: ἀ-40o
  • Limit speed ng (min⁻1): 16000.
  • Weight: 0.127Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
