Solenoid valve 1/2 3-way bistable 230Vac 5VA - Metal Work

€205.27 Tax included

€171.06 tax excl.

Instead of €205.27

PK-E123BI230

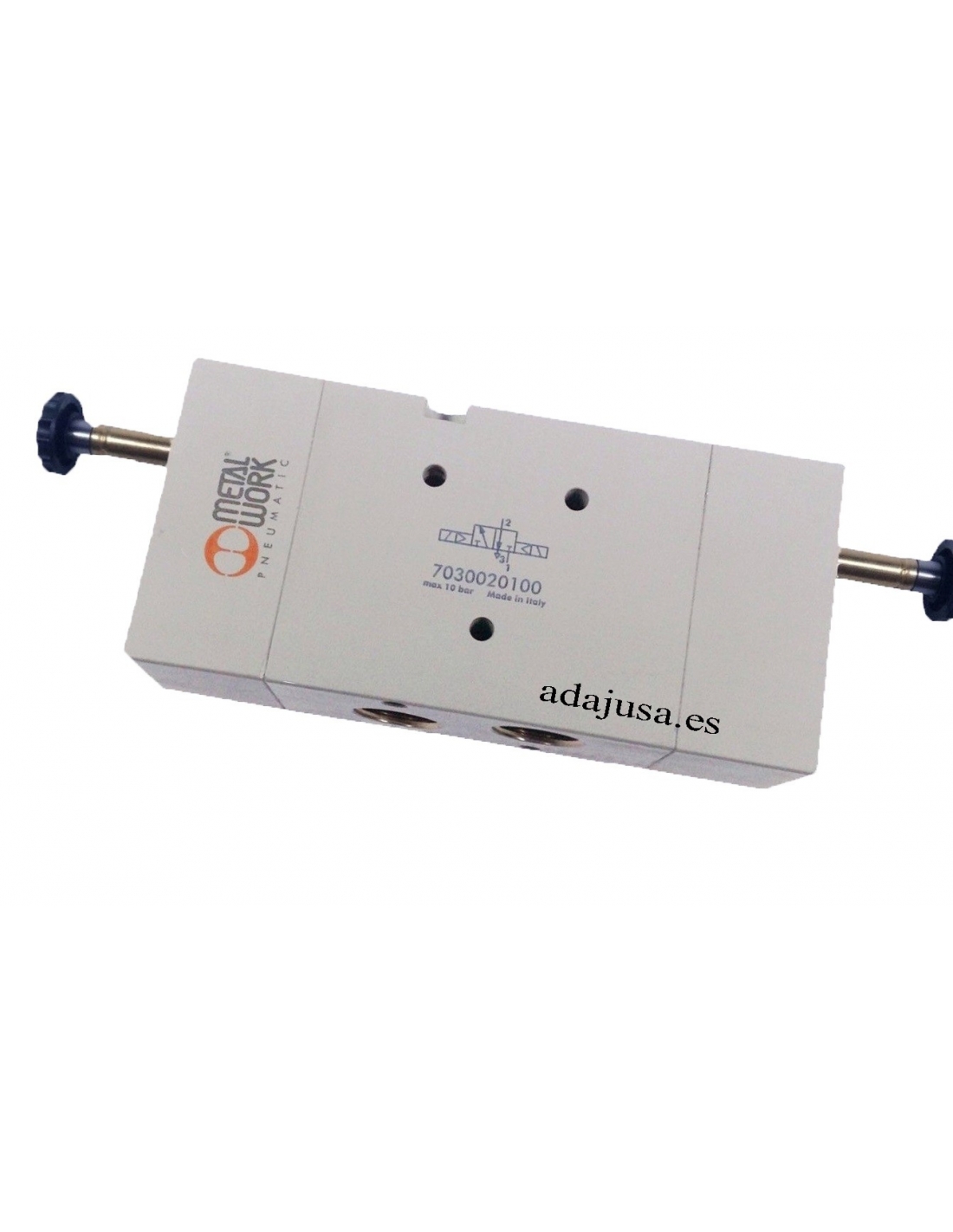

1/2 3-way closed assisted bistable (NC) pneumatic solenoid valve for industrial and general use applications.

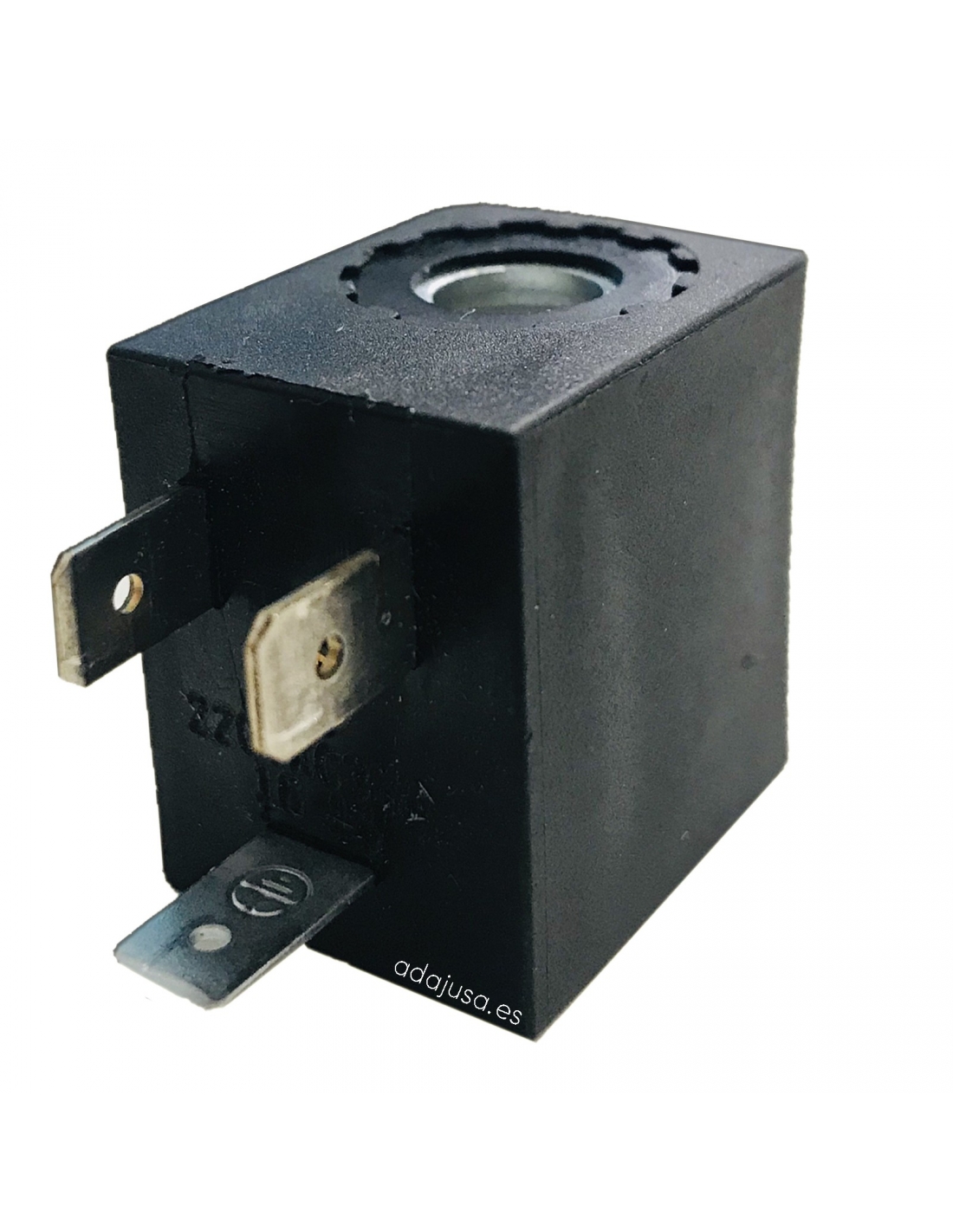

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 5VA, for cores of 8mm. 22mm connector



Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

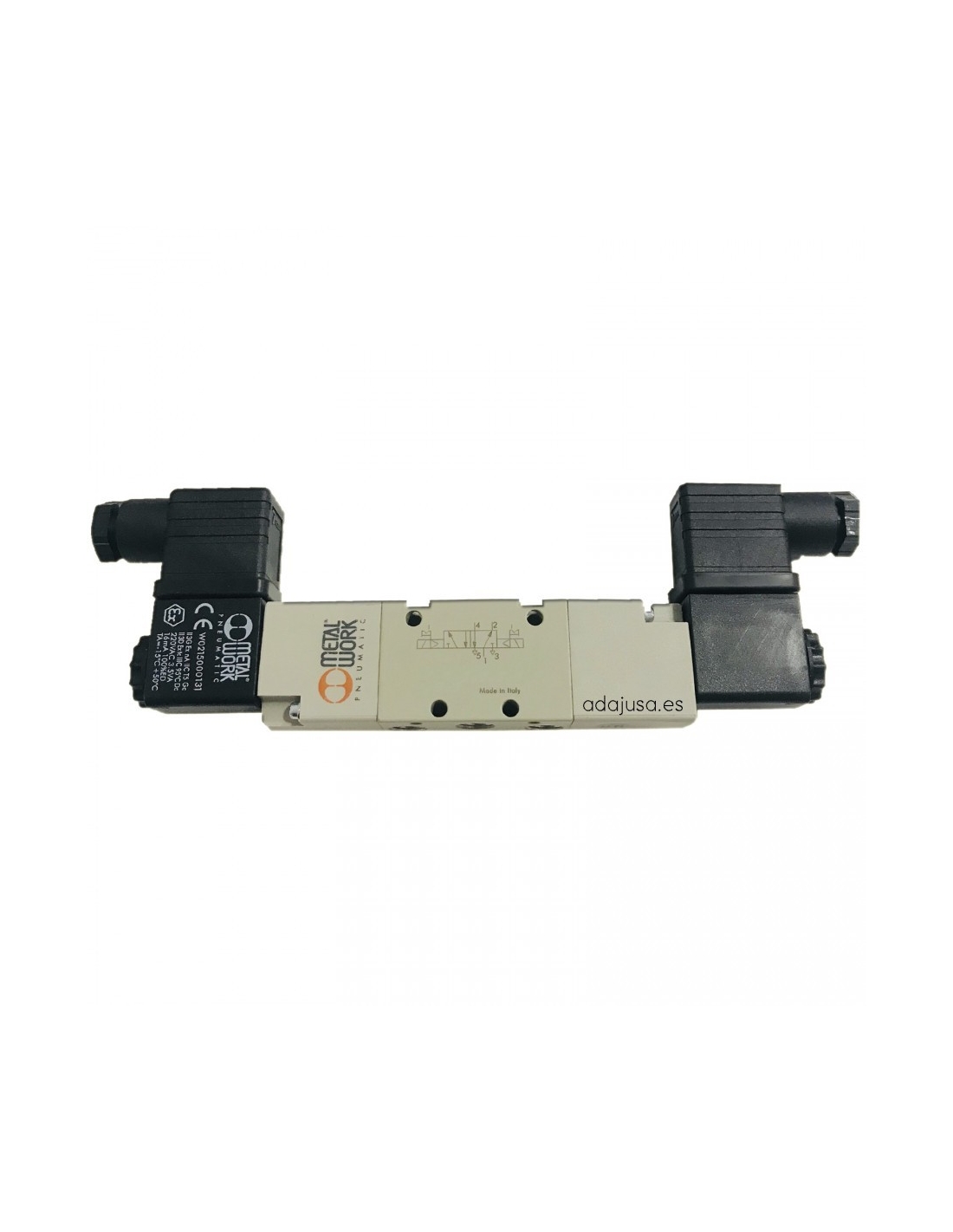

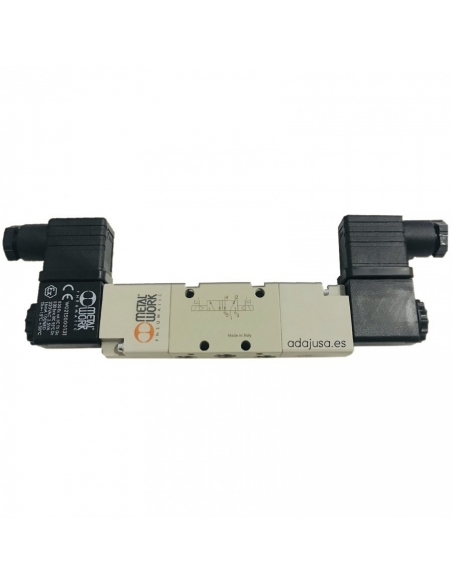

1/2 3-way bistable pneumatic solenoid valve.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 5VA, for cores of 8mm.

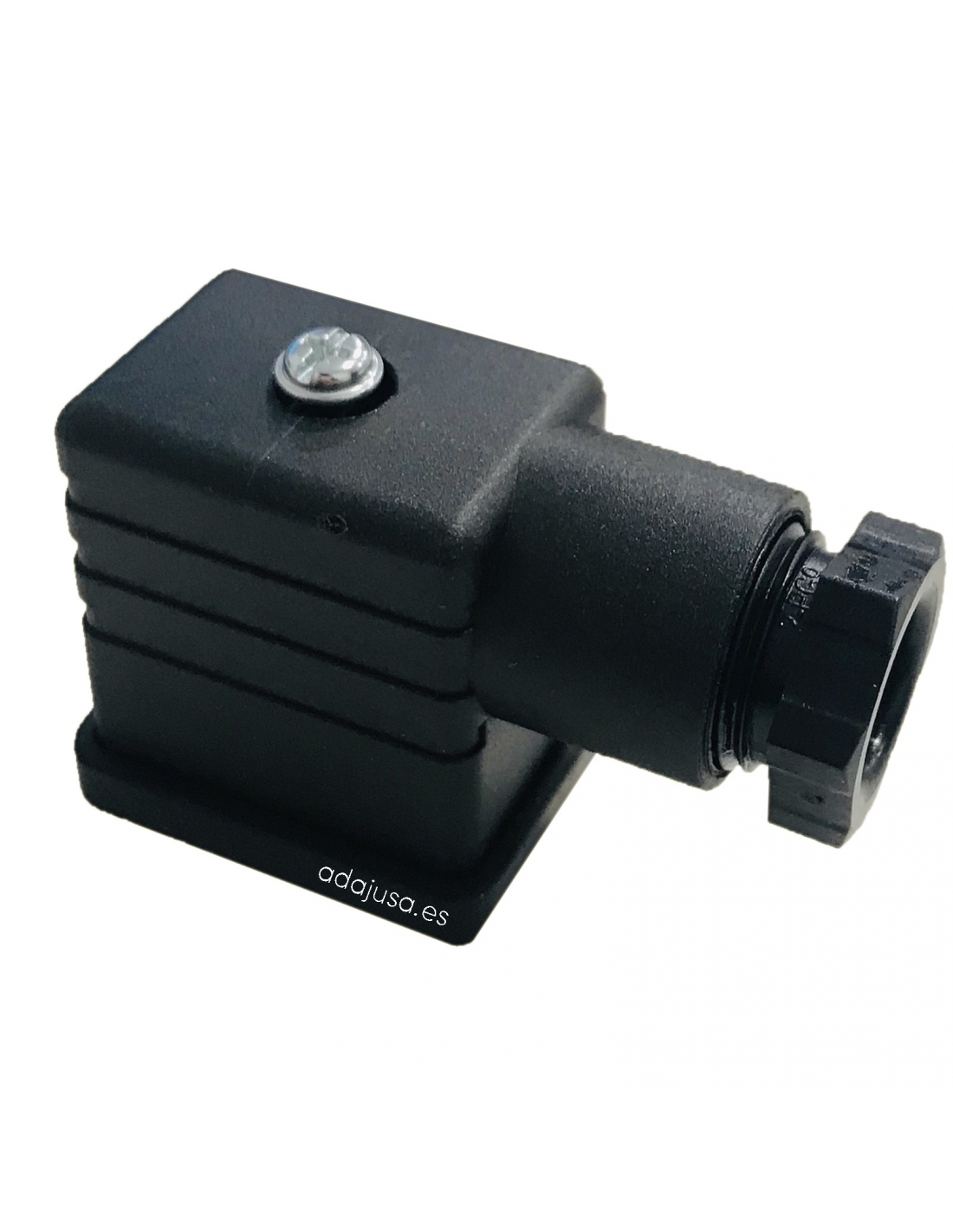

22mm plastic connector

Supply includes:

  • 1 Solenoid valve 1/2" 3/2 bistable
  • 2 Coils 230Vac 5VA
  • 2 22mm connectors

specifications:

  • Eléctrovalvula manufacturer: Metal Work.
  • Manufacturer's Reference: SOV43SOBOO Code: 7030020100
  • Voltage: 230Vac
  • Consumption: 5VA
  • Working pressure of the eléctrovalvula: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the data sheet by clicking on the tab "Attachments"
