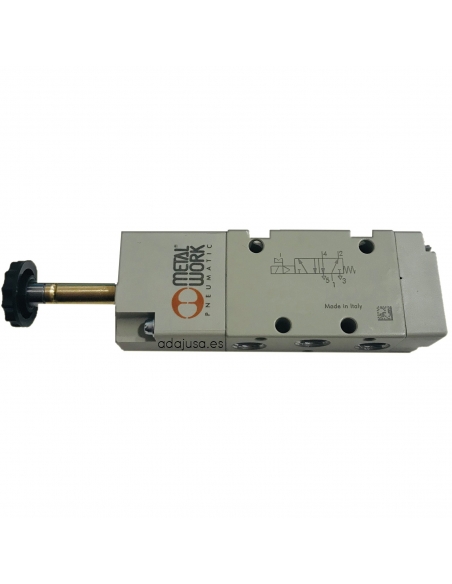

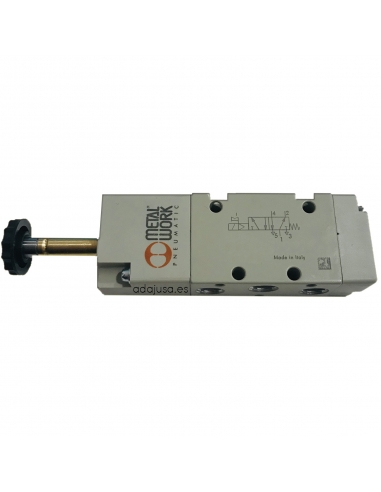

1/4 5-way monostable electrovalve assisted without coil - Metal Work - adajusa.es
Solenoid valve 1/4 5-way monostable assisted 24Vac 3.5VA - Metal Work | ADAJUSA
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
1/4 5-way monostable electrovalve assisted without coil - Metal Work - adajusa.es

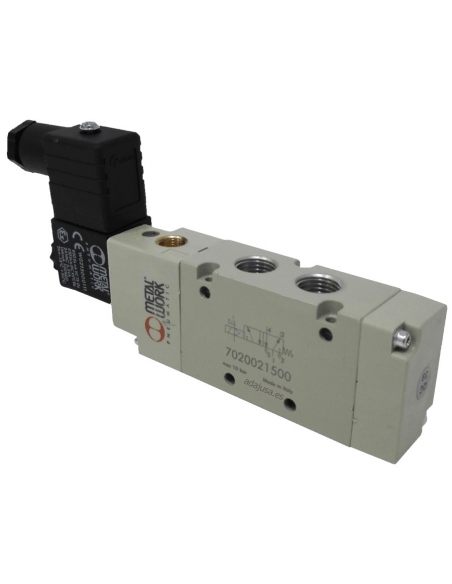

Solenoid valve 1/4 5-way monostable assisted 24Vac 3.5VA - Metal Work

€81.14 Tax included

67.62 tax excl.

PK-E145A24AM

1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm


Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways monostable assisted, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.

Plastic connector 22 mm

Supply includes:

  • Solenoid valve 1/4 5/2 monostable assisted
  • Coil 24Vac 3.5VA
  • Connector 22 mm

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020021600 - SOV 35 SEB OO
  • Type: 1/4-5/2 Assisted monostable
  • Thread: G 1/4"
  • Voltage: 24Vac
  • Consumption: 3.5VA
  • Operating pressure: 0 bar÷10 bar
  • Minimum working pressure for the pilot: 2.5 bar
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.242kg.
  • Manual drive: Yes.



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work | ADAJUSA Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work | ADAJUSA 2
  • Pack
Solenoid valves 1/4

Solenoid valve 1/4 5-way monostable assisted 110Vac 3.5VA - Metal Work

Metal Work
PK-E145A110M
€81.14 (€67.62 tax excl.)
1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Solenoid valve 1/4 5 ways monostable assisted 230Vac 3.5VA - Metal Work | ADAJUSA Solenoid valve 1/4 5 ways monostable assisted 230Vac 3.5VA - Metal Work | ADAJUSA 2
  • Pack
Solenoid valves 1/4

Solenoid valve 1/4 5-way monostable assisted 230Vac 3.5VA - Metal Work

Metal Work
PK-E145A230M
€81.14 (€67.62 tax excl.)
1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

electrovalve 1/4 5 vias 3 positions 24Vac 3,5VA pressure centers - Metal Work - ADAJUSA electrovalve 1/4 5 vias 3 positions 24Vac 3,5VA pressure centers - Metal Work - ADAJUSA 2
  • Pack
Solenoid valves 1/4

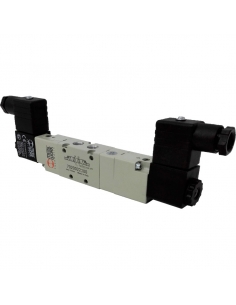

Solenoid valve 1/4 5 vias 3 positions 24Vac 3.5VA pressure centers - Metal Work
