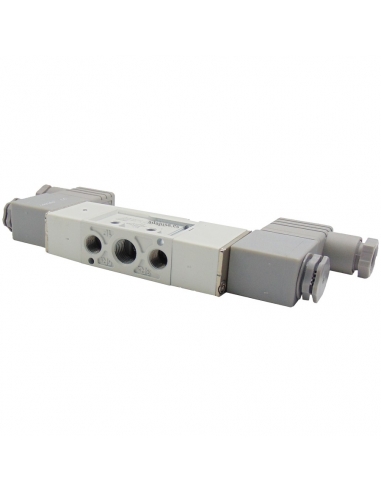

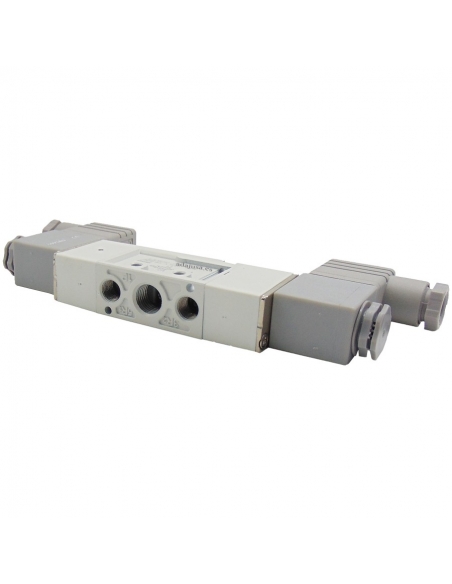

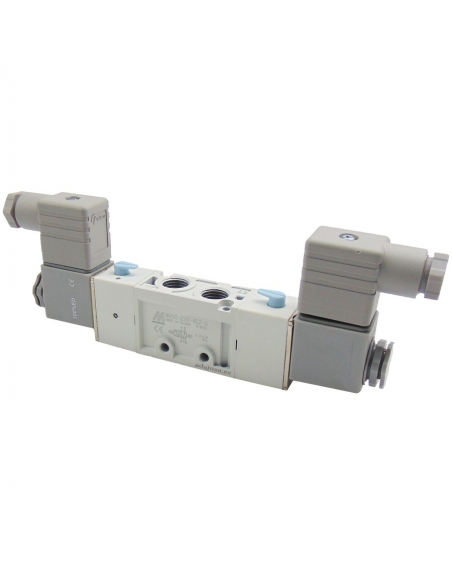

Solenoid valve 1/4 5 ways bistable 230Vca - Mindman S.220

€71.20 Tax included

€59.33 tax excl.

MVSC2204E21

1/4" 5-way bilg valve,operating voltage of 230Vca.

Reference: 281MVSC2204E21

Esquema neumático electroválvula 5 vías biestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 5 ways bistable, with coil of 230Vca. For general and industrial applications.

The supply of the solenoid valve includes:

  • Solenoid valve 1/4-5/2.
  • 2 Coil 230Vca
  • 2 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-220-4E2-8A 1/4 230Vca
  • Thread type: G 1/4" (Threaded exhausts G 1/8").
  • Coil voltage: 230Vca.
  • Coil power: 2.5W.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Minimum working pressure: 2 bar.
  • maximum pressure: 10 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective surface: 18mm².
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula biestable mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Solenoid valve 1/4 5 ways monostable assisted 230Vac 3.5VA - Metal Work | ADAJUSA Solenoid valve 1/4 5 ways monostable assisted 230Vac 3.5VA - Metal Work | ADAJUSA 2
  • Pack
Solenoid valves 1/4

Solenoid valve 1/4 5-way monostable assisted 230Vac 3.5VA - Metal Work

Metal Work
PK-E145A230M
€81.14 (€67.62 tax excl.)
1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

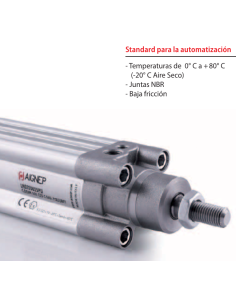

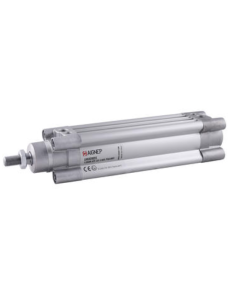

Pneumatic cylinder diameter 80mm stroke 700 standard LH-080-0700 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 700 standard LH-080-0700 Aignep | ADAJUSA : price 2
