Solenoid valve 1/4 3 ways monostable NO 230Vac - Mindman S.220

€39.31 Tax included

€32.49 tax excl.

Pneumatic solenoid valve of 1/4" 3 ways monostable normally open (NO),with conetor and operating voltage of 230Vac.

Reference: 281MVSC2203E1NO1

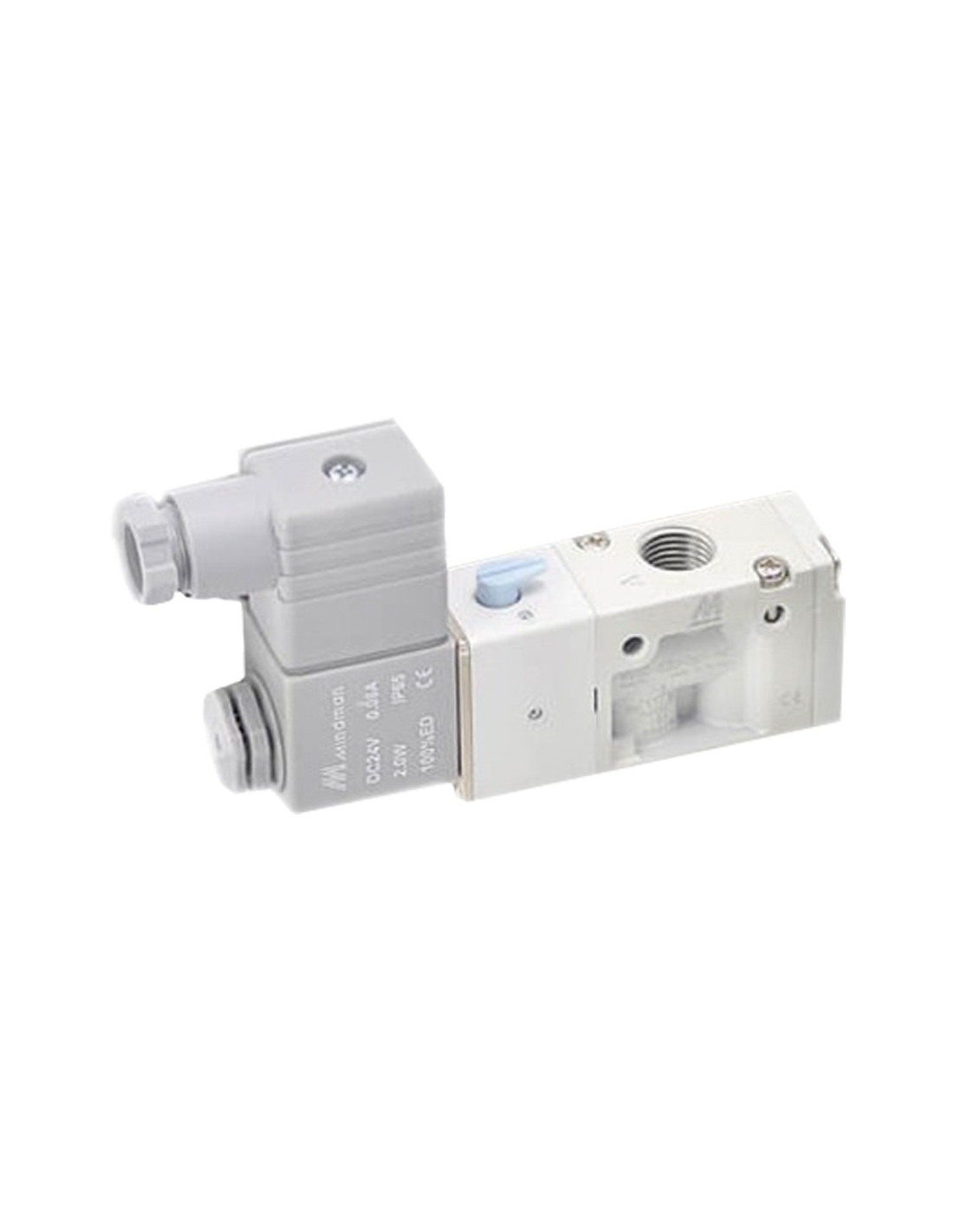

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve of 1/4 3 ways monostable, with coil of 230Vca. For general and industrial applications. The solenoid valve is normally open (NO), that is, with tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the tension is removed from the coil, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

The supply of the solenoid valve includes:

  • Solenoid valve 1/4-3/2 monostable NO.
  • 1 Coil 230Vca.
  • 1 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC2203E1NO1
  • Thread Type: G 1/4"
  • Coil voltage: 230Vca.
  • Coil power: 4.9 VA.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Minimum working pressure: 2 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective pitch diameter: 18mm2.
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1/8-3/2 mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
