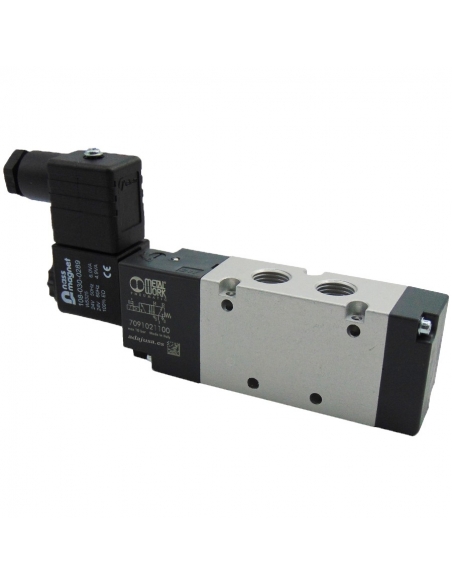

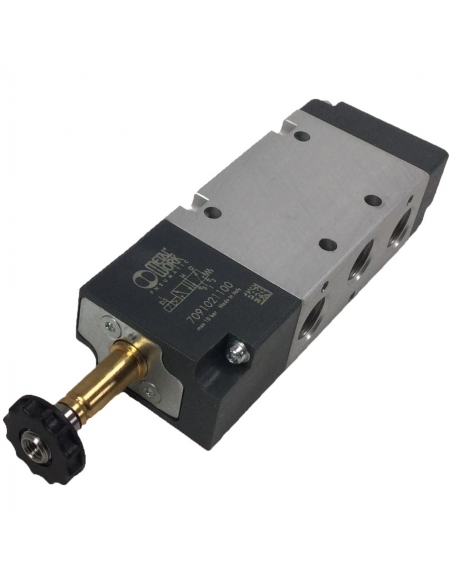

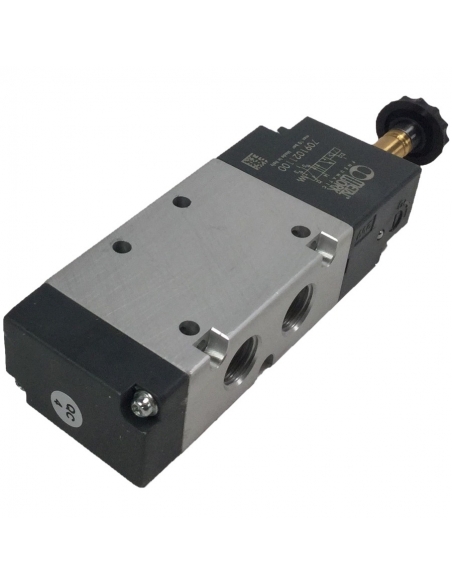

Solenoid valve 1/4 5/2 monostable 110 Vac BASIC - Metal Work

Pneumatic solenoid valve 1/4 5 way monostable BASIC* series. Coil solenoid valve 110Vac 3,5VA T22, and 22 plastic connector.

Delivery includes:

• 1/4 5/2 monostable solenoid valve 1/4 5/2
• Coil 110 Vac 3,5VA
• Connector size 22

Technical characteristics:

• Manufacturer Metal Work
• Solenoid valve reference: ELPN 1/4 5/2 MON Code: 7091021100
• Type of threads: G 1/4
• Monostable bar: 2.5 a 10
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 7.5
• Conductance C Nl/min - bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
• TRA/TRR monostable at 6 bar ms: 19/45
• TRA/TRR bistable at 6 bar ms: 21/21
• Tension tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Fluid: Filtered air without lubrication.
• Rated voltage: 110 Vac
• Rated power: 3,5VA

a) Body of the valve: anodized aluminum
b) Controller / End cap: plastic
c) Slide: chemically nickel plated aluminum
d) Spacers: plastic
e) Seals: NBR
f) Pistons: Hostaform
g) Piston seals: NBR
h) Springs: special steel
i) Operator: brass tube - stainless steel core

Material for professional use, install in compliance with the regulations in force at the place of installation.a

* Basic Series: The body is made of anodized aluminum (unpainted) and the controls are in dark gray technopolymer. BASIC valves can be assembled with accessories from other valve families, in particular with 22 mm coils, 8 mm orifice and related connectors, modular bases and the multi-position connectors of the 70 series valves.
