Solenoid valve 1/4 5/2 bistable 24 Vac BASIC - Metal Work

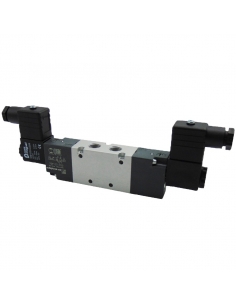

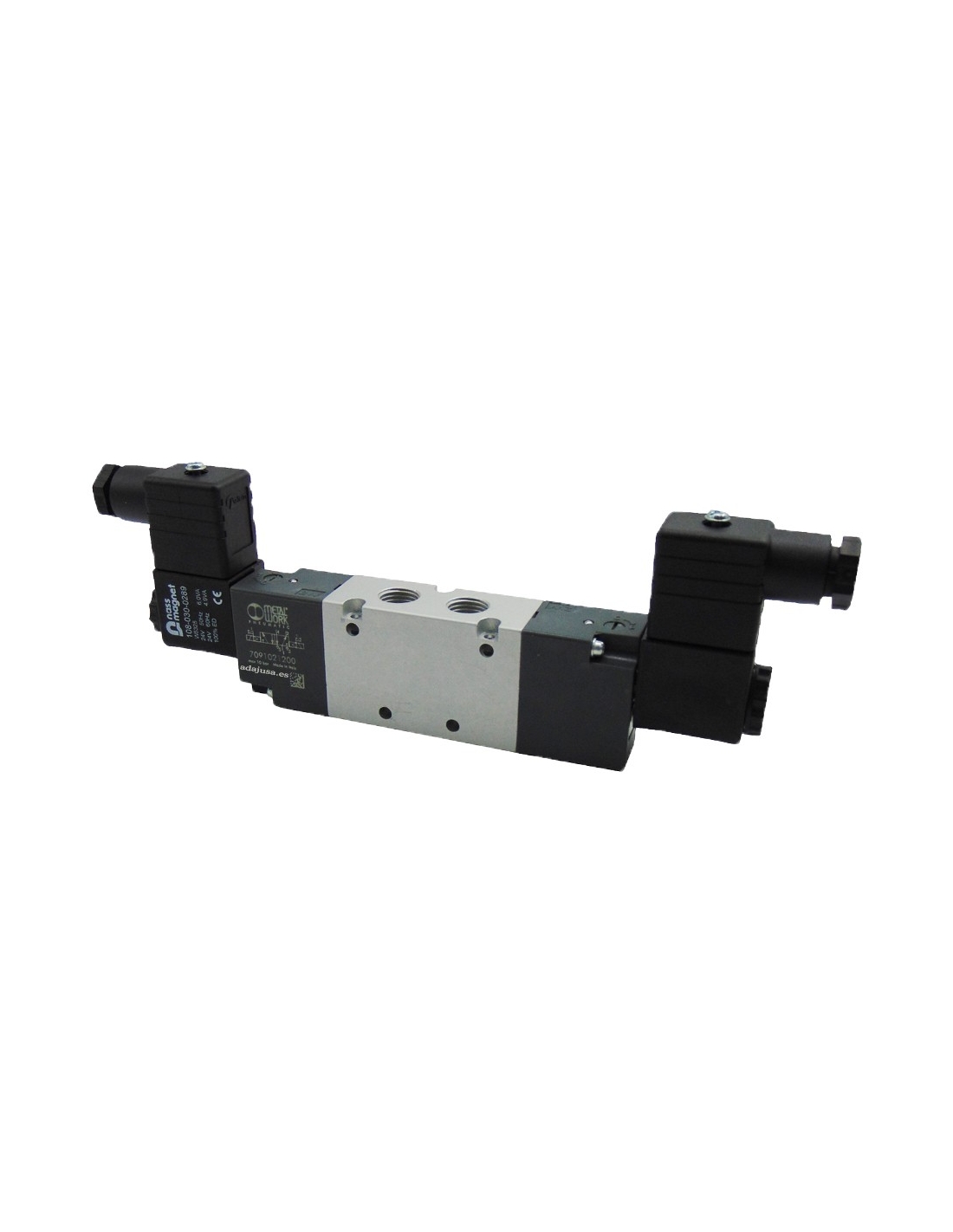

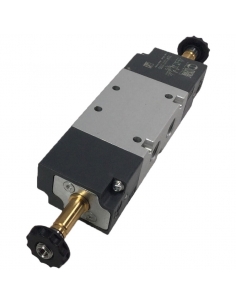

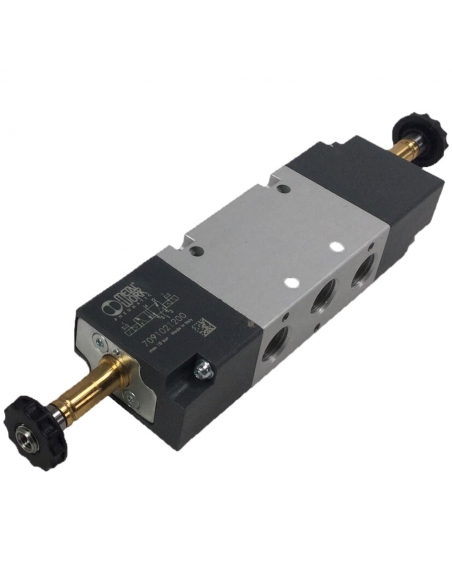

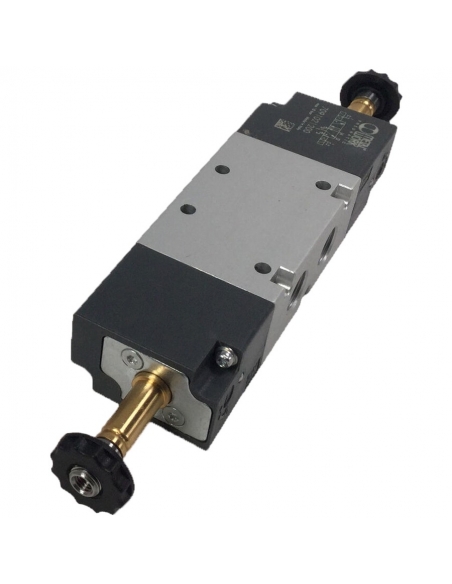

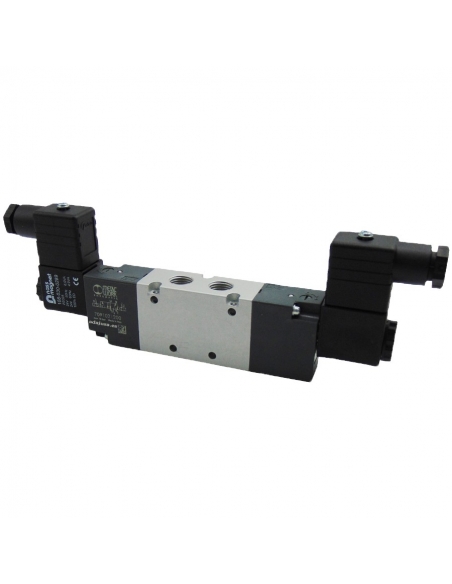

Pneumatic solenoid valve 1/4 5 way bistable BASIC* series. With 24 Vac 3,5 VA coils and plastic connectors

Delivery includes:

• 1/4 5/2 bistable solenoid valve 1/4 5/2

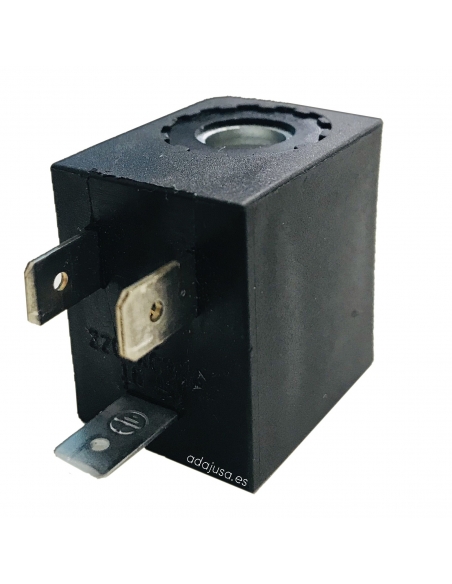

• 2 Coils 24 Vac 3,5 VA

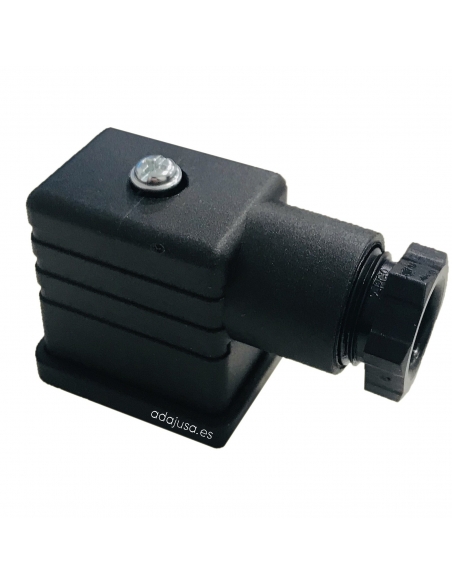

• 2 plastic connectors size 22

Technical characteristics:

• Manufacturer Metal Work
• Part number: Metal Work: ELPN 1/4 5/2 BIS Code: 7091021200
• Type of threads: G 1/4"
• Monostable bar: 1 to 10
• Working temperature °C: -10 ÷ +60
• Nominal diameter mm: 7.5
• Conductance C Nl/min - bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
• TRA/TRR monostable at 6 bar ms: 19/45
• TRA/TRR bistable at 6 bar ms: 21/21
• Tension tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Fluid: Filtered air without lubrication.
• Rated voltage: 24 Vac
• Rated power: 3,5VA

a) Body of the valve: anodized aluminum
b) Controller / End cap: plastic
c) Slide: chemically nickel plated aluminum
d) Spacers: plastic
e) Seals: NBR
f) Pistons: Hostaform
g) Piston seals: NBR
h) Springs: special steel
i) Operator: brass tube - stainless steel core

Material for professional use, install in compliance with the regulations in force at the place of installation.a

* Basic Series: The body is made of anodized aluminum (unpainted) and the controls are in dark gray technopolymer. BASIC valves can be assembled with accessories from other valve families, in particular with 22 mm coils, 8 mm orifice and related connectors, modular bases and the multi-position connectors of the 70 series valves.
