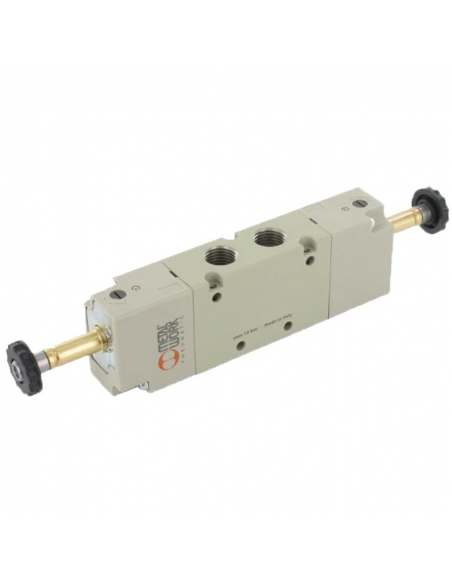

Double solenoid valve 1/4 3/2 assisted tracks - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA
Double solenoid valve 1/4 3/2 assisted tracks - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA

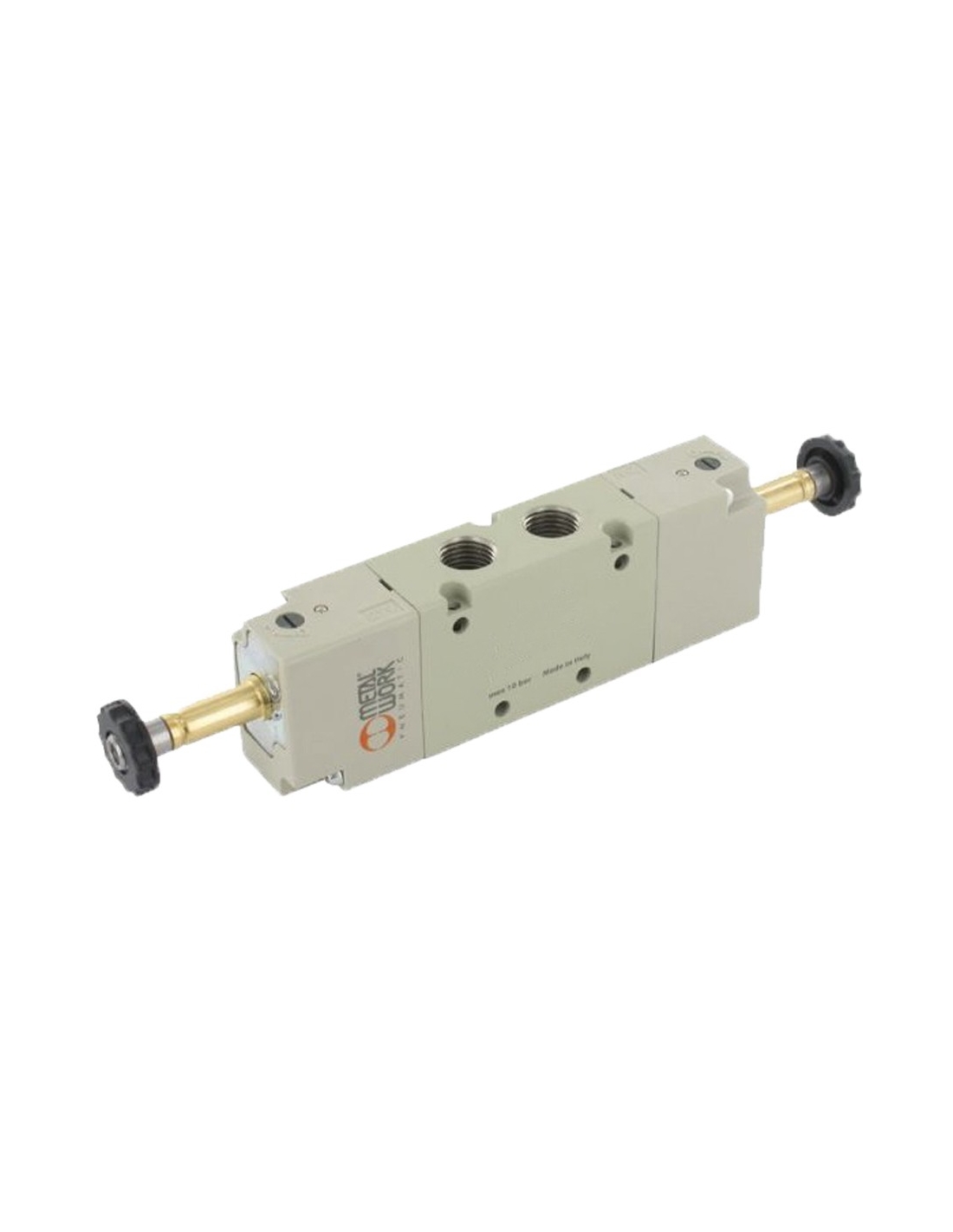

Double solenoid valve 1/4 3/2 assisted tracks NC 24Vac - Metal Work

€139.27 Tax included

116.06 tax excl.

PK-DA1432C24A
Solenoid valve 1/4 3/2 way double output assisted NC (normally closed). With 24 Vac connectors and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Double pneumatic solenoid valve 1/4" 3/2 way NC assisted. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and outlet of the solenoid valve .

Delivery includes:
  • Double solenoid valve 1/4" 3/2 assisted NC
  • 2 Coils 24 Vac 3,5VA
  • 2 Connectors T22

Technical characteristics:

      • Manufacturer Metal Work
      • Part number: Metal Work: SOV 38 SES NC Code: 7020023400
      • Thread type: G 1/4
      • Bistable bar: 2.5 ÷ 10
      • Minimum assistance pressure bar: 2.5
      • Operating temperature °C: -10 ÷ +60
      • Nominal diameter mm: 7.5
      • Conductance C Nl/min - bar: 264.26
      • Critical ratio b bar/bar: 0.27
      • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
      • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
      • TRA/TRR monostable at 6 bar ms: 19/45
      • TRA/TRR bistable at 6 bar ms: 21/21
      • Tension tolerances %: -10 ÷ +15
      • Class of isolation: F 155
      • Voltage: 24 Vac
      • Power: 3,50 VA

    Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.
