Solenoid valve 1/8 3/2 monostable NO - Aignep
Solenoid valve 1/8 3/2 monostable NO - Aignep

Solenoid valve 1/8 3/2 monostable NO - Aignep

€34.68 Tax included

€28.66 tax excl.

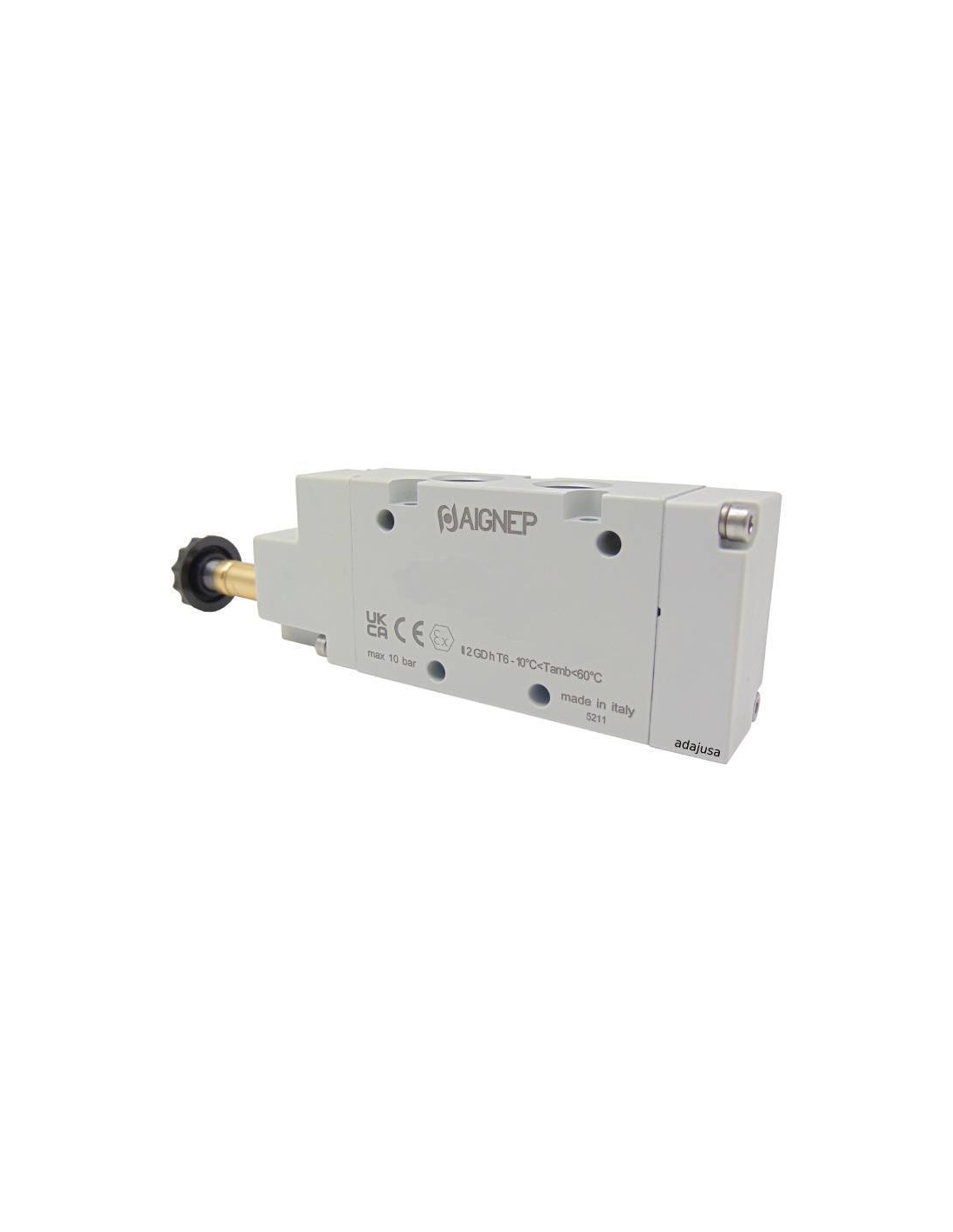

Solenoid valve 1/8 3 ways monostable, NO (coils not included), with G1/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS03NO02
esquema neumatico electrovalvula 3 vias NO monoestable (1)
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/8 3 ways monostable NO (normally open) 01V series. It allows air flow when it is not activated and blocks air flow when its control is activated. Coil and connector not included.
Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR gaskets. European manufacture.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS03NO02
  • Thread type: G 1/8"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 3
  • Operation: Monostable
  • Seal material: NBR
Dimensiones electrovalvulas 3 vias monoestable Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
