Solenoid valve 1/8 5/2 bistable 12Vdc 3W - Aignep

Name: Solenoid valve 1/8 5/2 bistable 12Vdc 3W - Aignep
Brand: Aignep
SKU: 01VS150002-12Vcc
Price: 60.3306 EUR
Availability: InStock

€60.33 Tax included

€49.86 tax excl.

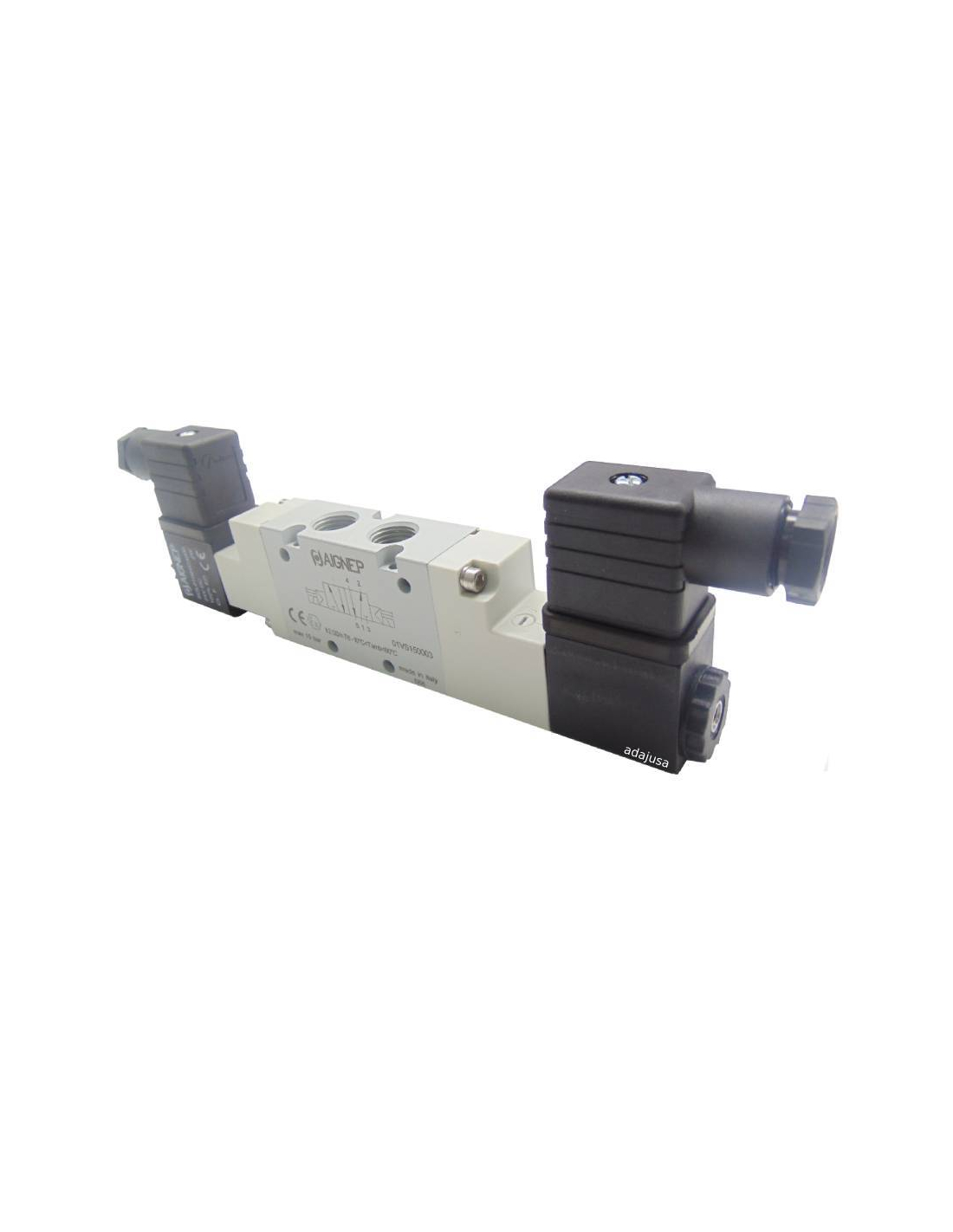

Solenoid valve complete of 1/8 5 way bistable , with 12Vdc coils and 3W consumption, 22mm. size connectors, with G1/8" threads, anodized aluminum body, NBR gaskets.

Reference: 01VS050002-12Vcc

Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.37

Coil solenoid valve 12Vdc 3W Coil Size 22mm diameter 9 - Aignep

€4.20

Solenoid valve 1/8 5/2 bistable - Aignep

€49.20

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valve pneumatic of 1/8 5 way bistable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coils of 12Vdc 3W and connectors.

The supply includes:

5" 1/8" pneumatic solenoid valves way
2 coils 12Vdc 3W
2 connectors 22mm

Technical characteristics:

Manufacturer: Aignep
Part number: 01VS150002
Type of threads: G 1/8
Monostable bar: 1 to 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
Insulation class: F 155
Fluid: filtered air without lubrication
Number of way: 5
Operation: bistable
Seal material: NBR
Rated voltage: 12Vdc
Voltage tolerance: ±10%
Nominal power: 3W

Dimensiones electrovalvulas 1_8 5 vias biestable Aignep Adajusa

Imagen construtiva electrovalvulas 3 vias Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)
