Solenoid valve 3/8 3 ways bistable - Metal Work - ADAJUSA

Solenoid valve 3/8 3-way bistable assisted - Metal Work

Name: Solenoid valve 3/8 3-way bistable assisted - Metal Work
Brand: Metal Work
SKU: 7040020300
Price: 95.328 EUR
Availability: PreOrder

€95.33 Tax included

€79.44 tax excl.

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040020300

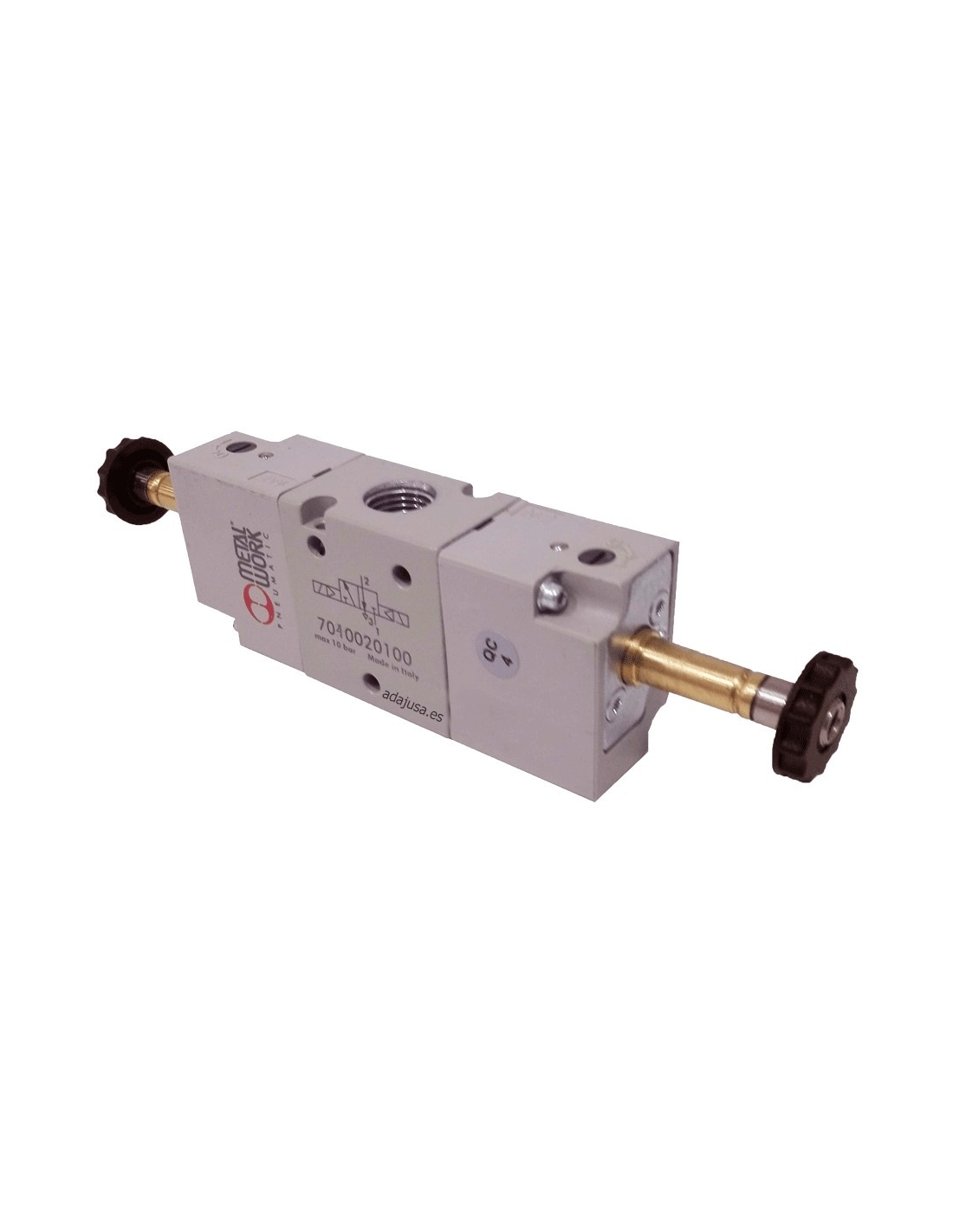

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted bistable. For general and industrial applications. The coil is not included in the supply.

Characteristics:

Provider: Metal Work
Reference: 7040020300- SOV C3 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
