Solenoid valve 3/8 5/3 assisted closed centers - Metal Work

€132.59 Tax included

€109.58 tax excl.

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, closed centers, metal body, for pneumatic applications of industrial or general use.
Reference: 7040022400


Logo-Metal-Work

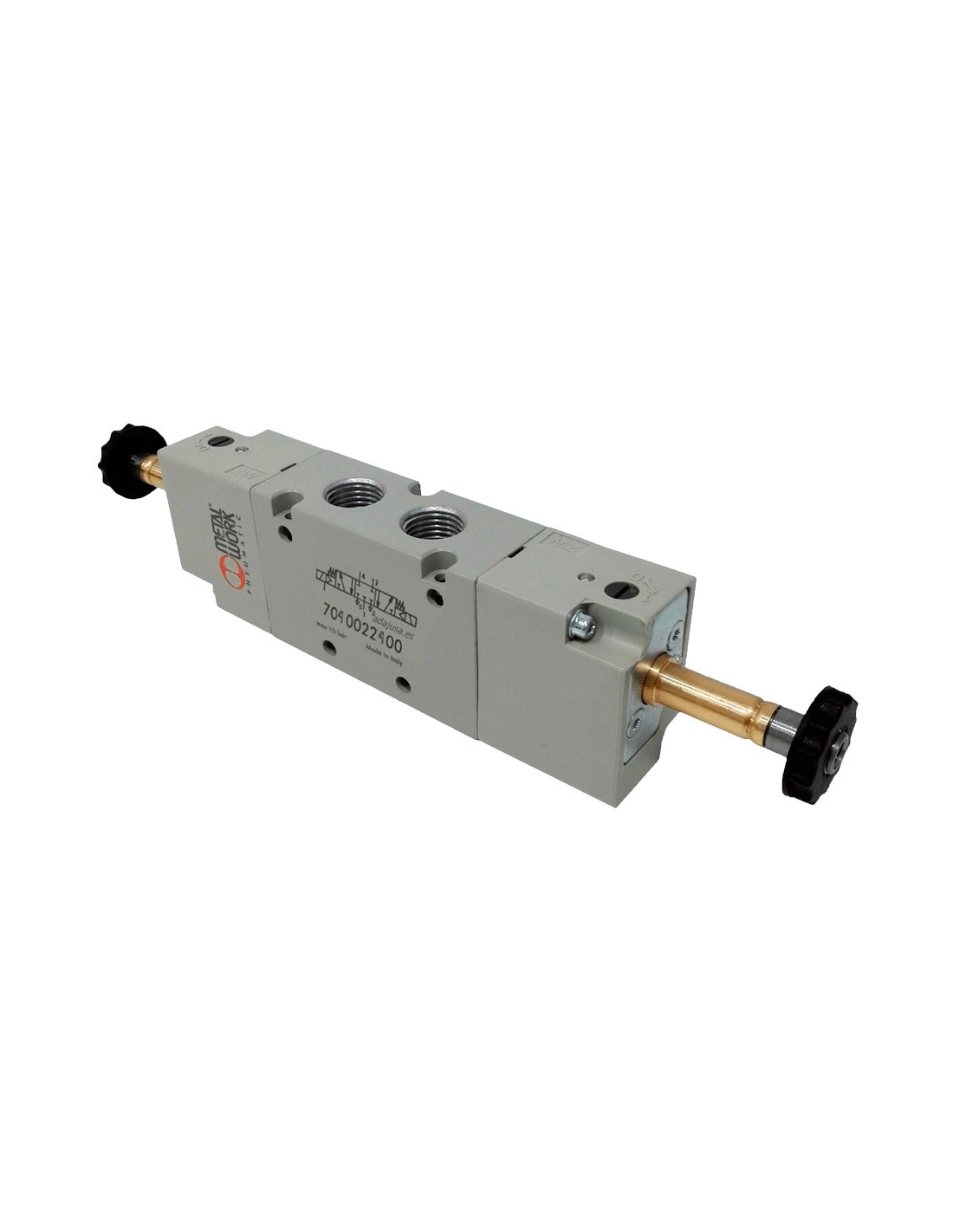

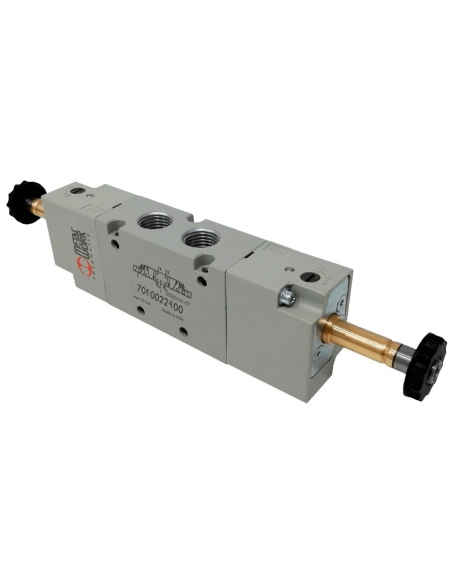

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Solenoid valves of 3/8" of 5 ways and 3 positions assisted, closed centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

Coil and connector not included.

Characteristics:

  • Provider: Metal Work
  • Reference: 7040022100 - SOV C6 SES CC
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 13.3 mm
  • Conductance C Nl/min · bar: 505.52
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min:2150
  • Monostable TRA/TRR at 6 bar ms: 21/72
  • Bistable TRA/TRR at 6 bar ms: 18/18
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15




Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
