Miniature Relay 24Vdc 1 contact 10A
Miniature Relay 24Vdc 1 contact 10A
Miniature Relay 24Vdc 1 contact 10A
Miniature Relay 24Vdc 1 contact 10A
Miniature Relay 24Vdc 1 contact 10A
Miniature Relay 24Vdc 1 contact 10A

Miniature Relay 24Vdc 1 contact 10A

€4.31 Tax included

€3.56 tax excl.

Miniature relay 24Vdc, 1 changeover contact, 10A, for general purpose and industrial applications, capable of handling medium loads.

Relay to be mounted on printed circuit or socket on DIN rail.

The socket (base) for mounting this relay must be 1 contact.


Part number: PR24-1V10A



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

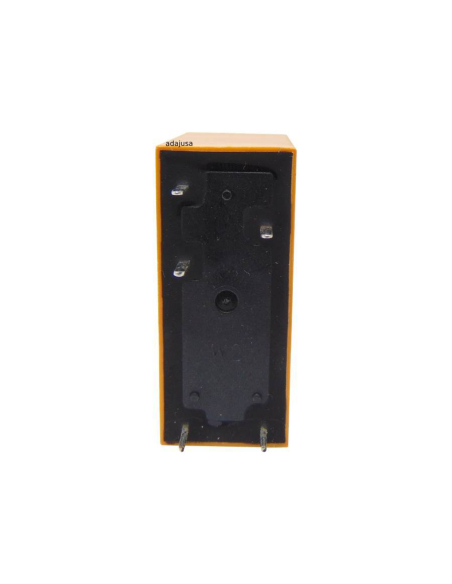

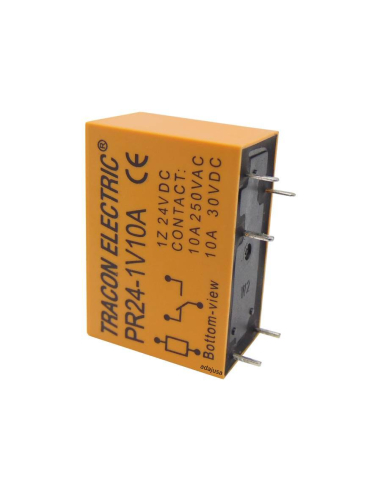

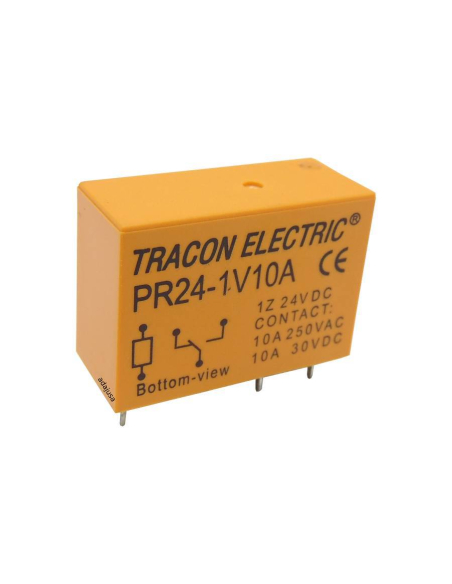

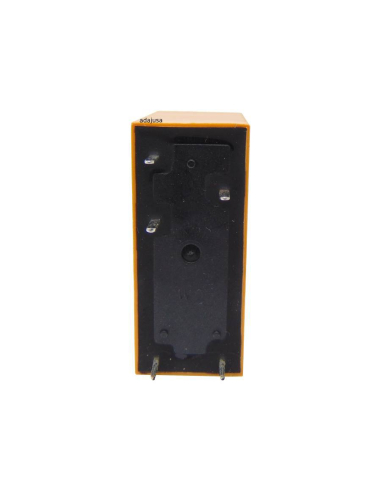

Miniature relay of 24Vdc, with 1 contact type switched 10A and pins to be soldered directly on printed circuit board (PCB) or to be inserted on socket.

Designed for general use and for other specific applications such as control panels, control and distribution panels, automation, toys, electronic cards, electromedical, etc..


Relay compatible with the following 1-contact socket references: RSPSF-08AE, 14F05-E, Schneider RSZE1S35M.



Features:

  • Manufacturer: Tracon
  • Part number: PR24-1V10A
  • Number of contacts: 1 switched
  • Pin shape: Flat (PCB type)
  • Number of pins: 5
  • Working voltage: 24Vdc
  • Contact rating: 10A 230Vac / 30Vdc
  • Test voltage: 1kV
  • Rated voltage of isolation: 250V
  • Resistance: 50kΩ
  • Mounting: on PCB or socket
  • Mechanical lifetime: 1x107 cycles
  • Electrical life: 1x105 cycles
  • Ambient temperature: -40oCto +55oC
  • Body dimensions: 30x21x13 mm
  • Weight: 50g
  • Degree of protection: IP20
  • Standard: EN 61810-1

Dimensions (mm):







Material for professional use, it has to be installed by qualified personnel respecting the regulations in force at the place of installation.
