Miniature Relay 12Vdc 2 contacts 5A
Miniature Relay 12Vdc 2 contacts 5A
Miniature Relay 12Vdc 2 contacts 5A
Miniature Relay 12Vdc 2 contacts 5A
Miniature Relay 12Vdc 2 contacts 5A
Miniature Relay 12Vdc 2 contacts 5A

Miniature Relay 12Vdc 2 contacts 5A

€3.57 Tax included

€2.95 tax excl.

Miniature relay 12Vdc, 2 change-over contacts, 5A, for general purpose and industrial applications, capable of handling medium loads.

Relay to be mounted on printed circuit board or socket on DIN rail.

The socket (base) for mounting this relay must be 2 contacts.


Reference: PR12-2V

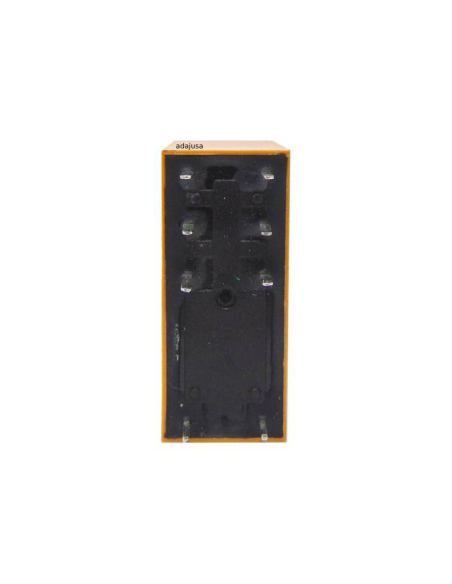

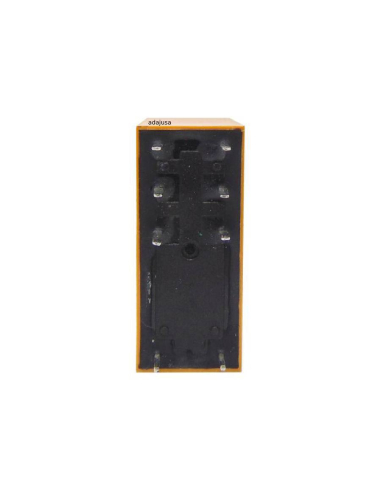

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Miniature relay of 12Vdc, with two 5A switched contacts and pins to be soldered directly on printed circuit board (PCB) or to be inserted on socket.

Designed for general uses and for other specific applications such as control panels, control and distribution panels, automation, toys, electronic cards, electromedicine, etc.


Relay compatible with the following 2-contact socket references: RSPSF-14AE, PSF08A-E, Schneider RSZE1S48M.



Features:

  • Manufacturer: Tracon
  • Part number: PR12-2V
  • Number of contacts: 2 switched
  • Pin shape: Flat (PCB type)
  • Number of pins: 8
  • Working voltage: 12Vdc
  • Contact rating: 5A 230Vac / 30Vdc
  • Test voltage: 1kV
  • Rated voltage of isolation: 250V
  • Resistance: 50mΩ
  • Mounting: on PCB or socket
  • Mechanical lifetime: 1x107 cycles
  • Electrical lifetime: 1x105 cycles
  • Ambient temperature: -40oCto +55oC
  • Body dimensions: 30x20x13 mm
  • Weight: 50g
  • Degree of protection: IP20
  • Standard: EN 61810-1

Dimensions (mm):







Material for professional use, it has to be installed by qualified personnel respecting the regulations in force at the place of installation.
