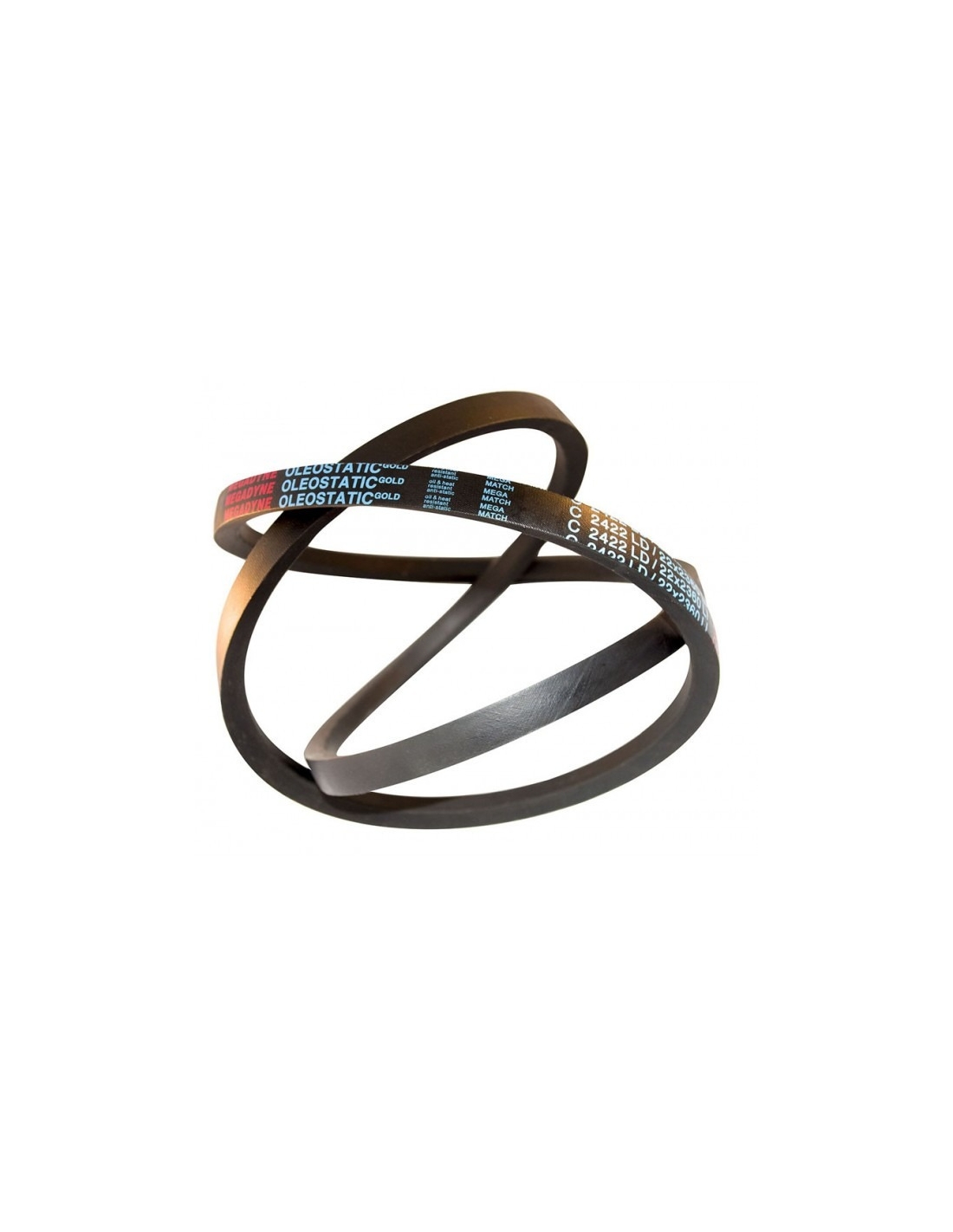

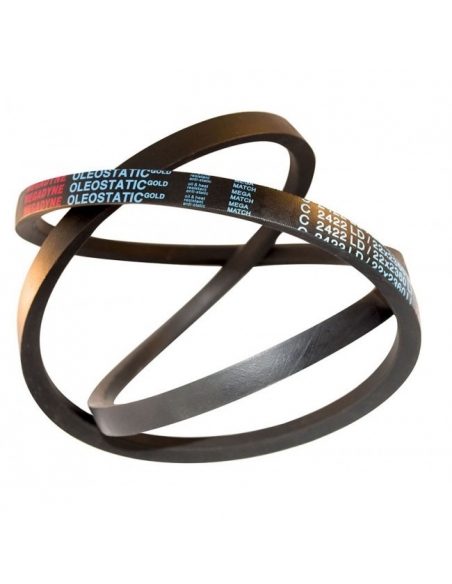

V-belt OLEOSTATIC GOLD SPB 17x1320mm - MEGADYNE

€28.53 Tax included

€23.58 tax excl.

V-belt OLEOSTATIC GOLD profile type "SPB" 17x14mm, with an internal development length of Li=1260mm,for power transmission in industrial machinery, agricultural and gardening machinery applications. Careful design and manufacture, which provides low stretching, wear and are resistant to lubricant. The OLEOSTATIC GOLD series are the maximum exponent of the range of lined trapezoidal straps.

  • Ref: spbOLEOSTATIC GOLD 1320
  • Megadyne Part number: 390701050009
  • Interior development length (Li): 1260mm
  • Reference development length (Lw - Ld): 1320mm.
  • Outer length (La - Le) : 1342mm.


Perfil SPB



No queries yet, leave the first!


V-belt oleostatic gold, with "SPB" type profile section of 17x14mm and with an internal development of 1260mm, specially designed for maximum performance in a wide range of industrial applications, agricultural machinery and gardening.

Made with high quality raw materials to provide belts with high performance, low stretch and very resistant to wear. They are also resistant to lubricant and with a wide temperature range (-30ºC to +80ºC).
OLEOSTATIC GOLD has a transmission capacity of up to 30% more compared to standard OLEOSTATIC belts, so it allows you to have a more compact transmission design. All components are halogen-free in compliance with RoHs regulations.

Manufactured according to REACH standards and tolerances according to ISO 4184

composicion correas Megadyne

Specifications:

  • Manufacturer: MEGADYNE.
  • Series: oleostatic gold.
  • Reference: SPB1320.
  • Part number: 390701050009
  • Type: Classic section "SPB".
  • Interior development length (Li): 1260mm.
  • Reference development length (Lw - Ld): 1320mm.
  • Outer length (La -Le): 1342mm.
  • Dimensions of the section 17x14mm.
  • Resistant to lubrication: YES.
  • Temperature range: -30ºC to +80ºC.
  • Static conductivity: according to ISO 1813.
  • Tolerance: according to ISO 4184
  • Weight: 0,3 Kg.

Serie SPB


Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
