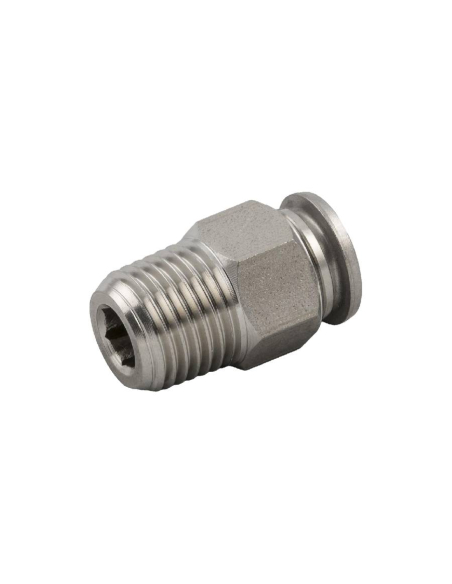

Straight male conical fitting 1/4 tube 4mm INOX Series 60000 - Aignep

Straight male conical fitting with 1/4 thread for 4mm tube, body made of AISI 316 L STAINLESS steel. This type of automatic connection and disconnection fittings are suitable for use with corrosive fluids and circuits in aggressive environments; They are specially designed for use in sectors such as the agri-food industry for permanent contact with food fluids, chemical, petrochemical, pharmaceutical, medical, vacuum, use in difficult environments (even saline). They can be disinfected and washed even with the most aggressive detergents. .


The 60000 INOX series of fittings is manufactured in total hygienic-sanitary safety and has international certification NSF/ANSI 169, as well as MOCA conformities regulation EU 1935/2004, NSF/ANSI 61, NSF/ANSI 372.





Advantages of the 60000 INOX series:

• The stainless steel clamp guarantees the perfect grip of the tube of any material without damaging the surface. The connection between tube and fitting ensures total tightness even in conditions of impact or vibration.
• The particular geometry of the seal guarantees perfect sealing even in vacuum.
• All threads in this series are manufactured with a sealing gasket that allows the immediate use of the fitting, significantly reducing installation time.
• All straight fittings can also be assembled with a hexagonal wrench and can be used even in very small spaces.
• Adjustable mounting with internal security system. Improved durability to rotation and traction.

Technical characteristics:

• Manufacturer: Aignep
• Reference: 60000 4 1/4
• Tapered male thread: 1/4
• Tube outer diameter: 4mm
• Fluids: Food, chemical, compressed air and vacuum industries
• Operating pressure: -0.99 bar to 20bar
• Working temperature: -15C to +190C
• Material: AISI 316L STAINLESS STEEL
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas according to ISO 228 Class A
  • ISO R/262 compliant metric
• Certifications:

  • NSF/ANSI 61: Establishes minimum health effects requirements for chemical contaminants and impurities that are indirectly transmitted to drinking water from products, components, and materials used in drinking water systems.
  • NSF/ANSI 372: Establishes procedures for determining lead content in components of drinking water systems.
  • NSF/ANSI 169: Establishes minimum food protection and sanitation requirements for materials
  • EC Regulation 1935/2004: Establishes the Community legislative framework applicable to materials and objects intended to come into contact with food.

For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
