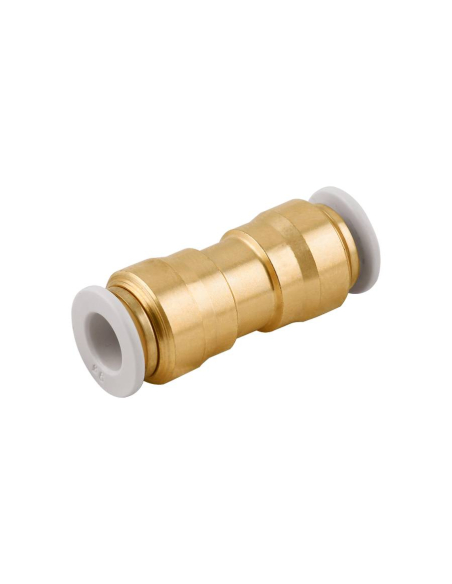

Straight intermediate tube fitting 6mm for food and drinking water use Series 59000 FOOD - Aignep

Straight intermediate tube fitting 6mm for food and drinking water use Series 59000 FOOD - Aignep

€4.33 Tax included

€3.58 tax excl.

Intermediate straight fitting for 6mm tube , body made of lead-free brass. Fittings intended for food use and drinking water. They have international NSF/ANSI 169 certification and MOCA reg conformity. EU 1935/2004, NSF/ANSI 61, NSF/ANSI 372, DM 174/2004.

Series of Push-In fittings designed for direct and indirect contact with food, drinking water, beverages, air, vacuum and other liquids.

Series: 59000 FOOD
Reference: 59040 6

aignep59000 REGULATIONS

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Intermediate straight fitting for 6mm tube , body made of brass with low lead content (CW510L). This type of automatic fittings are specially designed for direct and indirect contact with food, drinking water, beverages, compressed air, vacuum and other liquids; They are widely used in the agri-food industry, coffee and vending machines, food and beverage sector, medical and vacuum sectors.


The 59000 FOOD series of fittings is manufactured in total hygienic-sanitary safety and has international certification NSF/ANSI 169, as well as MOCA conformities regulation EU 1935/2004, NSF/ANSI 61, NSF/ANSI 372, DM 174/ 2004 regulation 98/83/EC.


59000DRAWING


Advantages of the 59000 FOOD series:

  • The stainless steel clamp guarantees the perfect grip of the tube of any material without damaging the surface. The connection between tube and fitting ensures total tightness even in conditions of impact or vibration.
  • The particular geometry of the seal guarantees perfect sealing even in vacuum.
  • All threads in this series are manufactured with a sealing gasket that allows the immediate use of the fitting, significantly reducing installation, connection and instantaneous disconnection time.
  • Adjustable mounting with internal security system, improving durability to rotation and traction.



Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 59040 6
  • Tube outer diameter: 6mm
  • Compatible fluids: Compressed air / Vacuum / Water / Food / Steam (on request in EPDM PX) Max 130C
  • Operating pressure: -0.99 bar to 20bar
  • Working temperature: -15C to +190C
  • Material: Brass CW510L
  • Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
  • Certifications:
    • NSF/ANSI 61: Establishes minimum health effects requirements for chemical contaminants and impurities that are indirectly transmitted to drinking water from products, components, and materials used in drinking water systems.
    • NSF/ANSI 372: Establishes procedures for determining lead content in components of drinking water systems.
    • NSF/ANSI 169: Establishes minimum food protection and sanitation requirements for materials
    • EC Regulation 1935/2004: Establishes the Community legislative framework applicable to materials and objects intended to come into contact with food.
    • Decree DM 174/2004: Decree that regulates the materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption.

(*) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.


59040DIMENSIONS
59040TD







For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
