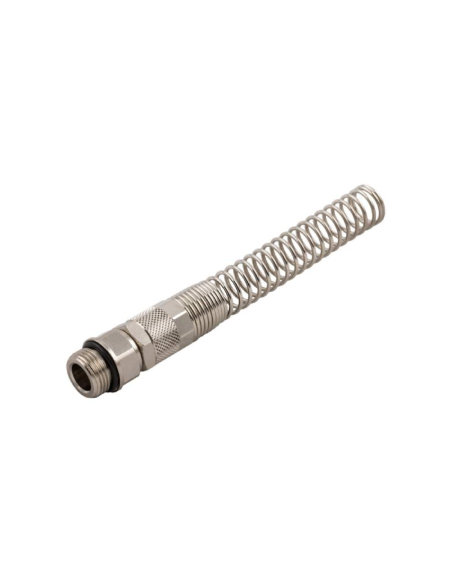

1/4 male adjustable straight fitting with spring 8/6 Series 1000 - Aignep

1/4 male adjustable straight fitting with spring 8/6 Series 1000 - Aignep

€3.25 Tax included

€2.69 tax excl.

Straight adjustable fitting with 1/4" cylindrical male thread and spring for 8x6mm diameter tube. Spring made of AISI 304 stainless steel, NBR seal, thread and nut made of nickel-plated brass. These fittings allow for fast and extremely safe connection in pneumatic and fluid applications.


Series: 1000
Reference: 1027 8/6 1/4

aignep
REGULATIONS

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Straight adjustable fitting with 1/4" cylindrical male thread and spring for 8x6mm diameter tube. Spring made of AISI 304 stainless steel, NBR seal, thread and nut made of nickel-plated brass. These fittings have a locking system that allows for extremely secure connection of thermoplastic tubes for pneumatic and fluidic applications. Its spike design allows for a better connection with the tube, while the hexagon of the locking nut on the top significantly simplifies manual or key locking, without elastomeric sealing elements.

These types of fittings are very useful in a multitude of applications such as compressed air, pneumatic automation, industrial water circuits, inert gases, vapours, fluids, vacuum, etc. The pressure and temperature are determined based on the tube used, therefore these values are defined based on the characteristics of the tube itself. For the “rotating” version fittings the values are: - 20C / + 80C.

Under no circumstances should “swivel” fittings be used as rotary fittings.


1015materials
Mounting:


1015ASSEMBLY

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 1027 8/6 1/4
  • Cylindrical thread: 1/4
  • Tube diameter: 8x6mm
  • Fluid and liquids: Compatible with the connection type
  • Temperature (swivel fittings): - 20C to +80C
  • Thread and nut material: Nickel-plated brass
  • Spring material: Stainless steel AISI 304 - EN 1.4301
  • Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
  • Specific measurements for polyurethane tube: 8/5 - 8/5.5, 12/9
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262.

(*) use of 90 to 98 Shore, for maximum performance 98 Shore A is recommended.


Dimensions:

1027DIMENSIONS1027TD



(**) Specific measurements for polyurethane tube


For further information you can download the technical sheet by clicking on the "Attached Files" tab .

Professional use material, install in compliance with the regulations in force at the installation site.
