Ball bearing insert SA206-2RS with eccentric for sheet metal housing - ISB

€8.78 Tax included

€7.26 tax excl.

Ball bearingwith eccentric ring SA206-2RS, dimensions 30x62x16mm. Single row deep groove ball bearing to be mounted on stamped sheet metal housing, single-sided collar and eccentric ring fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Part number: SA206-2RS

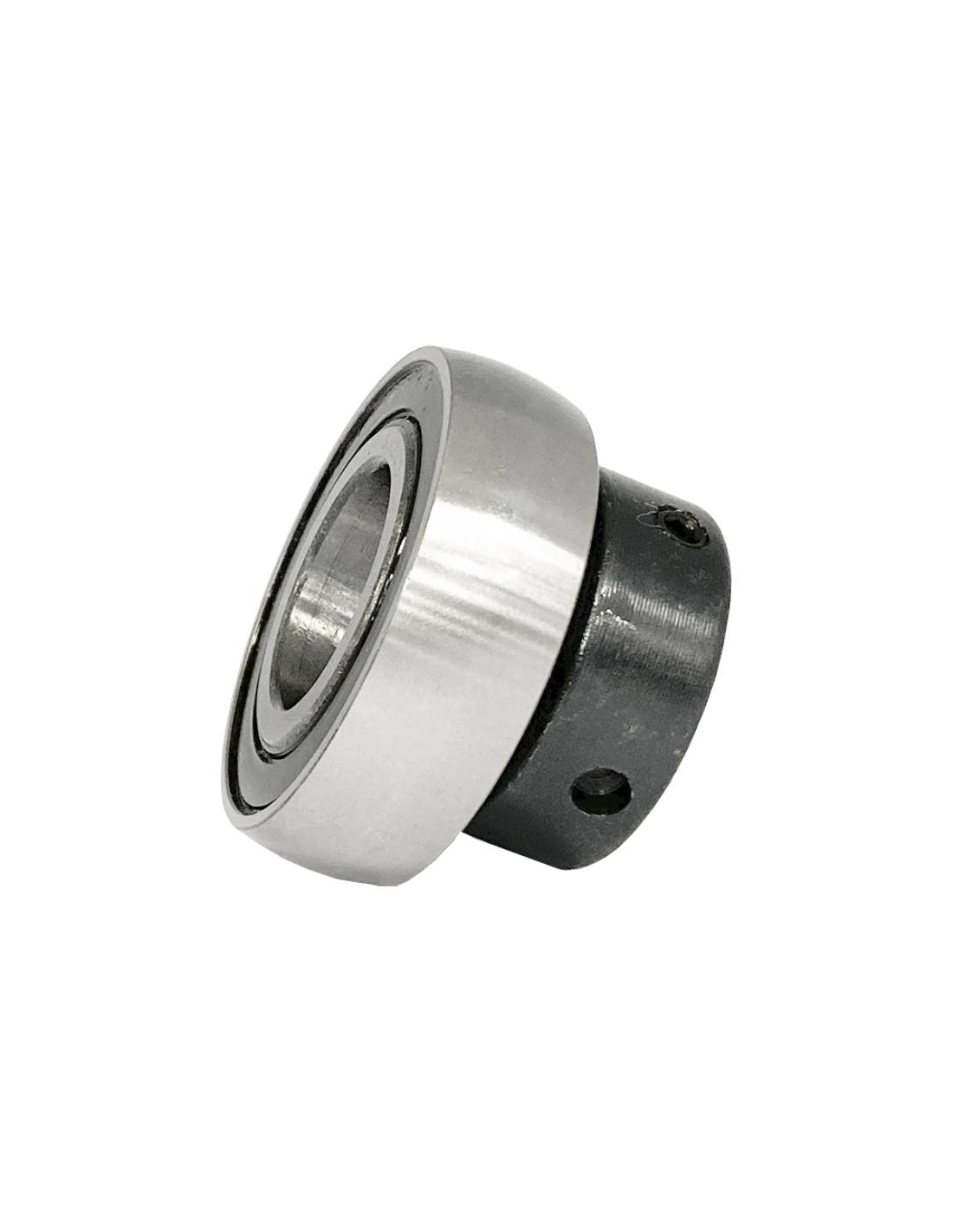

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Ball bearing with eccentric SA206-2RS. Single row deep groove ball bearing to be mounted on a stamped sheet metal support, single-sided collar and eccentric ring fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Dimensions: Ø30xØ62x16mm

Characteristics:

Manufacturer ISB
Part number: SA206-2RS
Inner diameter: 30mm
Outside diameter: 62mm
Sealing: 2RS type, elastic (NBR) on both sides
Material: hardened steel
Dynamic load capacity C: 18500N
Static load capacity C₀: 10800N
Weight: 0,30Kg

Dimensions:

d: 30 mm
D: 62 mm
_B1: 35.5 mm
B: 23.8 mm
C: 16mm
S: 9 mm
ds: M8x1
G: 6 mm
B5: 15.9 mm
d3: 34.5 mm
F: 5.0 mm

Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation
