Ball insert bearing SB210-2RS for sheet metal housing - ISB

€26.57 Tax included

€21.96 tax excl.

Ball bearing, setscrew fixing SB210-2RS, dimensions 50x90x20mm. Single row deep groove ball bearing to be mounted on a stamped sheet metal housing, single-sided collar and set screw fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Part number: SB210-2RS

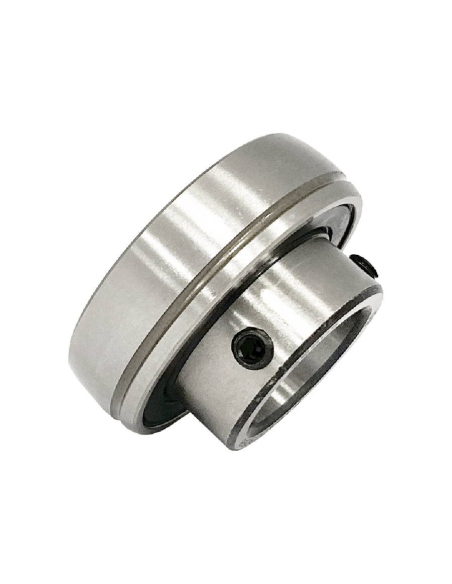

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


SB210-2RS ball bearing with set screw fixing. Single row deep groove ball bearing to be mounted on a stamped sheet metal support, single-sided collar and set screw fixing, made of steel. With two rubber sealing caps (2RS) for sealing

Dimensions: Ø50xØ90x20mm


Characteristics:

  • Manufacturer ISB
  • Part number: SB210-2RS
  • Inner diameter: 50mm
  • Outside diameter: 90mm
  • Sealing: 2RS type, elastic (NBR) on both sides
  • Material: hardened steel
  • Dynamic load capacity C: 35300N
  • Static load capacity C₀: 28160N
  • Weight: 0.80Kg


Dimensions:


  • d: 50 mm
  • D: 90 mm
  • B: 43.5 mm
  • C: 20 mm
  • S: 10.9 mm
  • S1: 32.6 mm
  • ds: M10x1
  • G: 9.2 mm
  • F: 6.5 mm


Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
