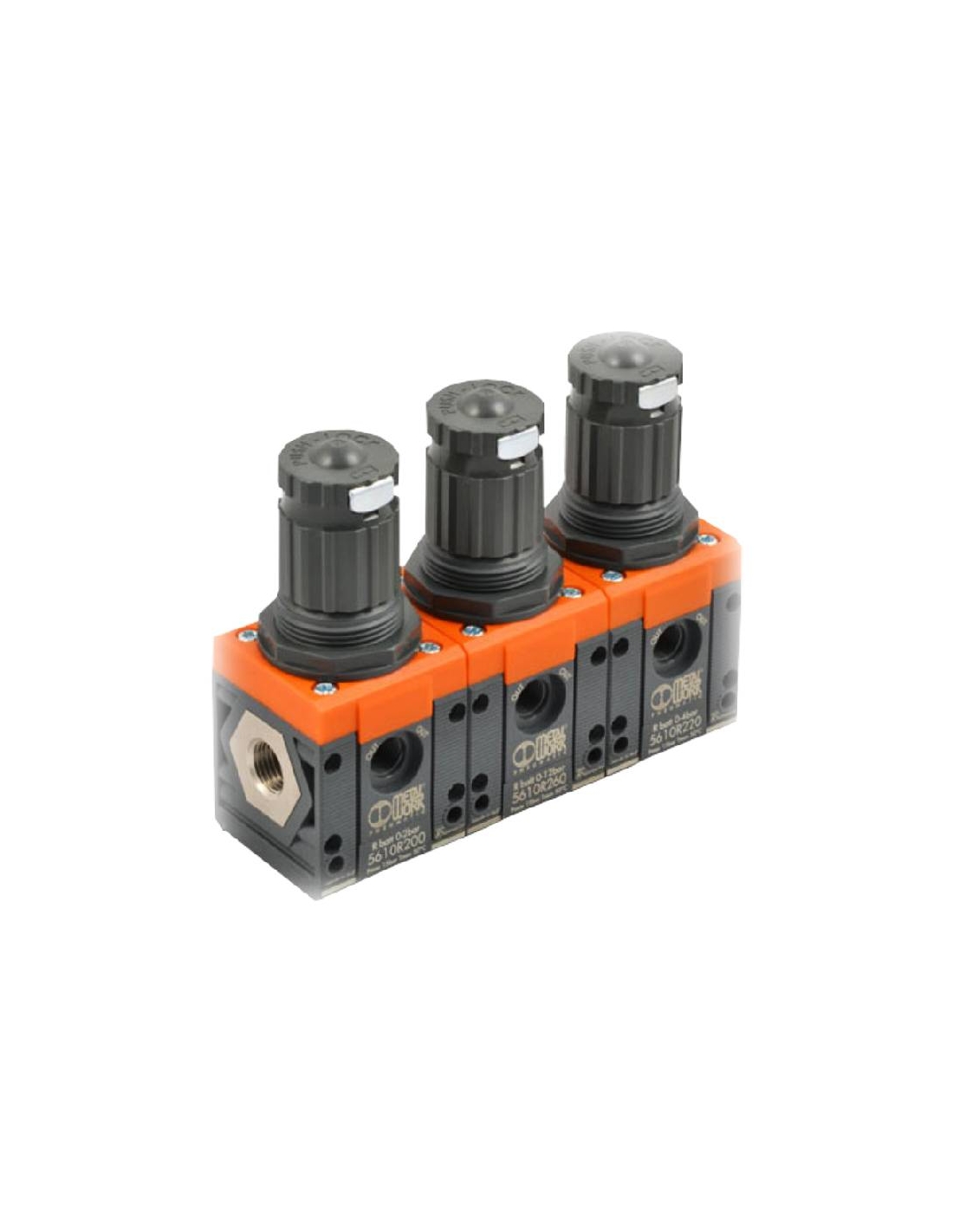

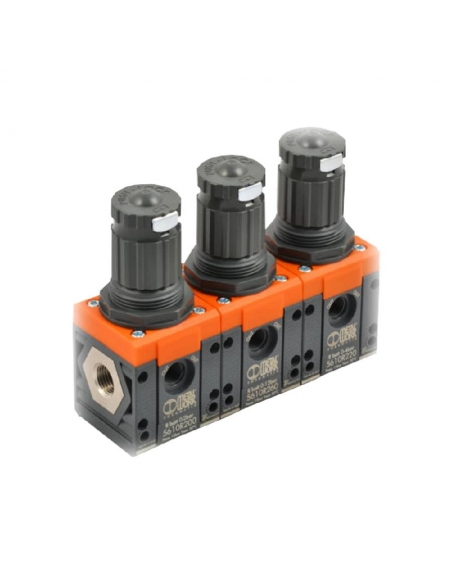

1/4 0-12 bar battery pressure regulator , body made of high-resistance technopolymer. It is used to take air at the set pressure from the front and rear ports of the body, while the pneumatic inlet and outlet ports connect directly.
It is possible to assemble several regulators together, all supplied at the same pressure, and obtain different regulated pressures, despite the pressure of the previous module.
Utility to compensate for upstream pressure changes. It has a discharge valve, rapid discharge of downstream pressure and a lockable knob.
Technical characteristics.
- Manufacturer: Metalwork
- Reference: 5612R262
- Regulator Size: Size 1
- Threaded connection size: 1/4".
- Regulation range: 0-12 bar.
- Maximum inlet pressure: 15 bar.
- Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 330
- Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 500
- Relieving discharge flow rate, at 6.3 bar (0.63 MPa; 91 psi) (Nl/min): 70
- Fluid: Compressed air or other inert gases.
- Wall fixing screws: 2xM4.
- Pressure gauge connection: 1/8".
- temperature at 10 bar; 1MPa; 145 psi ( °C): 10 ÷ +50
- Included: Full discharge step by zeroing inlet pressure and lockable knob.
- Inlet pressure compensation: Included, through balanced valve
- Weight: 188g
Notes on use: The pressure must always be set to rise, use the regulator with plate pressure as close as possible to the desired pressure for greater sensitivity in regulation. On request, version without overpressure relief.
Dimensions:
For other models or sizes consult.
Mounting accessories not included.
Material for professional use, install in compliance with the regulations in force at the place of installation.
For more information, you can download the technical sheet by clicking on the "Annexes" tab.
