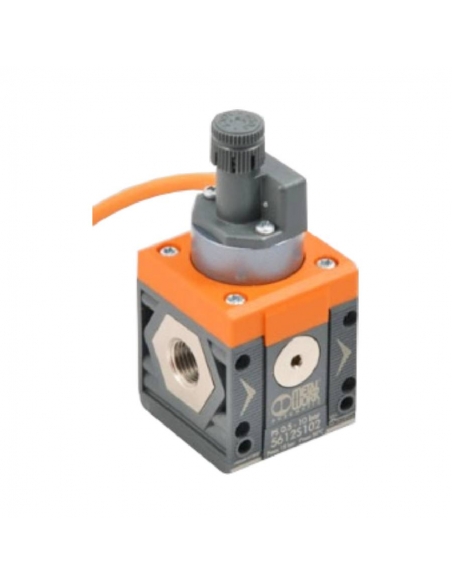

Pressure switch Size 1 1/4 cable 300mm with connector M8 Syntesi - Metal Work

€70.40 Tax included

58.67 tax excl.

5612S202

1/4" size 1 pressure switch, presents a high degree of miniaturization. It is a device whose function is to open or close circuits depending on the adjusted pressure.

Reference: 5612S202

syntesi pressure switch diagrammetal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4" size 1 pressure switch, it has a high degree of miniaturization. They are ready assembled with a 2m cable or with an M8 connector with a 300mm cable. The contact is of the switch type, so they can be normally open or closed. They can be regulated by means of a knurled push-lock knob.

Characteristic:
  • Manufacturer: Metal Work
  • Reference: 5612S202
  • Discharge threaded coupling: 1/4"
  • Maximum current / maximum voltage: 2A / 250V
  • Cable outer diameter: 4.9mm
  • Number and section of wires: 3 x 0.5mm²
  • Contacts: normally open (NO) and normally closed (NC)
  • Protection: IP65
  • pressure max. admitted:
      • bar : 15
      • MPa: 1.5
      • psi: 217
  • Flow rate of additional air intakes 6.3 bar (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi): Nl/min 500 - scfm 18
  • temperature at 10 bar ; 1MPa; 145psi°: -10÷+50
  • Fluid: Filtered air with or without lubrication, if lubrication is used it must be continuous.
  • Mounting position: In any position
  • Supplementary air intake, for pressure gauge or fitting: 1/8”, front and rear
  • Wall fixing screws: Number 2 M4 screws



Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
