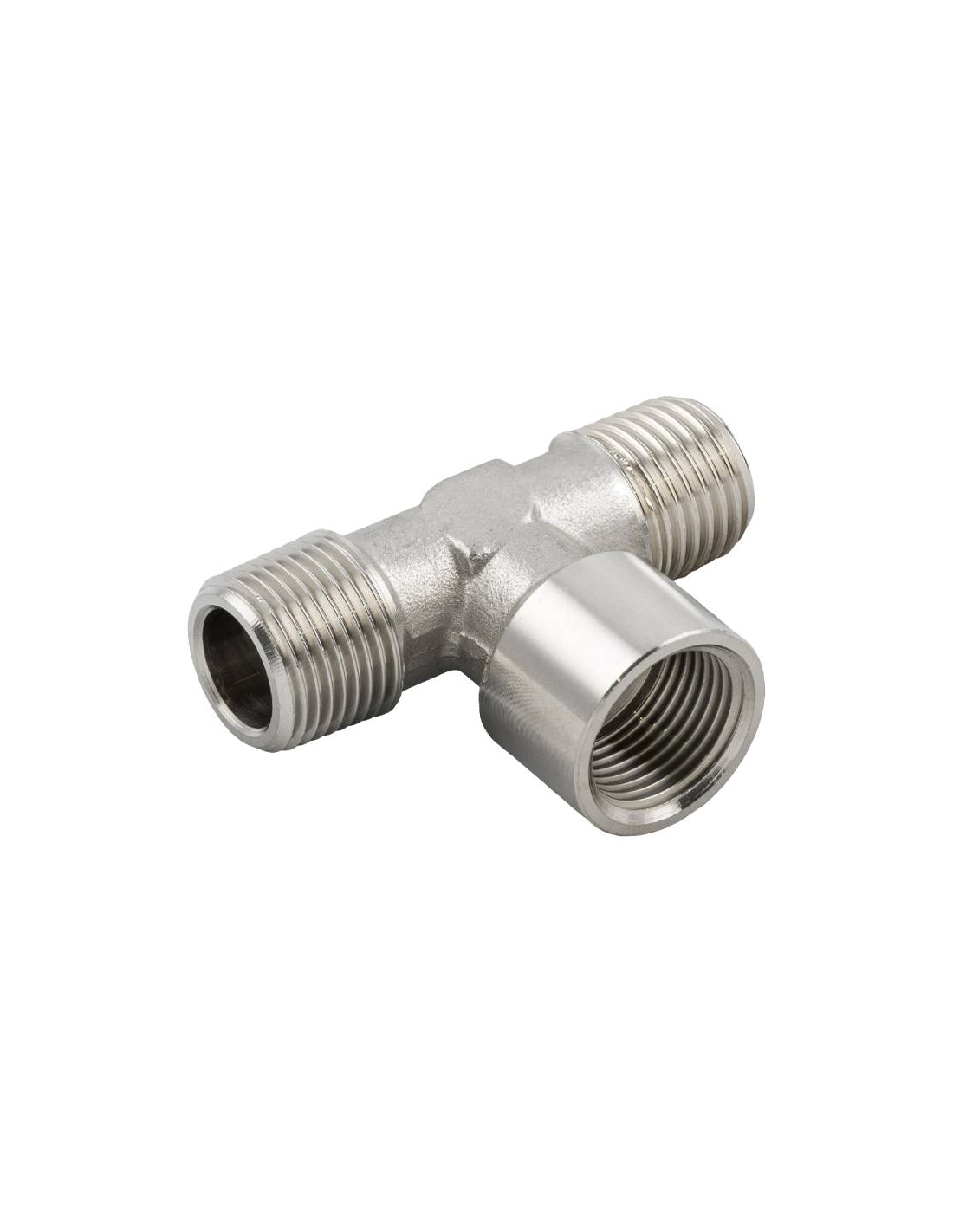

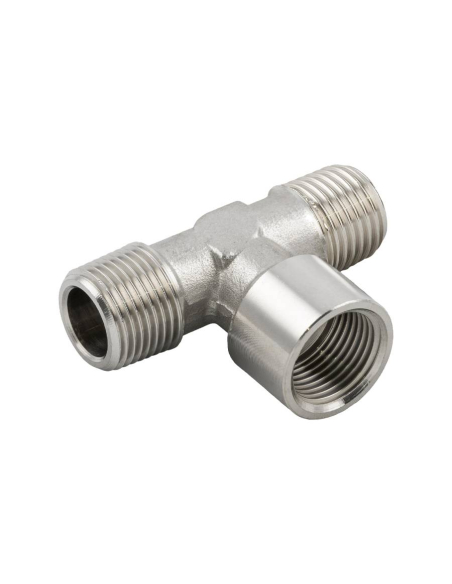

3/8 T fitting with female central thread , body made of AISI 316L STAINLESS steel. This type of fitting offers excellent corrosion resistance; They are specially designed for fluids used in the agri-food industry (food and beverages), chemical, petrochemical, pharmaceutical, medical, inkjet, printing, graphic arts, vacuum, etc.
The 62000 INOX series of fittings is manufactured in total hygienic-sanitary safety and has international certification NSF/ANSI 169, as well as MOCA compliance with EU regulation 1935/2004.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 62420 3/8
- Female thread: 3/8
- Fluids: Food and chemical industry
- Operating pressure: -0.99 bar to 140bar
- Working temperature: -110C to +300C (for items with gasket -15C to +200C)
- Material: AISI 316L STAINLESS STEEL
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- Certifications:
- NSF 169: Standard establishing minimum food protection and sanitation requirements for materials
- EC Regulation 1935/2004: Establishes the Community legislative framework applicable to materials and objects intended to come into contact with food.
For more information you can download the technical sheet by clicking on the "Attachments" tab .
Material for professional use, install in compliance with the regulations in force at the installation site.
