Thermal relay regulation 0.1 to 0.16 A
Thermal relay regulation 0.1 to 0.16 A
Thermal relay regulation 0.1 to 0.16 A
Thermal relay regulation 0.1 to 0.16 A
Thermal relay regulation 0.1 to 0.16 A
Thermal relay regulation 0.1 to 0.16 A

Thermal regulation relay 0.25 to 0.40 A

€9.10 Tax included

€7.52 tax excl.

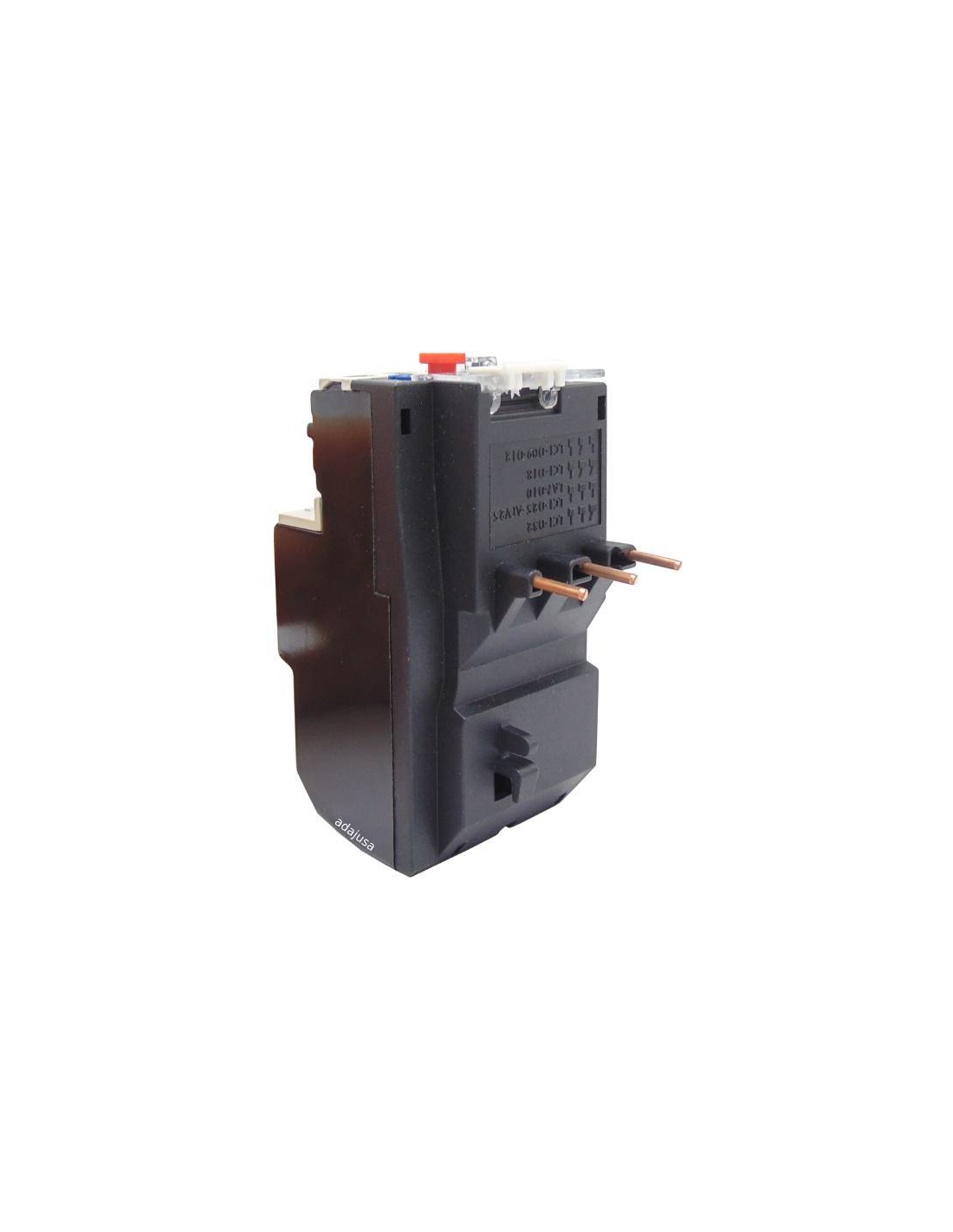

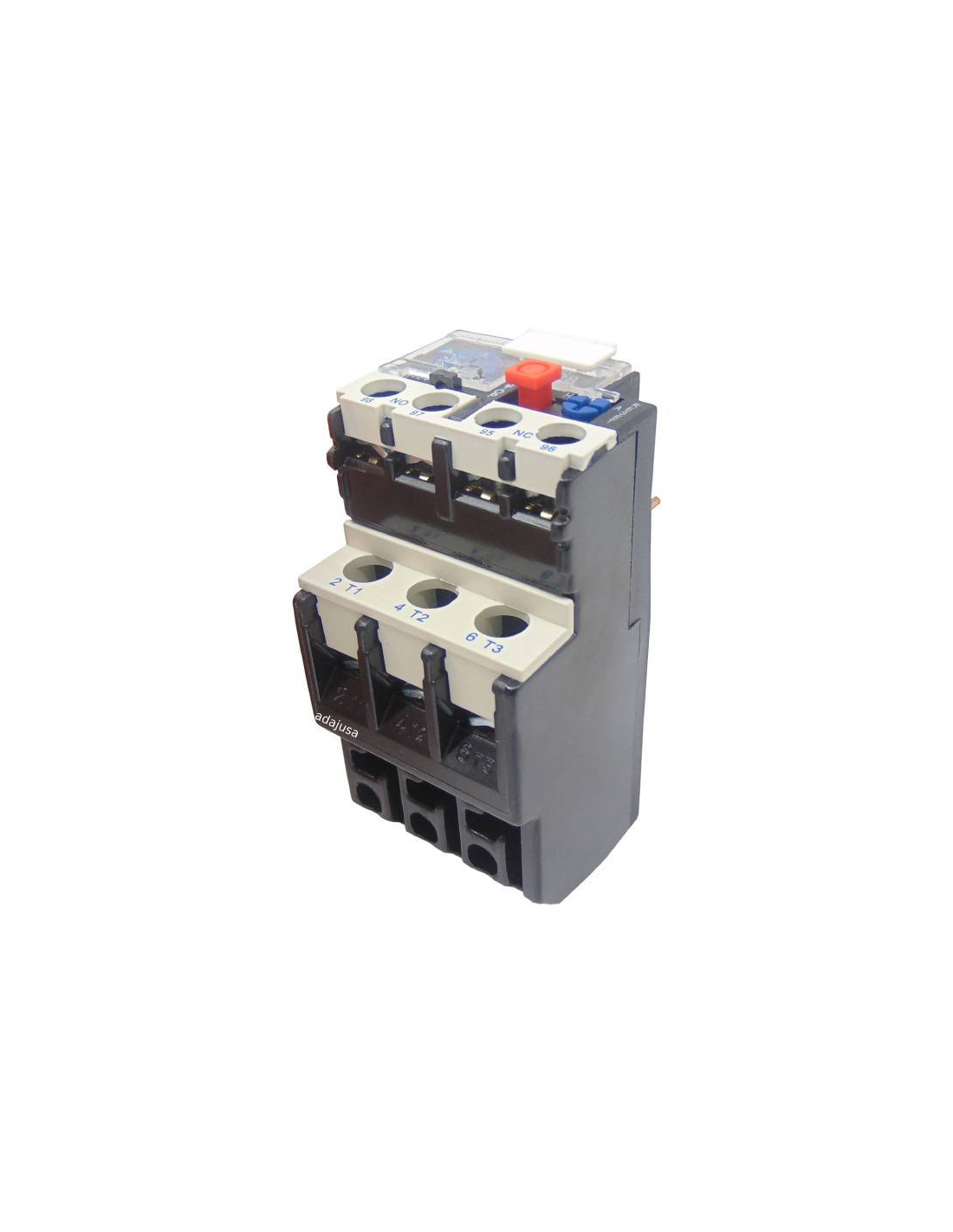

Three-phase thermal relay for protection of three-phase and single-phase electric motors against overloads or absence of phase. The regulation of the thermal relay is between 0.25 and 0.4 A.


Reference: MTR 0.25-0.4A
Thermal relay electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase thermal relay for protection of electric motors against overloads and absence of phase. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The reset can be selected to occur automatically or manually using a button located on the body of the thermal relay.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be fixed to a DIN rail using the available adapter.



Thermal relay features:

  • Manufacturer/Supplier: Mixvil
  • Supplier reference: MTR 0.25-0.4A
  • Thermal relay regulation range: 0.25 to 0.4 A
  • Insulation voltage (Ui): 660V/1000V
  • Ambient temperature: -5ºC...+40ºC
  • Altitude: maximum 2000m
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±5%
  • Regulation: IEC60947-4-1


Thermal relay dimensions 0.1 to 0.16 A


Material for professional use, install in compliance with the regulations in force at the installation site.
