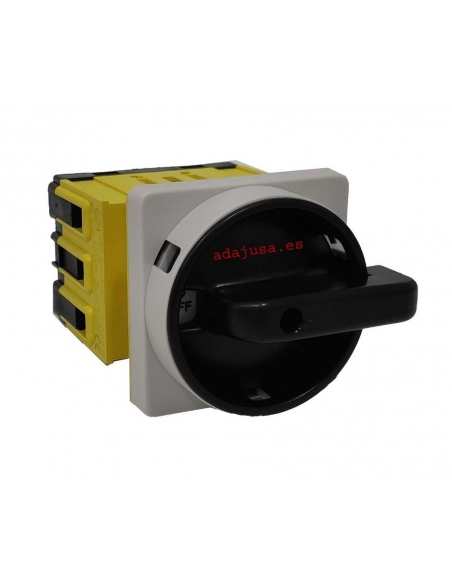

Disconnector switch 3 poles 32A full 67x67 grey lever black sq giovenzana series

Three-phase disconnector switch 32A for inductive loads (Electric motors) and general control. Rotary command 90º with two positions 0-1. Gray color and lever in black. Possibility of locking by padlock.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by rear-panel fixation (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

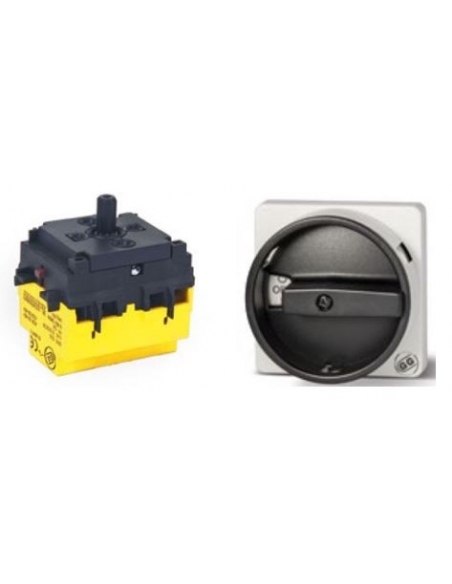

In addition to the transpanel mounting (back frame) the disconnector switch can be installed on din-rail fixing it by its base. an auxiliary contact can also be added and converted into 4 poles.

Note: Padlock not included in the supply.

characteristics:

• Brand: Giovenzana.
• Vendor reference: SQ032003R.
• number of poles: 3.
• Rated voltage Ue: 690V.
• Nominal intensity Ie (AC21A): 32A.
• Nominal thermal intensity ith: 40a.
• Rated interrupt capacity: 8kA.
• Contacts: Slow opening of double interrupt.
• Number of maneuvers / hours: 120.
• Mechanical durability: 100,000 maneuvers.
• Maneuver angle: 90º.
• Built-in assembly.
• Degree of protection:
• Controls type 1-4-4X: IP-65.
• Bornes: IP-20.
• Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

• Use category AC-21A: 40a.
• Use category AC-22A: 32A.
• Use category AC-23A:
• Standard three-phase motors 230Vac: 32A - 10kW.
• Standard three-phase motors 400Vac: 32A - 18,5kW.
• Use category AC-3:
• Standard three-phase motors 230Vac: 27A - 7,5kW.
• Standard three-phase motors 400VAc: 27A - 15kW.

dimensions:

assembly:
