Three-phase motor 0.18Kw 0.25CV with brake...
Three-phase motor 0.18Kw 0.25CV with brake 230/400V 1000 rpm B3 Legs Legs - MGM

Three-phase motor 0.18Kw 0.25CV with brake 230/400V 1000 rpm B3 Legs Legs - MGM

€442.61 Tax included

€365.79 tax excl.

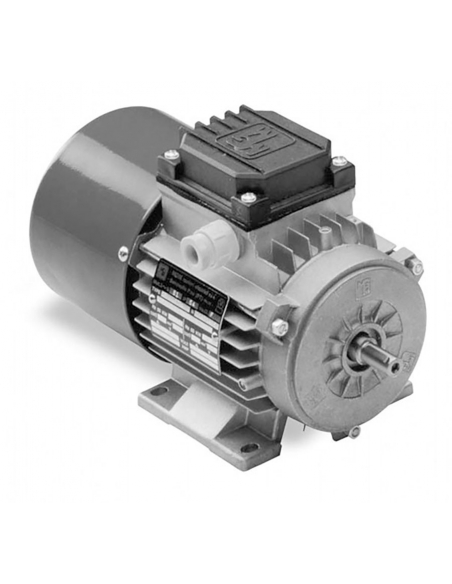

Three-phase self-braking electric motor 0.18kW (0.25HP) 230/400Vac., 1000 rpm (6 Poles), B3-leg flange, aluminium housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BAX71A6 B3

  • Voltage: 230/400Vac 50/60Hz.
  • Power: 0.18Kw - 0.25HP.
  • Number of poles: 6.
  • Revolutions: 1000 rpm .
  • Flange: B3 Legs .
  • Shaft diameter: 14mm.
  • Size: 71
  • Energy efficiency: IE2.

MGM logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Electric motor with brake, three-phase 0.18kW (0.25HP) 230/400Vac 1000 rpm B3 flange ( Legs ). Made of cast aluminum, removable legs.

characteristics:

  • Manufacturer: MGM
  • Manufacturer reference: BAX71A6 B3
  • Motor type: self-braking squirrel cage asynchronous motor
  • Power: 0.18 Kw (0.25 HP)
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 6 Poles
  • Revolutions: 875 rpm
  • Intensity at 400V: 0.6A
  • Efficiency: IE2
  • Power factor: 0.71
  • Torque (Cn): 1.96 Nm
  • Brake type: electromagnetic.
  • Brake torque: 5 Nm.
  • Continuous service: S1.
  • Protection class: IP54
  • Fastening type: B3 Flange Legs
  • Shaft diameter: Ø14mm.
  • Case size 71
  • Housing material : Aluminum.
  • Weight: 7.5 Kg.
  • CE marked.

For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection switch to prevent damage due to overload.

DimensionsEnginesBrakes

For further information you can download the technical sheet by clicking on the "Attached Files" tab.


Professional use material, install in compliance with the regulations in force at the place of installation.
