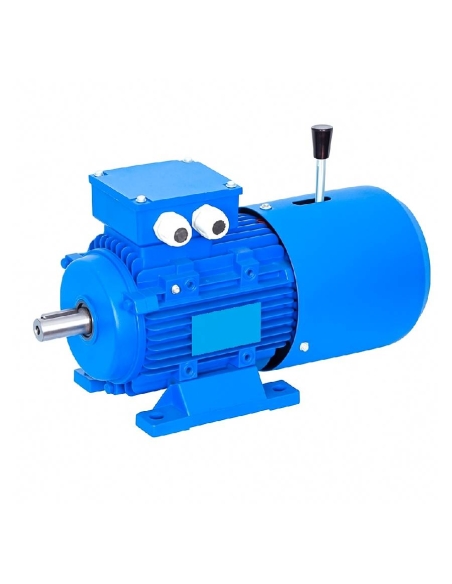

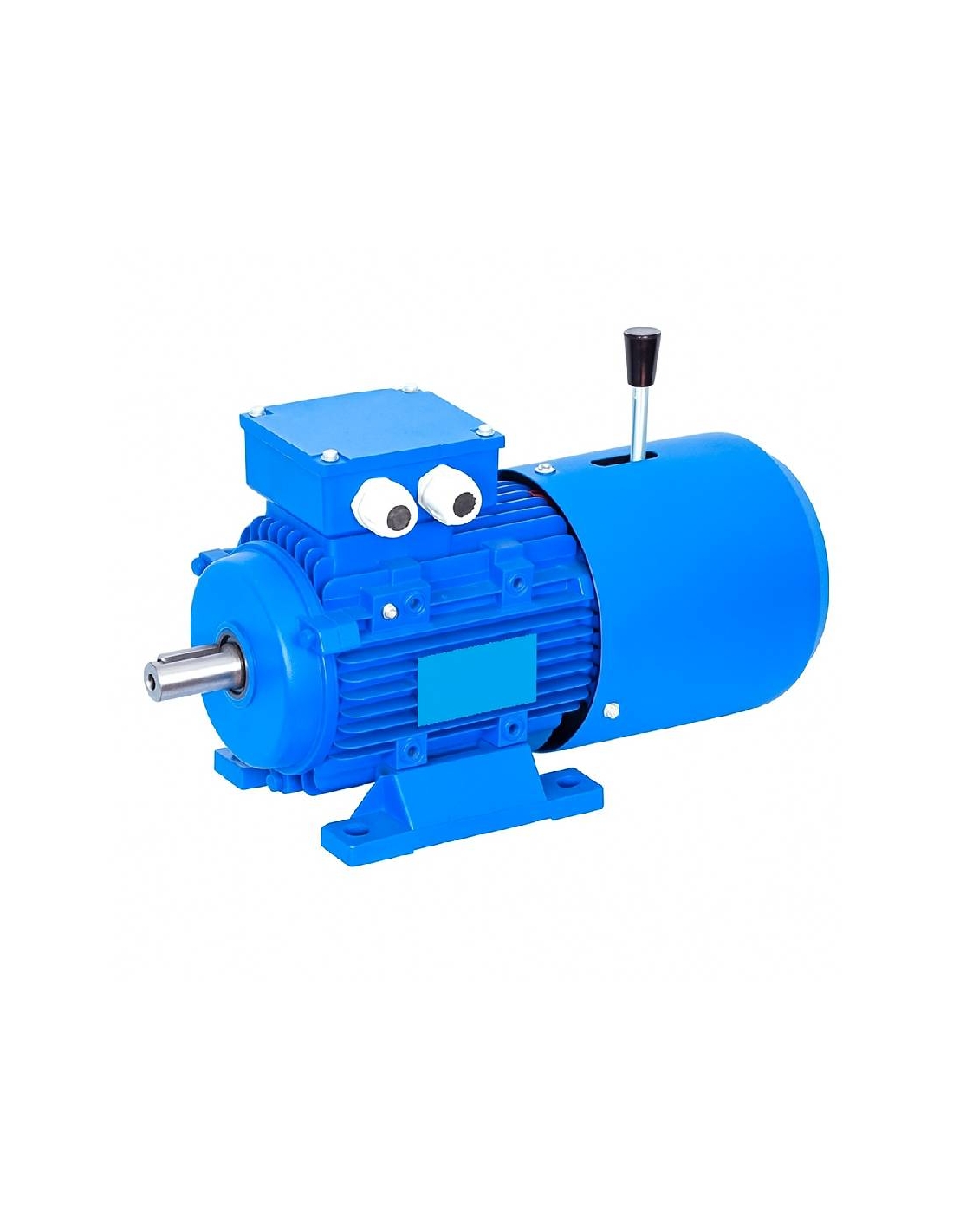

Self-braking electric motor, three-phase motor 0,37kW (0,5CV) 230/400Vac 1500 rpm Flange B3 (Legs). Made of cast aluminum, removable legs. Manual lateral brake release.
This type of motors are characterized by their high efficiency, energy saving and great braking force, being especially suitable for machines that have frequent starts. They are reliable, safe, easy to maintain and low noise motors. The brake can be released manually.
This type of brake is characterized by quietness and progressive intervention, both in starting and braking, due to the slower speed of anchor attraction. This causes the motor to start slightly braked, resulting in greater progressivity.
Characteristics:
- Manufacturer/Importer: Motorseg
- Manufacturer's part number: FXSSB712 4 B3DCP
- Motor type: Self-braking squirrel-cage asynchronous
- Power: 0.37 Kw (0.5hp)
- Efficiency: IE1
- Voltage: 230/400 Vac, 50/60Hz
- Number of poles: 4 Poles
- Revolutions: 1360 rpm
- Current at 400V: 1,12A
- Power factor: 0,75
- Static torque: 5 Nm
- Rated braking power: 30 W
- Efficiency: 67% Efficiency: 67% Efficiency: 67% Efficiency: 67
- Braking delay time without LOD: 0,2 sec
- Degree of protection: IP55
- Type of fastening: B3 flange Legs
- Shaft diameter: Ø14mm
- Case size 71
- Housing materialaluminum
For more information, other powers or executions, please consult us.
As in all asynchronous electric motors, it is mandatory to install a motor guard to prevent damage due to overload.
For more information you can download the technical data sheet by clicking on the "Attachments" tab |
| Material for professional use, to be installed in compliance with the regulations in force at the place of installation. |
