Three-phase cast iron electric motor 4Kw 5.5HP 400/690V B5 flange 4 poles 1500 | ADAJUSA | price

Three-phase motor 4Kw/5.5HP 400/690V 1500 rpm B5 flange cast iron casing

Name: Three-phase motor 4Kw/5.5HP 400/690V 1500 rpm B5 flange cast iron casing
Brand: Especial-MOT
SKU: SSY112M4B561
Price: 422.04 EUR
Availability: BackOrder

€422.04 Tax included

€351.70 tax excl.

SSY112M4B561

Three-phase electric motor 4kW (5.5CV) 400/690Vac, 1500 rpm (4 Poles), B5 flange, cast iron housing. Manufactured under European IEC standards.

Voltage: 400/690Vac 50/60Hz.
Number of poles: 4.
Revolutions: 1500 rpm.
Flange: B5.
Shaft diameter: 28mm.
Power: 4Kw - 5.5cv.
Size: 112.
Energy efficiency: IE1.

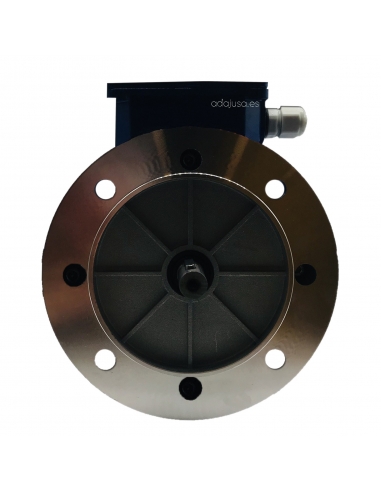

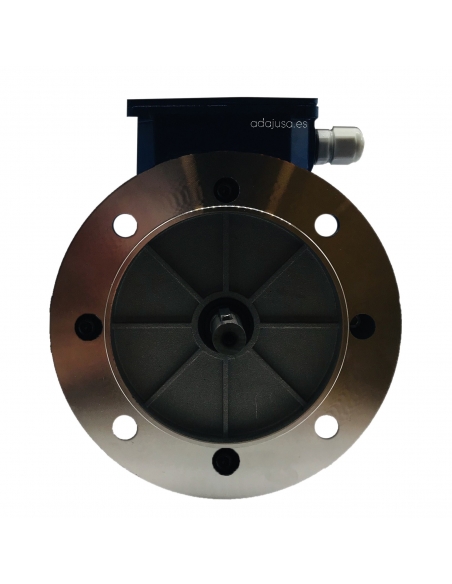

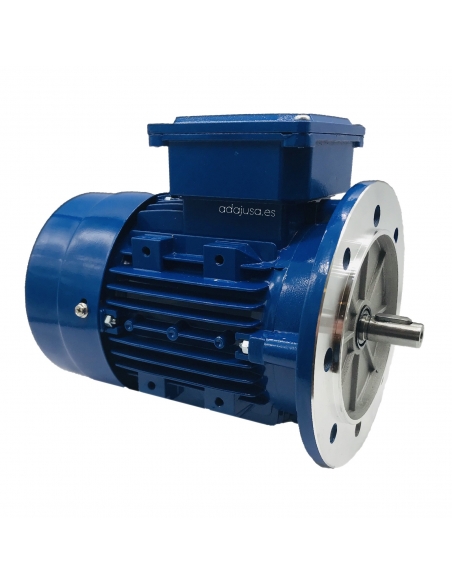

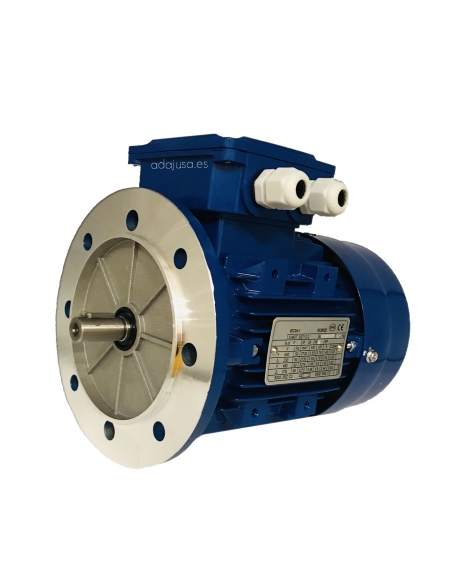

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase electric motor 4kW (5.5CV) 400/690Vac 1500 rpm B5 flange. Made of cast iron.
Standard three-phase electric motors for general purposes, manufactured under European IEC standards in aluminum with removable legs. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55.

characteristics:

Manufacturer/Importer: Motorseg
Reference: SSY-112M-4 B5 4/6
Motor type: squirrel cage asynchronous.
Efficiency: IE1.
Voltage: 400/690 Vac, 50/60Hz.
Number of poles: 4
Revolutions: 1500 (1440) rpm.
Power: 4 Kw (5.5CV).
Intensity: 8.8/5.1A.
Efficiency: 84.5%.
Continuous duty: S1.
Degree of protection: IP55.
Type of fastening: B5 flange.
Shaft diameter: Ø28mm.
Diameter of the flange: Ø250mm.
Case size 112 (112M).
PAM: 250/28.
Color: Blue.
Housing materialcast iron.
CE marked.

For more information, other powers or executions consult.
As in all asynchronous electric motors, it is mandatory the installation of a motor guard to prevent damage due to overload.

For further information you can download the technical data sheet by clicking on the "Attachments" tab. Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
