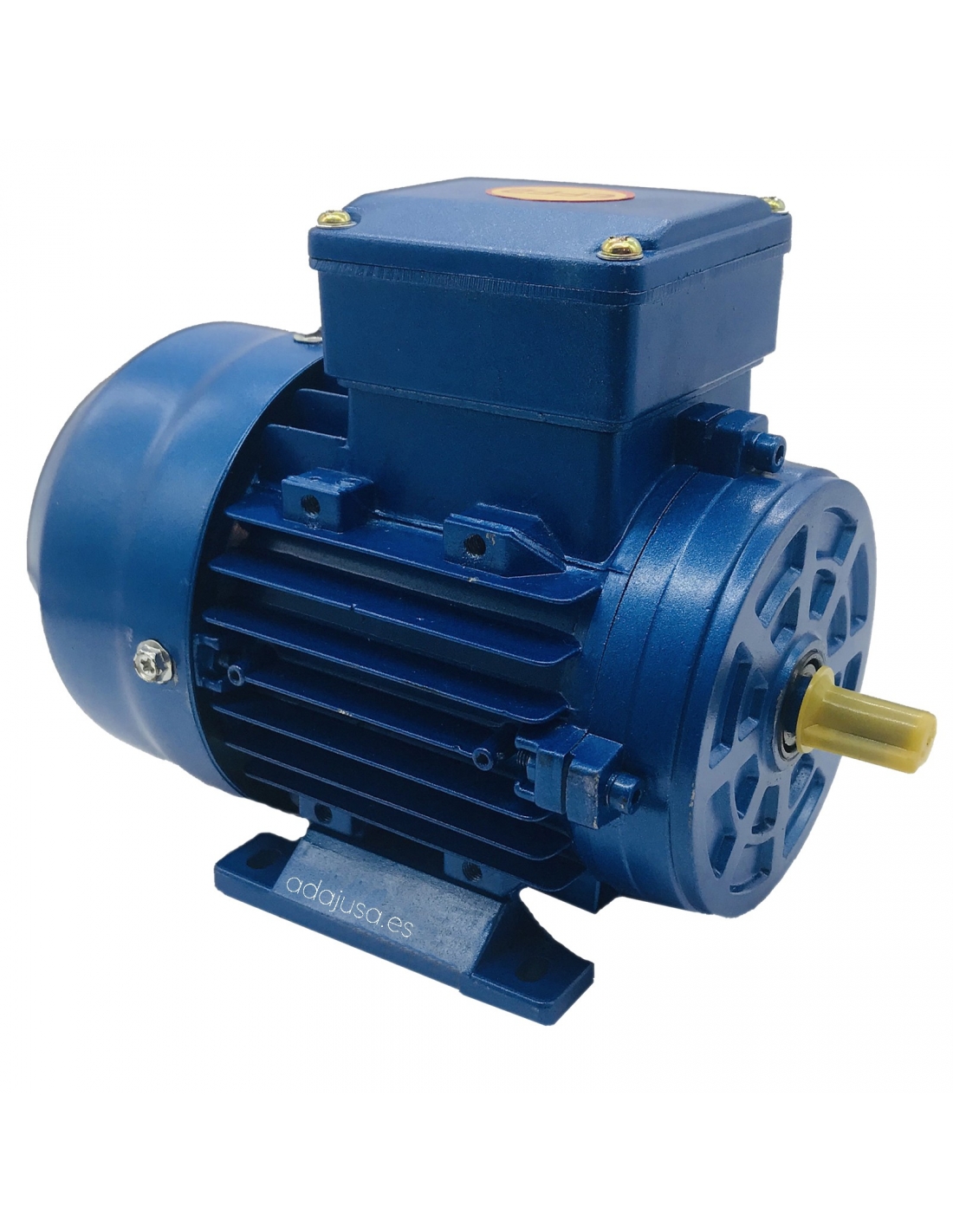

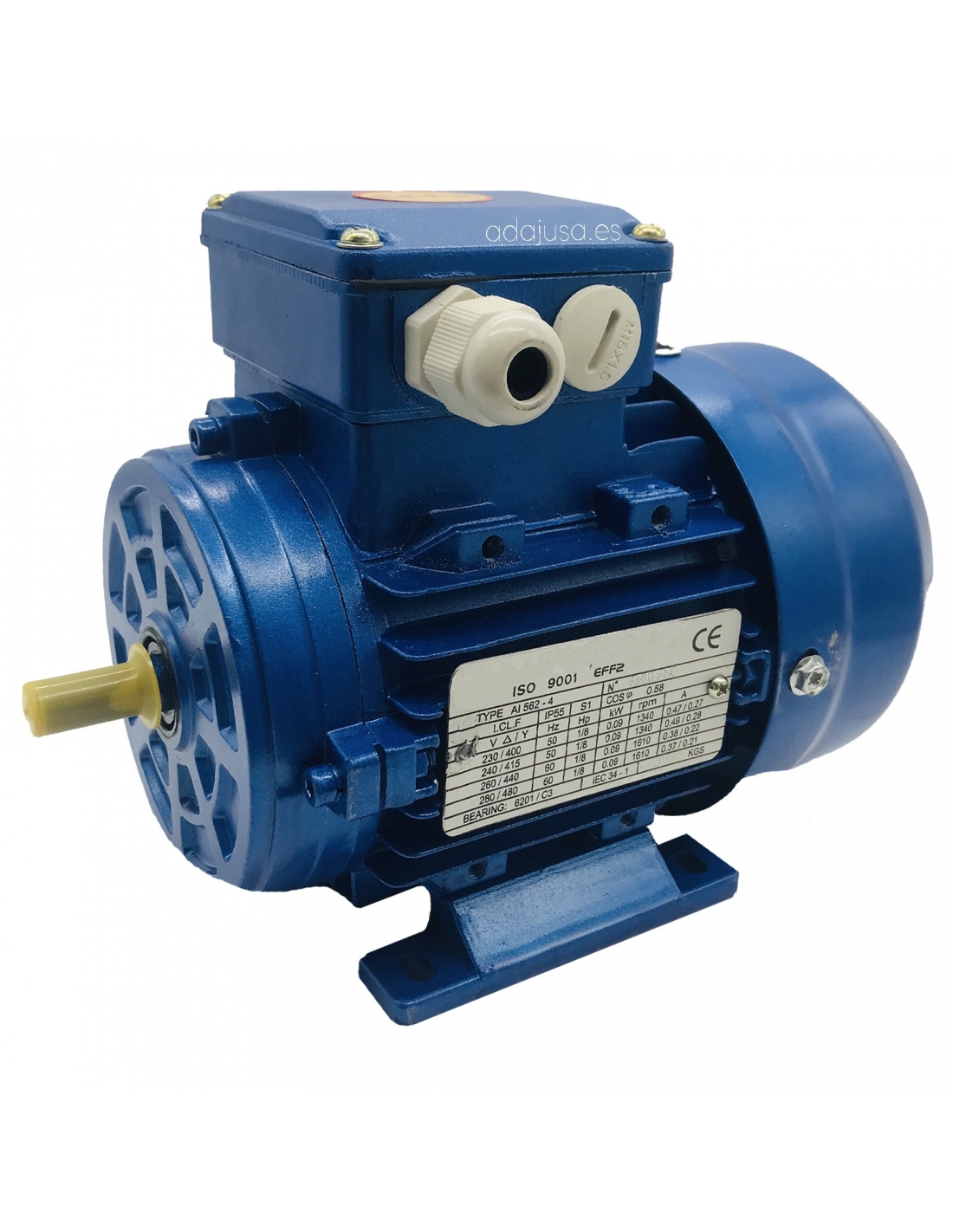

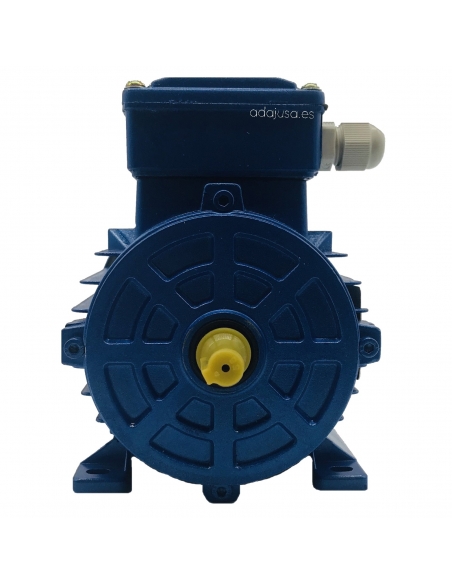

Three-phase motor 4Kw 5,5HP 230/400V 1000 rpm IE3 Flange B3 foot

Three-phase electric motor 4kW (5.5HP) asynchronous 230/400V 1000 rpm Flange B3 (foot). Aluminum housing, removable foot .
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55. IE3 energy-efficient motors.

characteristics:

• Manufacturer/Importer: Motorseg/ALREN
• Reference: ALH132M6AB34E3
• Motor type: asynchronous squirrel cage.
• Efficiency: IE3
• Voltage: 230/400 V. III.
• number of poles: 6.
• Speed: 1000 (960).
• Power: 4 Kw (5.5HP).
• Current: 16/8.90A
• Yield: 82.3%
• Continuous service: S1
• Degree of protection: IP55.
• Clamping type: Flange B3 (foot).
• Shaft diameter: Ø38mm
• Housing size 132 (132M).
• Color: Blue.
• Housing material: Aluminum.
• Weight: 52 Kg
• CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.
