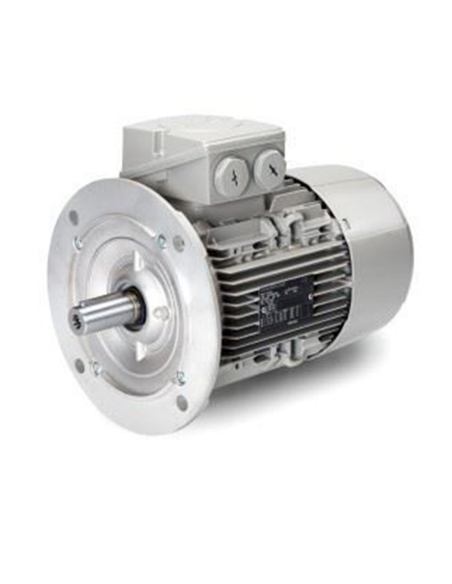

Three-phase motor 5.5kW-7.5HP 1000 rpm 400/690V Flange B5 IE3 - SIMOTICS FL INNOMOTICS

Three-phase electric motor 5.5kW (7.5CV) asynchronous 400/690Vac, 6-pole (1000 rpm in synchronism) with flange B5. INNOMOTICS SIMOTICS Flow series. This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts.... It can be connected directly to the mains and also by frequency converters.

The efficiency class is IE3 and allows a standard connection of the motor to the mains or be controlled by frequency converter, either by V/f control or vector control.
Manufactured with cast aluminum housing.

• Manufacturer: INNOMOTICS
• Series: SIMOTICS FL
• Part number: 1LE0323-1CC32-3FA4
• Motor type: squirrel cage asynchronous
• Voltage: 400/690 V. III. 50/60 Hz
• Power: 5.5 kW (7.5 HP)
• Nominal torque: 54.7 Nm
• Nominal current: 11,9A at 400Vac
• Maximum starting current: 6.5A at 400Vac
• Power factor: 0.76
• Number of poles: 6
• Rotation speedrated speed: 960rpm
• Energy rating: IE3
• Degree of protection: IP55
• Type of fastening: B5 flange
• Shaft diameter: Ø38mm
• Diameter of the flange: Ø300mm
• Case size:132M
• Flange PAM: 300/38
• Color: Grey
• Housing material: Aluminium
• Weight : 71kg
• CE Marked

1) Measured through the bolt heads
2) This dimension is assigned in DIN EN 50347 to the indicated frame size
1) The size of flange LA refers to the thickness at the mounting hole of the flange



For more information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
