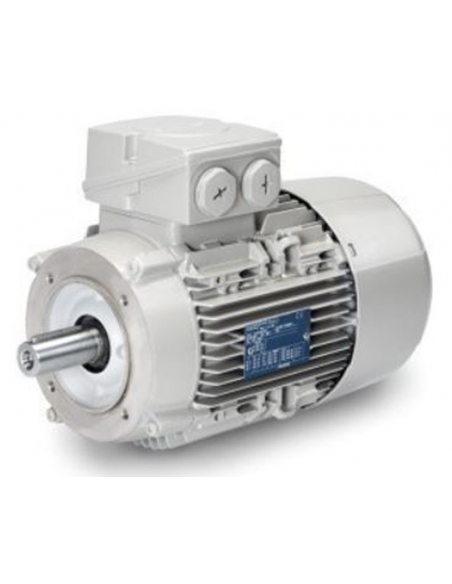

Three-phase motor 0.75Kw/1CV 1500 rpm Flange B14 - IE2 - IE3 - Siemens
Three-phase motor 0.75Kw/1CV 1500 rpm Flange B14 - IE2 - IE3 - Siemens

Three-phase motor 0.75Kw-1HP 1500 rpm Flange B14 IE3 - INNOMOTICS

Shipping time: 2-3 days
€473.75 Tax included

394.79 tax excl.

E10030DB32KA4

Three-phase electric motor 0,75kW (1CV) asynchronous 230/400Vac. 4 Poles 1500 rpm B14 flange. Energy rating IE3.

Manufactured by INNOMOTICS, series SIMOTICS GP in aluminum.


Ref: 1LE1003-0DB3-2KA4.

INNOMOTICS

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 0.75kW (1CV) asynchronous 230/400V 1500 rpm B14 flange, aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

fEATURES:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Part number: 1LE1003-0DB3-2KA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230/400 V. III. 50/60 Hz.
  • Power: 0.75 Kw (1 HP).
  • Current: 1.79/3.10A.
  • number of poles: 4.
  • Rpm: 1500(1400).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B14 flange.
  • shaft diameter: Ø19mm
  • diameter of flange: Ø120mm
  • Case size 80.
  • Color: Gray.
  • Housing materialweight: : Aluminum.
  • Weight: 9 Kg.
  • CE Marked.

Material for professional use, install in compliance with current regulations at the place of installation.
