Three-phase motor 0.25Kw 0.33HP 230/400V 1500 rpm Flange B3 foot

€86.19 Tax included

€71.23 tax excl.

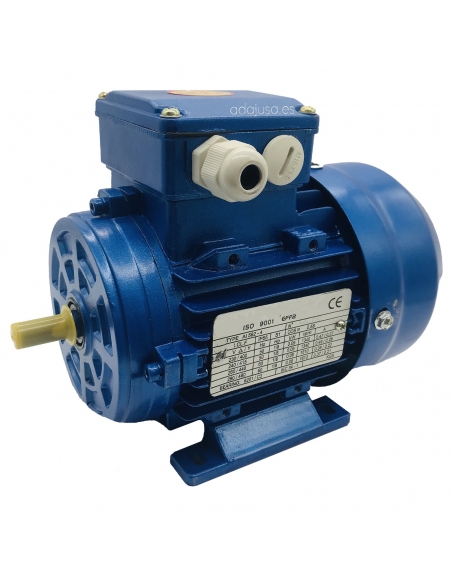

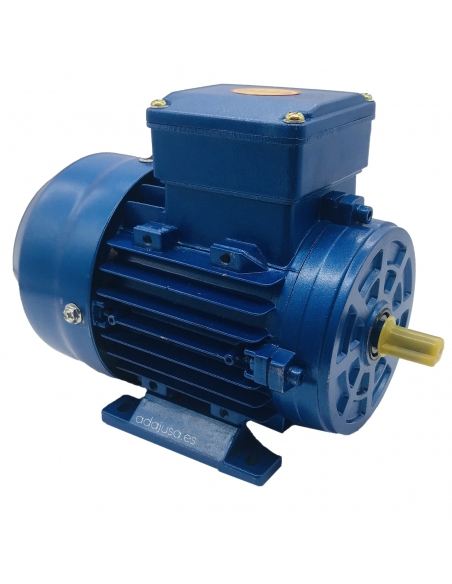

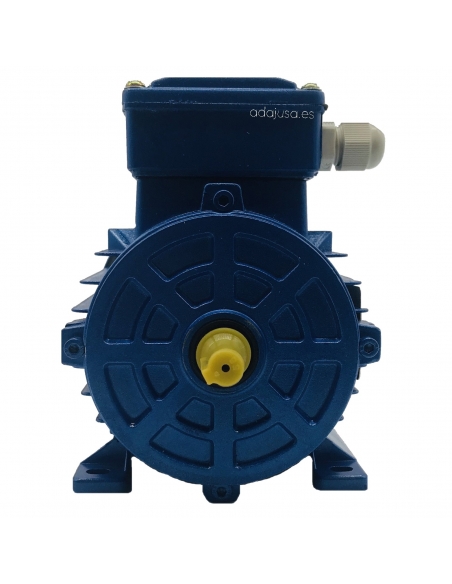

Three-phase electric motor 0.25kW (0.33HP) 230/400Vac., 1500 rpm (4 Pole), Flange B3 foot, aluminum housing.

  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 14mm.
  • Power: 0.25Kw - 0.33hp.
  • Size: 71.
  • Energy efficiency: IE1.

No queries yet, leave the first!


Three-phase electric motor 0.25kW (0.33hp) 230/400Vac 1500 rpm Flange B3 (foot). Made of aluminum casting, removable foot .
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-71M1-4 B3
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 4 Poles.
  • Revolutions: 1500 (1360) rpm.
  • Power: 0.25 Kw (0.33HP).
  • Intensity: 1.44/0.83 A.
  • Yield: 50%.
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft diameter: Ø14mm.
  • Housing size 71 (711).
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 5,6 Kg.
  • CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.



Tabla dimensiones motores brida B3
To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
