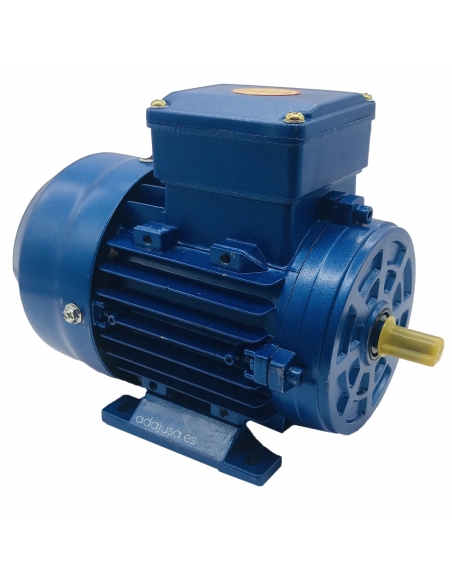

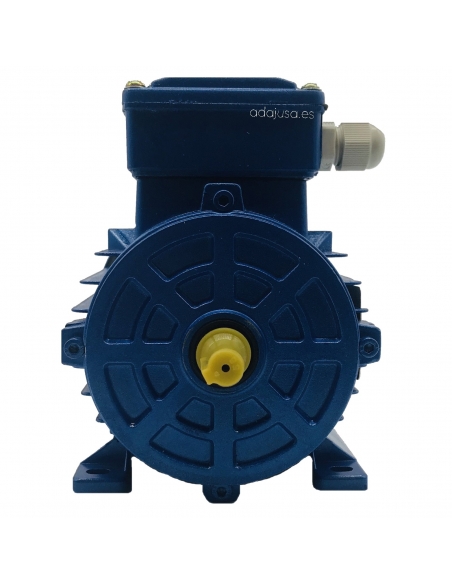

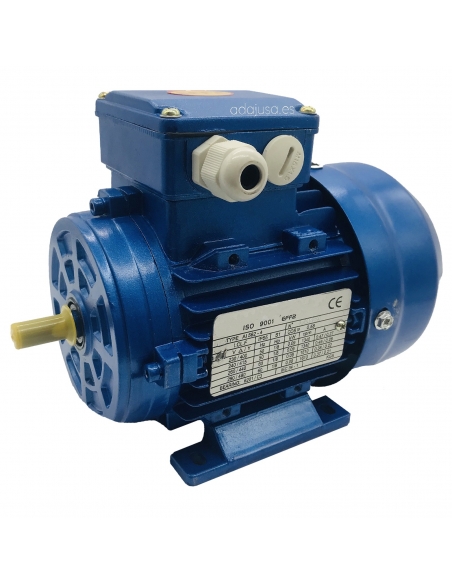

Three-phase motor 3Kw 4CV 230/400V 1500 rpm IE1 Flange B3 foot

Three-phase motor 3Kw 4HP 230/400V 1500 rpm IE1 Flange B3 foot

€236.29 Tax included

€196.91 tax excl.

SS100L24B34E1

Three-phase electric motor 3kW (4HP) 230/400V 1500 rpm (4 Poles) Flange B3 foot, aluminum housing. Manufactured under European IEC regulations.

Reference: SS100L24B34E1
Voltage: 230/400Vac 50/60Hz.
Number of poles: 4.
Revolutions: 1500 rpm.
Flange: B3 foot.
Shaft diameter: 28mm.
Power: 3Kw - 4HP.
Size: 100.
Energy efficiency: IE1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product

Privacy

Shipments

Returns

Three-phase electric motor 3kW (4HP) 230/400V 1500 rpm Flange B3 (foot). Made of aluminum casting, removable foot .
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

Manufacturer/Importer: Motorseg
Reference: SS100L24B34E1
Motor type: asynchronous squirrel cage.
Efficiency: IE1
Voltage: 230/400 V. III. 50/60 Hz.
Number of poles: 4.
Revolutions: 1500 (1430).
Power: 3 Kw (4 hp).
Intensity: 11.7/6.8 A.
Yield: 82.5%
Continuous service: S1.
Degree of protection: IP55.
Clamping type: Flange B3 foot
Shaft diameter: Ø28mm
Housing size 100 (100L2).
Color: Blue.
Housing material: Aluminum.
Weight: 24,8 Kg.
CE marking.

For more information, other powers or executions consult.

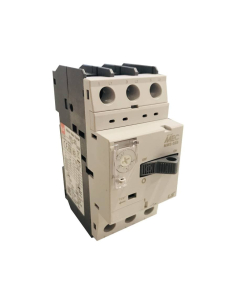

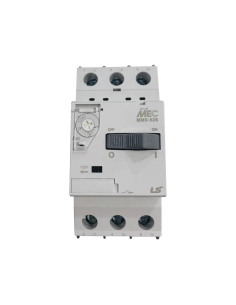

As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla de dimensiones motores electricos B3

To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.

Technical information motors

Technical information on electric motors, dimensions and three-phase and three-phase connections single-phase

Download (1.21MB)

Engine-technical-data-sheet

Technical data sheet three-phase motors

Download (1.82MB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)

Questions

Question

¿Esta referencia tiene una brida B14? Fabricante/Importador: Motorseg
Referencia: SS100L24B34E1
Tipo de motor: asíncrono jaula de ardilla.
Eficiencia: IE1
Tensión: 230/400 V. III. 50/60 Hz.
Número de polos: 4.
Revoluciones: 1500 (1430).
Potencia: 3 Kw (4 CV).
Intensidad: 11,7/6,8 A.
Rendimiento: 82,5%
Servicio continuo: S1.
Grado de protección: IP55.
Tipo sujeción: Brida B3 Patas
Diámetro del eje: Ø28mm
Carcasa tamaño 100 (100L2).
Color: Azul.
Material de la carcasa: Aluminio.
Peso: 24,8 Kg.
Marcado CE.

Answer

Estimado cliente

Si esta es:

https://adajusa.es/es/motores-electricos-trifasicos-1500-rpm-brida-b14-carcasa-aluminio/843-motor-trifasico-3kw-4cv-230400v-1500-rpm-brida-b14-8435532808435.html

Saludos
Adajusa

Fernando Boned Izuel on 11/21/2025 09:46:50

Question

tengo que sustituir un motor de 3kw 2 polos tipo YT100L2

Answer

Buenos días,

Con los datos que usted proporciona, llegamos a entender, la potencia, las revoluciones, 2 polos, que equivalen a 3000rpm y el tamaño de la carcasa (100).

Por la ficha del producto desde el que ha sido enviada la consulta, es un B3 (patas) y trifásico.

Si todo lo anterior es correcto, lo puede usted encontrar en el siguient enlace:

https://adajusa.es/motorehttps://adajusa.es/motores-electricos-trifasicos-3000-rpm-brida-b3-patas-car-aluminio/motor-trifasico-3kw-4cv-230-400v-3000-rpm-brida-b3-patas-carcasa-aluminio.htmls-electricos-trifasicos-3000-rpm-brida-b3-patas-car-aluminio/motor-trifasico-3kw-4cv-230-400v-3000-rpm-brida-b3-patas-carcasa-aluminio.html

alfredo on 05/08/2018 19:49:40
