Three-phase motor 5.5Kw/7.5CV 1500 rpm Flange B3 - IE2 - IE3 - Siemens
Three-phase motor 5.5Kw/7.5CV 1500 rpm Flange B3 - IE2 - IE3 - Siemens

Three-phase motor 5.5Kw-7.5CV 1500 rpm 400/690V B3 IE3 Flange - INNOMOTICS

Shipping time: 2-3 days
€1,189.33 Tax included

€991.11 tax excl.

E10031CB04AA4

Three-phase electric motor 5.5kW (7.5CV) asynchronous 400/690Vac. 4 Poles 1500 rpm Flange B3 (Legs). Energy rating IE3.

Manufactured by INNOMOTICS, series SIMOTICS GP in aluminum.


Part number: 1LE1003-1CB0-4AA4.

INNOMOTICS

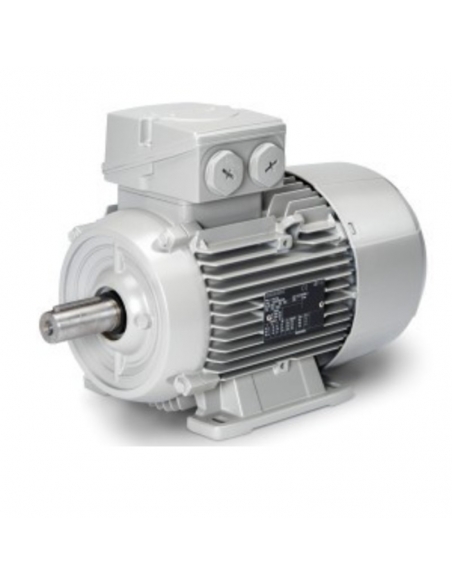

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 5.5kW (7.5CV) asynchronous 400/690V 1500 rpm Flange B3 (Legs), aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

fEATURES:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Part number: 1LE1003-1CB0-4AA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 400/690Vac V.III 50/60Hz.
  • Power: 5.5 Kw (7.5 HP).
  • Current: 11,3/19,57A.
  • number of poles: 4.
  • Rpm: 1500(1400).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B3 flange (Legs).
  • shaft diameter: Ø38mm
  • Case size: 132.
  • Color: Gray.
  • Housing materialaluminum.
  • Weight: 39 Kg.
  • CE marked.

Material for professional use, install in compliance with current regulations at the place of installation.
