Three-phase motor 4Kw/5.5CV 3000 rpm Flange B14 - IE3 - Siemens FL

Three-phase motor 4kW-5.5HP 3000 rpm 400/690V Flange B14 IE3 - SIMOTICS FL INNOMOTICS

Name: Three-phase motor 4kW-5.5HP 3000 rpm 400/690V Flange B14 IE3 - SIMOTICS FL INNOMOTICS
Brand: INNOMOTICS
SKU: 03231BA23KA4
Price: 624.40 EUR
Availability: BackOrder

€624.40 Tax included

€520.33 tax excl.

03231BA23KA4

Three-phase electric motor 4kW (5.5CV) asynchronous 400/690Vac, 2 poles (3000 rpm) with flange B14. Energy rating IE3. SIMOTICS Flow series from INNOMOTICS. This motor series is ideal for standard applications, such as pumps, fans, conveyor belts.... It can be connected directly to the mains and also by means of frequency converters.

Manufactured by INNOMOTICS, SIMOTICS FL series in aluminum.

Part number: 1LE0323-1BA2-3KA4

INNOMOTICS

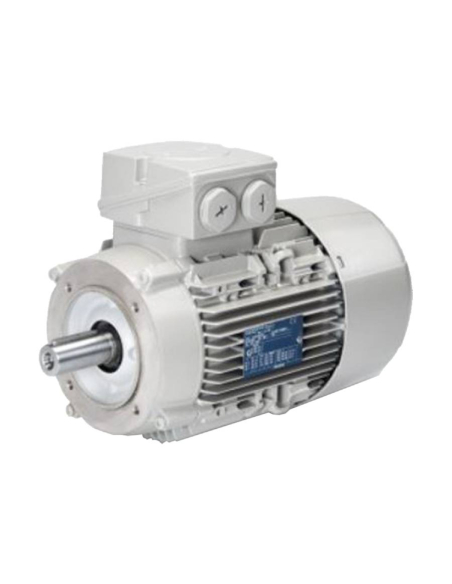

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase electric motor 4kW (5.5CV) asynchronous 400/690Vac, 2-pole (3000 rpm in synchronism) with flange B14. INNOMOTICS SIMOTICS Flow series. This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts.... It can be connected directly to the mains and also by frequency converters.

The efficiency class is IE3 and allows a standard connection of the motor to the mains or to be controlled by frequency converter, either by V/f control or vector control.
Manufactured with cast aluminum housing.

Features

Manufacturer: INNOMOTICS
Series: SIMOTICS FL
Part number: 1LE0323-1BA2-3KA4
Motor type: squirrel cage asynchronous
Voltage: 400/690 V. III. 50/60 Hz
Power: 4 kW (5.5 HP)
Nominal torque: 13.1 Nm
Rated current: 7,3A at 400Vac
Maximum starting current: 7.8A at 400Vac
Power factor: 0.90
Number of poles: 2
Rotation speedcrpm
Energy rating: IE3
Degree of protection: IP55
Type of fastening: B14 flange
Shaft diameter: Ø28mm
Diameter of flange: Ø160mm
Case size 112M
Flange PAM: 160/28
Color: Grey
Housing materialcolor: Aluminum
Weight: 36kg
CE Marked

Dimensions

1) Measured through the bolt heads
2) This dimension is assigned in DIN EN 50347 to the indicated frame size

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
