Three-phase motor 18.5Kw/25CV 3000 rpm Flange B3 - IE2 - IE3 - Siemens
Three-phase motor 18.5Kw/25CV 3000 rpm Flange B3 - IE2 - IE3 - Siemens

Three-phase motor 18.5Kw-25CV 3000 rpm Flange B3 IE3 - INNOMOTICS

Shipping time: 2-3 days
€3,007.37 Tax included

2506.14 tax excl.

E10031DA44AA4

Three-phase electric motor 18,5kW (25CV) asynchronous 400/690Vac. 2 Poles 3000 rpm Flange B3 (Legs). Energy rating IE3.

Manufactured by INNOMOTICS, series SIMOTICS GP in aluminum.

Part number: 1LE1003-1DA4-4AA4.

INNOMOTICS

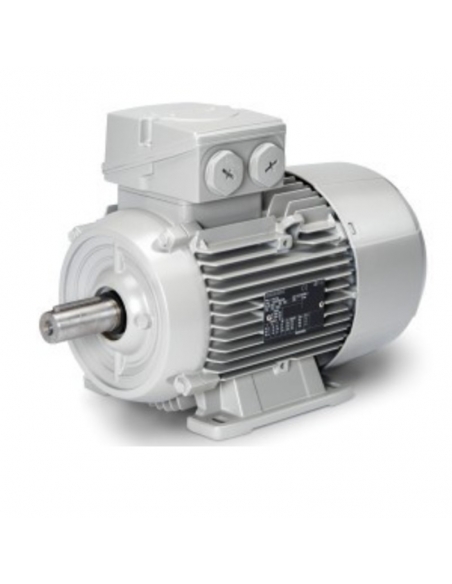

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 18,5kW (25CV) asynchronous 400/690V 3000 rpm Flange B3 (Legs), aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

fEATURES:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Part number: 1LE1003-1DA4-4AA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 400/690 V. III. 50/60 Hz.
  • Power: 18,5Kw 25CV.
  • Current: 33,5/58,02A.
  • number of poles: 2.
  • Rpm: 3000 (2800).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B3 flange (Legs).
  • shaft diameter: Ø42mm
  • Case size 160L.
  • Color: Gray.
  • Housing materialaluminum.
  • Weight: 60 Kg.
  • CE marked.

Material for professional use, install in compliance with current regulations at the place of installation.
